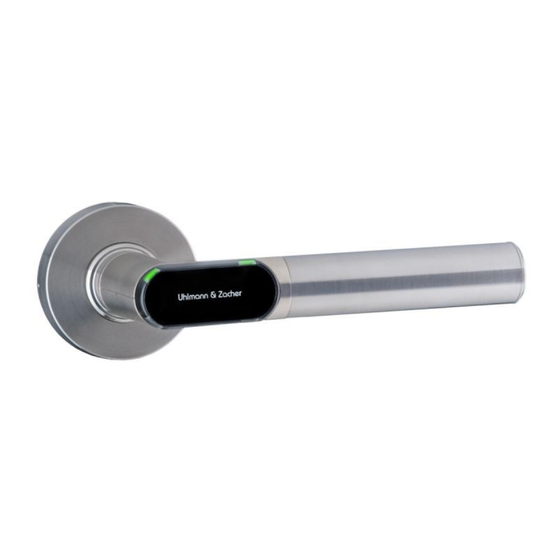

Clex private electronic door handle in rosette fitting
Hide thumbs Also See for CX2172:

Advertisement

Quick Links

CX2172
Clex private
Electronic door handle
in rosette fitting
Operating and
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX2172 and is the answer not in the manual?

Questions and answers

Summary of Contents for uhlmann & zacher CX2172

  • Page 1 CX2172 Clex private Electronic door handle in rosette fitting Operating and Assembly Manual...
  • Page 2 CX2172 ABLE OF CONTENTS Imprint Operating and assembly manual (english) Electronic door handle CX2172 Document number: 070A Version: 1.24 Status as on: 24.04.2017 Manufacturer Uhlmann & Zacher GmbH Gutenbergstraße 2–4 97297 Waldbüttelbrunn Germany Phone: +49 931 40672-0 E-Mail: contact@UundZ.de http://www.UundZ.de This operating and assembly manual is copyright protected.
  • Page 3: Table Of Contents

    CX2172 ABLE OF CONTENTS Table of contents About this document ................ 4 Warnings .................... 4 Symbols ....................4 Safety .................... 5 Proper use ..................5 Improper use ..................5 General safety instructions ..............5 Product description ................6 Functional description ................6 Design ....................
  • Page 4 CX2172 ABLE OF CONTENTS 10.1 Door handle is not reaching at-rest position ......... 30 Glossary..................31...
  • Page 5: About This Document

    About this document This operating and assembly manual describes the Clex private electronic door handle in rosette fitting (in short: CX2172). It is part of the product and contains important information that is necessary for proper operation and maintenance. This operating and assembly manual is valid for all versions of CX2172 and is intended for technicians, who are responsible for assembling and disassembling, as well as for end customers.
  • Page 6: Safety

    The different versions allow it to be used in all the common doors such as wood, steel and aluminum doors as well as doors with narrow frames having a backset of more than 30 mm. The CX2172 can be used in interior as well as exterior areas (depending on the product version). Improper use...
  • Page 7: Product Description

    RODUCT DESCRIPTION Product description Functional description The electronic door handle CX2172 is a product in the Clex private system. The reading unit, the communication electronics, the mechanical system and power supply, are integrated within the door handle. Different transponder carriers can be used as key in the CX2172, for example, ISO card or key fob.
  • Page 8: Design

    CX2172 RODUCT DESCRIPTION 3.1.2 Event log The last 128 events of the door handle are stored in the event log. Event logging can be enabled or disabled for each door handle individually, to be able to comply with specific data privacy guidelines.
  • Page 9: Versions

    CX2172 RODUCT DESCRIPTION 3.2.2 Two-sided electronic authorization Reading unit Rosette cover Electronic door handle Electronic door handle (inside) (outside) Square pin Battery Adapter sleeve (only for 7-mm Gripping sleeve -square pin) Mounting screw Grub screw for gripping sleeve Versions Different handle shapes and versions are available: ...
  • Page 10: Scope Of Supply

    CX2172 RODUCT DESCRIPTION Scope of supply Electronic door handle including  rosette  Square  Sealing ring (only for outdoor version) Electronic door handle (only for two-sided electronic authorization) including  rosette  Sealing ring (only for outdoor version) Drilling template...
  • Page 11: Technical Data

    CX2172 RODUCT DESCRIPTION Technical data 3.5.1 General technical data Description Value Diameter of rosette 55 mm Swivel angle 45° Transponder MIFARE ® Classic MIFARE ® DESFire ® active transponder (868 MHz)) Power supply CR123A 3V battery (1 piece) Battery life up to 150,000 operations or 10.0 years...
  • Page 12 CX2172 RODUCT DESCRIPTION 3.5.3 Dimensions L-shape electronic side L-shape mechanical side...
  • Page 13: Standards

    CX2172 RODUCT DESCRIPTION U-shape electronic side U-shape mechanical side Standards The electronic door handle CX2172 meets the following standards:  EN 300 220 V2.4.1  EN 302 291 V1.1.1  EN 301 489-1 V1.9.2  EN 55022:2010  EN 61000-6-1:2007 ...
  • Page 14: Management Accessories

    CX2172 RODUCT DESCRIPTION Management accessories 3.7.1 CX2530 Keyng Using the CX2530 Keyng administration software, it is possible to manage the Clex private electronic locking system conveniently from the PC. In contrast to the well-known learning - clearing system, the software provides a wide range of functions.
  • Page 15: Assembly

    Carry out the assembly necessarily with the door open.  Ensure that the latches or seals fitted to the door do not hinder the proper operation of the CX2172.  Ensure that the door handle does not protrude and prevent the door from swinging freely.
  • Page 16 CX2172 SSEMBLY Insert adapter sleeve in square pin fixture (if required)   Insert square pin completely on fixing pin and in square pin fixture Insert spiral pin in square pin  4.2.2 One-sided electronic authorization  Insert the square pin of the electronic door handle into the square nut of the lock.
  • Page 17 CX2172 SSEMBLY Insert the handle holder of the mechanical door handle from the other side  and screw it along with the electronic door handle through the door panel. Please use the supplied mounting screws.  Insert the mechanical door handle keeping it in a horizontal position. For door handles pointing to the right, tighten the rosette towards the left, guide it over the handle holder and engage the bayonet lock.
  • Page 18 CX2172 SSEMBLY 4.2.3 Two-sided electronic authorization  Insert the square pin of the outer electronic door handle into the square nut of the lock.  Place the drilling template on the square pin, align horizontally and center punch the hole markings.
  • Page 19 CX2172 SSEMBLY Retract the rosette cover of the inner electronic door handle to the maximum  extent and screw both the electronic door handles together through the door panel. Please use the supplied mounting screws. Place the rosette cover. ...
  • Page 20 CX2172 SSEMBLY 4.2.4 Assembling the key rosette  Place the drilling template, align horizontally and center punch the hole marks. Drill holes of diameter 7 - 7.5 mm at the marked positions. Do not drill into  or through the lock casing.
  • Page 21: Commissioning

    CX2172 OMMISSIONING Commissioning Generally there 2 ways to manage a Clex private locking system:  Administration as learning – clearing system  Administration with the CX2530 Keyng software Teach-in the service key When delivered the electronic door handle does not know its service key. To teach-in the service key the door handle has to be activated, for example by holding a key in front of the reading unit.
  • Page 22: Administration With Keyng Cx2530

    CX2172 OMMISSIONING Administration with Keyng CX2530 The CX2530 Keyng software offers a convenient way to manage the electronic locking system. For additional information, refer to the documentation on CX2530 Keyng. Changing the settings The following settings can be changed using the CX2530 Keyng software: ...
  • Page 23: Operation

    CX2172 PERATION Operation The electronic door handle operates only the latch. Hence, it should be ensured that the locking cylinder of the door is unlocked or the door is not locked in some other manner. Otherwise, the door cannot be opened even after holding up an authorized key.
  • Page 24: Indications

    CX2172 PERATION Indications Function Signal (audible and visible) and explanation Sleep mode No audible or visible signal Start of service ● ▬ mode Long audible signal followed by a short audible signal End of service ● ▬ mode Short audible signal followed by a long audible signal Key learned ●...
  • Page 25: Cleaning And Maintenance

    CX2172 LEANING AND MAINTENANCE Cleaning and maintenance Cleaning Clean the door handle only with a commercially available household  cleaning agent and a damp cloth. Do not use any abrasive or caustic cleaning agents.  Maintenance 7.2.1 Replacing the battery...
  • Page 26 CX2172 LEANING AND MAINTENANCE When administrating the locking system with the Keyng software check the  time on the door handle using CX2530 Keyng and adjust if necessary. 7.2.2 Replacing the sealing ring ATTENTION Damage to the sealing ring caused by improper handling ...
  • Page 27: Faults During Operation

    CX2172 AULTS DURING OPERATION Faults during operation Fault indications Function Audible signal Explanation Memory fault / 5 long audible ▬ ▬ ▬ ▬ ▬ ● configuration fault signals, 1 brief audible signal Engaging fault 5 long audible ▬ ▬ ▬ ▬ ▬ ● ●...
  • Page 28: Disassembly And Disposal

    CX2172 ISASSEMBLY AND DISPOSAL Disassembly and disposal Disassembly 9.1.1 One-sided electronic authorization Unscrew the locking screw at the bottom of the rosette.  Loosen the bajonet lock. To do this, tighten the rosette to the left for door  handles pointing to the right and remove the mechanical door handle from the square pin.
  • Page 29 CX2172 ISASSEMBLY AND DISPOSAL 9.1.2 Two-sided electronic authorization Lift the rosette cover on the inner electronic door handle using a small  screwdriver and pull it back as far as possible.  Loosen the mounting screws. Remove the inner electronic door handle from...
  • Page 30: Disposal

    CX2172 ISASSEMBLY AND DISPOSAL 9.1.3 Disassembly of the square pin In the case the edge length of the square pin does not match the lock or to shorten the square pin it can be necessary to disassemble the square pin.
  • Page 31: Faq

    CX2172 10.1 Door handle is not reaching at-rest position If the electronic door handle is not reaching its horizontal at-rest position by itself, the reason is possibly the misalignment of the lock. This can be compensated by widening the drill holes to a diameter of 8 to 8.5 mm. The door handle can now...
  • Page 32 CX2172 LOSSARY Glossary Definition Description Intrusion detection system Keyng Software for managing a locking system MIFARE ® Technology for contactless transfer of identification data Data carrier that contains the authorization information. This can, for example, be an ISO card or a chip. The key is sometimes also known as transponder.
