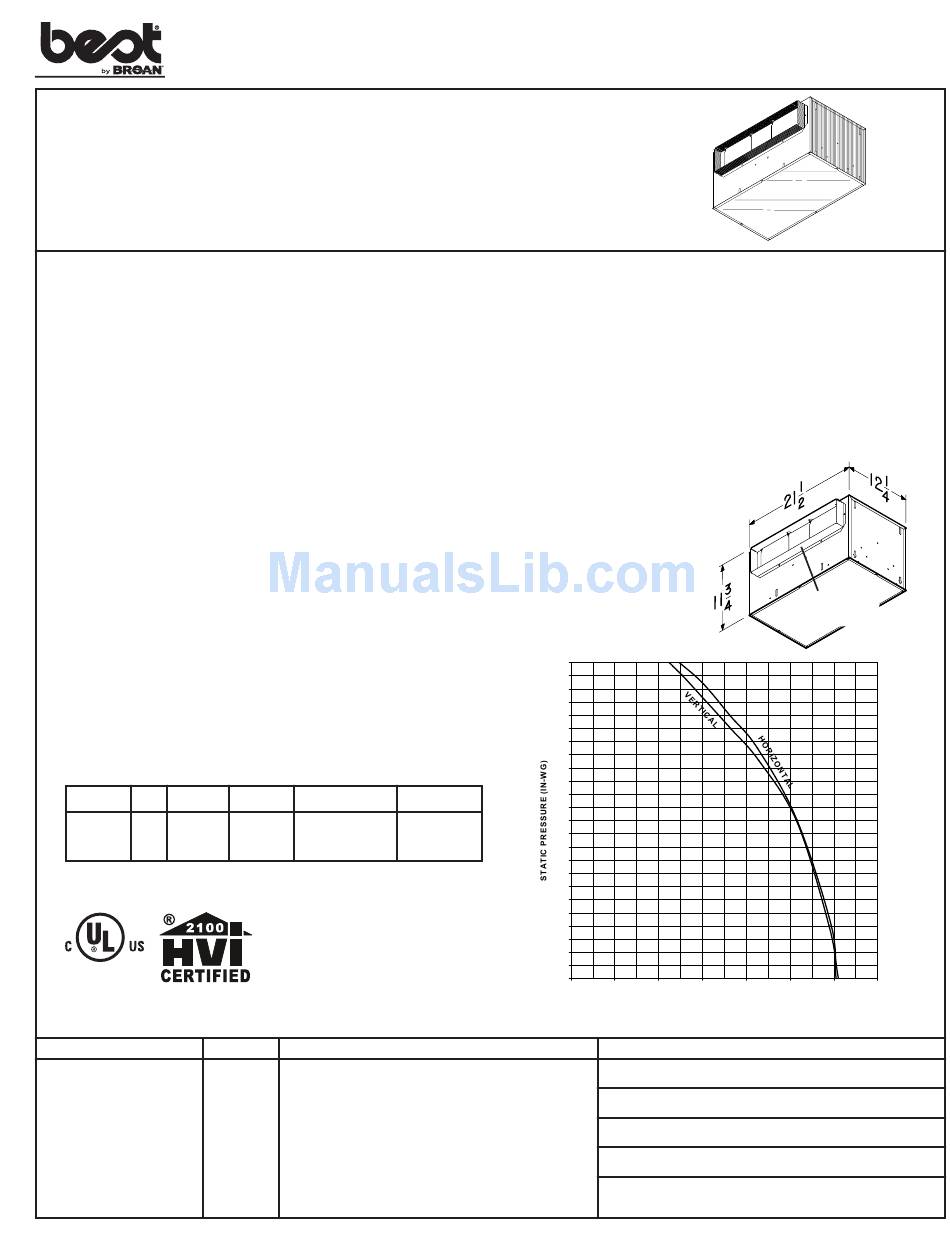

Best ILB6 Specification Sheet

IN-LINE BLOwER
ILb6
MODEL
Powerful yet quiet blower - exhausts the cooking area
from a remote location.

FEATURES

BLOWER:
• Low RPM for quiet operation
• Resilient anti-vibration mounts
• Dynamically-balanced, galvanized steel, centrifugal
blower wheels for quiet, efficient performance
• Permanently lubricated, thermally protected motor
• Plug-in motor rated at 120 VAC
• Designed for continuous operation
HOUSING:
• Rugged galvanized steel
• 8-position mounting brackets for easy installation and
greater adaptability to various mounting requirements
• Automatic backdraft damper located within exhaust
duct connector
• Factory-shipped in horizontal discharge position
• May be converted to vertical discharge
• Suitable for kitchen installations
ACCESSORIES INCLUDED:
• 4½-inch x 18½-inch integrated duct connectors
• Two (2) 4½-inch x 18½-inch to 10-inch-round
transitions
• Hanger kit - for additional installation flexibility
• Range hood rough-in kit with integrated 10-inch duct
connector

SPECIFICATIONS

Volts Hz Amps
120 60 2.9 600 (V)
600 (H)
* Performance ratings include the addition of a 10" round
transition on inlet and outlet.

REFERENCE

QTY.
CFM Duct weight
4½"x18½" * 48.0 lbs.
HVI-2100 certIfIed ratIngs comply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated at 0.1
in. static pressure, based on tests conducted in aMca's state-
of-the-art test laboratory. sones are a measure of humanly-
perceived loudness, based on laboratory measurements.
Best by Broan, P.O. Box 140, Hartford, Wisconsin 53027
REMARKS
SPECIFICATION SHEET

TYPICAL SPECIFICATION

In-Line Blower shall be Best by Broan Model ILB6.
Unit shall have galvanized steel housing. Housing to have adjustable
mounting brackets.
Blower to include hanger kit, two (2) 4½-inch x 18½-inch to 10-inch-
round transitions, 4½-inch x 18½-inch integrated duct connectors, and
a range hood rough-in kit with integrated 10-inch duct connector.
Automatic backdraft damper to be located within exhaust duct
connector. Duct connectors, blower assembly and wiring plate shall
be adjustable for either horizontal or vertical installation.
Blower unit shall be removable
from housing and will have
galvanized steel, centrifugal-
type blower wheels. Motor to
be permanently lubricated and
mounted with resilient anti-
vibration mounts.
Air delivery shall be no less than
listed. All air ratings shall be
certified by HVI. Unit to be UL
and cUL listed.
1.2
1.1
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0 100 200
AIR FLOW RATE (CFM)
Project
Location
Architect
Engineer
Contractor
Submitted by
4½" x 18½"
HLB6
DUCT CONNECTOR
300 400 500 600 700
Date
70E 99043708D
