Model EB12

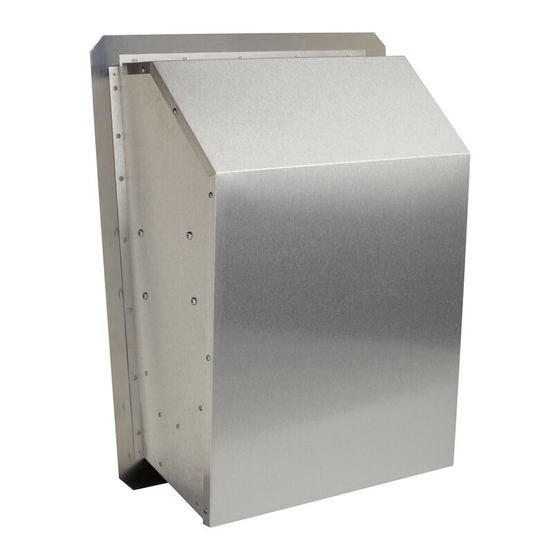

EXTERIOR MOUNTED
BLOWER
For use with compatible Best by Broan Outdoor
Range Hoods.
See hood manual for suitability.
BEST BY BROAN, P.O. BOX 140 HARTFORD, WI 53027

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB12 and is the answer not in the manual?

Questions and answers

Jim Winer
February 13, 2025

Is there a way to access the PDF and download it without using whatever inscrutable ridiculous cumbersom PDF download system this information is trapped in? Can you just email it to me? If not, I'll search for another manufacturer.

Summary of Contents for Best EB12

  • Page 1 Model EB12 EXTERIOR MOUNTED BLOWER For use with compatible Best by Broan Outdoor Range Hoods. See hood manual for suitability. BEST BY BROAN, P.O. BOX 140 HARTFORD, WI 53027...
  • Page 2: Specifications

    4. Electrical circuit, including speed control, (if used), must be rated 6 AMPS mini- mum. INSTALLER: Leave This Manual Heating, HOMEOWNER: Use And Care AMPS DUCT SIZE 1200 10 " DIA. MODEL EB12 EXTERIOR BLOWER 10" ROUND DUCT SOFFIT ROUGH-IN WALL PLATE HOOD CANOPY 10"...
  • Page 3: Prepare The Installation Location

    PREPARE THE INSTALLATION LOCATION ROOF INSTALLATIONS 1. Locate the blower on the rear slope of the roof. Place it in a location to minimize duct run. The location should be free of obstacles (T.V. leads, electrical lines, etc.). If the blower top is level with the roof peak, it will not be seen from the street.
  • Page 4 INSTALL THE BLOWER ROOF INSTALLATIONS 1. Remove the cover and screws. 2. Attach an appropriate U.L. approved cable connector in the hole at the rear of the wiring box. 3. Remove roofing nails from shingles around the TOP and SIDES of the cutout area only.Carefully lift the shingles to allow the back flashing sheet on the blower housing to fit under them.
  • Page 5: Warranty

    WARRANTY BROAN ONE YEAR LIMITED WARRANTY Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 6: Motor Lubrication

    Be careful not to bend or oth- erwise damage blower wheel. MOTOR LUBRICATION The motor is permanently lubri- cated. Do not oil or disassemble motor. SERVICE PARTS MODEL EB12 PART 98009429 99100532 98009430 98009497 99140145 98009486...
  • Page 7 Modelo EB12 VENTILADOR DE MONTAJE EXTERIOR Para el uso con las campanas exteriores compatibles de Best by Broan. Vea el manual de la campana para la conveniencia. BEST BY BROAN, P.O. Box 140, HARTFORD, WI 53027...
  • Page 8: Especificaciones

    6 AMPS mínimo. USUARIO: Uso y información sobre el cuidado AMPS TAMAÑO DUCTO 1200 25 cm de DIA. VENTILADOR EXTERIOR MODELO EB12 CONDUCTO REDONDO DE 10" (25,4 cm) PLAFÓN PLACA TOLDO DE LA CAMPANA...
  • Page 9 PREPARE EL ÁREA DE LA INSTALACION INSTALACIONES DE TECHO 1. Ubique el ventilador en la pendiente posterior del techo. Colóquelo en un área en la cual minimice la longitud del tramo de conductos. Esta área debe estar libre de obstáculos (cables de T.V., cables eléctricos, etc.).
  • Page 10 INSTALE DEL VENTILADOR INSTALACIONES DE TECHO 1. Quite la cubierta y los tornillos. 2. Coloque un conectador de cables apropiado, aprobado por U.L., en el orificio que se encuentra en la parte posterior de la caja de conexiones. 3. Quite los clavos solamente de las tejas que se encuentran en las partes SUPERIOR y LATERALES del área de corte.
  • Page 11 GARANTIA GARANTÍA BROAN LIMITADA POR UN AÑO Broan garantiza al consumidor comprador original de sus productos que dichos productos carecerán de defectos en materiales o en mano de obra por un período de un año a partir de la fecha original de compra. NO EXISTEN OTRAS GARANTÍAS, EXPRESAS O IMPLÍCITAS, INCLUYENDO, PERO NO LIMITADAS A, GARANTÍAS IMPLÍCITAS DE COMERCIALIZACIÓN O APTI- TUD PARA UN PROPÓSITO PARTICULAR.
  • Page 12: Uso Y Cuidado

    Tenga cuidado de no torcer o causar daño a los rodetes del ventilador. LUBRICACION DEL MOTOR El motor tiene lubricación permanente. No lo enaceite o desarme. PARTES DE SERVICIO MODELO EB12 CLAVE PARTE 98009429 Cubierta 99100532 Sello de espuma...
  • Page 13 Modèle EB12 VENTILATEUR À MONTAGE EXTÉRIEUR Pour utilisation avec les hottes exterieurs compatibles de Best by Broan. Voir le manuel de la hotte pour la convenance. BEST BY BROAN, P.O. Box 140, HARTFORD, WI 53027...
  • Page 14: Spécifications

    INSTALLATEUR: Donner ce manuel au PROPRIÉTAIRE DE LA MAISON: Information d’usage et d’entretien à la page 18. AMPÈRES DIMENSIONS DES CONDUITES 1200 VENTILATEUR EXTÉRIEUR MODÈLE EB12 CONDUIT ROND DE 10 po (25,4 cm) SOFFITE CAPOT JONCTION HOTTE 21 po (53,3 cm) OU 24 po (61 cm) propriétaire.
  • Page 15 PRÉPARATION DE L’INSTALLATION INSTALLATIONS SUR UN TOIT 1. Positionez le ventilateur sur la pente arrière du toit. Placez-le de manière à minimiser la longueur des conduits. L’emplacement doit être dépourvu d’obstacles (câble de télévision, fils électriques, etc.). si le dessus du ventilateur est à égalité avec le faîte du toit, il ne sera pas visible de la rue.
  • Page 16 INSTALLATION DU VENTILATEUR INSTALLATIONS SUR LE TOIT 1. Enlevez le couvercle et les vis. 2. Fixez un connecteur de câble adéquat portant l’homologation U.L. dans le trou arrière de las boîte de câblage. 3. Enlevez les clous à toiture des bardiaux entourant uniquement le HAUT et les CÔTÉS l’ouverture.
  • Page 17 GARANTIE LIMITÉE D´UN AN DE BROAN Broan garantit à l´acheteur consommateur original de ses produits qu´ils sont exempts de défauts dans les matières premières ou la main-d´oeuvre pour une période d´un an à compter de la date d´achat original. IL N´Y A PAS D´AUTRES GARANTIES, EXPRIMÉES OU IMPLICITES, INCLUANT LES MAIS NON PAS LIMITÉES AUX GARANTIES IMPLICITES POUR FIN DE COMMERCIALISATION ET DE CONVENANCE DANS UN EUT PARTICULIER.
  • Page 18: Usage Et Entretien

    LUBRIFICATION DU MOTEUR Le moteur est lubrifié en permanence. Ne pas graisser ni démonter le moteur. PIÈCES DE RECHANGE MODÈLE EB12 REPÈRE PIÈCE 98009429 99100532 98009430 98009497 99140145...
