Steca Elektronik Tarom MPPT 6000-M Setup Manual

Using the Aquion Aspen 48S battery with the Steca Tarom
MPPT 6000-M/-S and Tarom 4545-48 Charge Controllers
Latest update: 31.08.2016
Recommended Steca charge controller settings for the
Aquion Aspen 48S battery
The following settings have been selected through co-operation
between Steca Elektronik and Aquion Energy. They represent
recommended example values for cyclical applications as are typical in
many solar PV applications. These settings are applicable to the Aquion
Aspen 48S battery.
Make sure to always follow the requirements and guidelines from
the battery manufacturer and verify the settings with the data
sheet of your batteries before applying them. Please contact your
retailer in case of uncertainty. Read the Steca charge controller
manual before applying these settings.
The Steca Tarom MPPT 6000-M closely matches Aquion Energy's "Two-stage (Bulk &
Absorption)" charging method, which is the preferred charging method for the Aspen 48S
battery (consult Aquion Energy's "Aspen Battery Installation & Operation Manual" for more
details). The Tarom MPPT 6000-M is therefore the preferred solar charge controller for this
battery type with the following settings:

Battery type:

•
Main menu
o

Battery capacity:

•
Main menu
o

Maximum charging current :

•
Main menu
o

Charge voltage settings:

•
Main menu
o
It is strongly recommended to use the external temperature sensor Steca PA TS-S and to
•
activate it in the Tarom MPPT 6000-M:
Main menu
o
Steca Elektronik GmbH I Mammostraße 1 I 87700 Memmingen I Germany I www.steca.com
Tel +49 (0) 8331 8558-0 I Fax +49 (0) 8331 8558-132
Battery settings
Battery settings
Battery settings
Battery settings
Number of cells: 12
Cell voltage: 4.0 V
Charge voltage: 4.95 V
Charge activation: 4.65 V
This default value may be adjusted according to your requirements.
Charge Timer: 120 min.
Temperature range: Min. temperature -5°C, Max. temperature 40°C.
Battery settings
Battery type Li-Ion battery
Battery capacity 40 Ah
Current limit device
Li-Ion battery settings:
Bat. temperature sensor

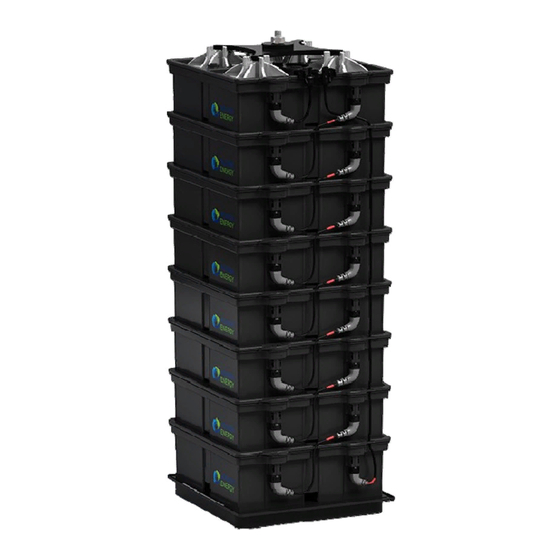

Aquion Aspen 48S battery
© Aquion Energy
20 A
External
Page 1 of 2
