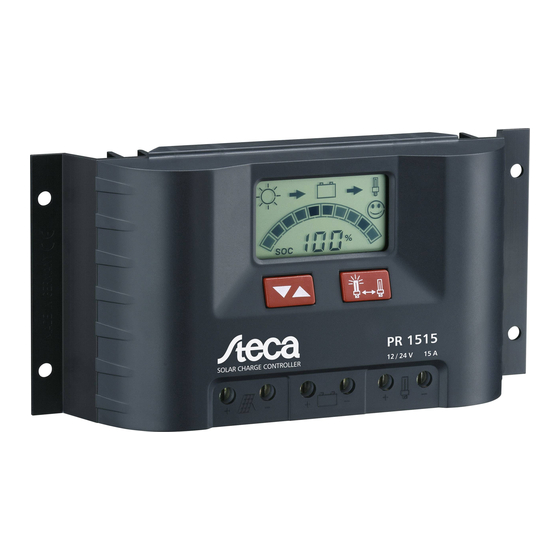

Steca Elektronik PR 1515 Manual

Manual for charging menu PR charge controller
In the additional menu it is possible to change charging, disconnecting and
Reconnecting Values.
The menu can be opened up to 5min after connecting batteries. Here you can see
how it works.
PR menu charging voltage.doc

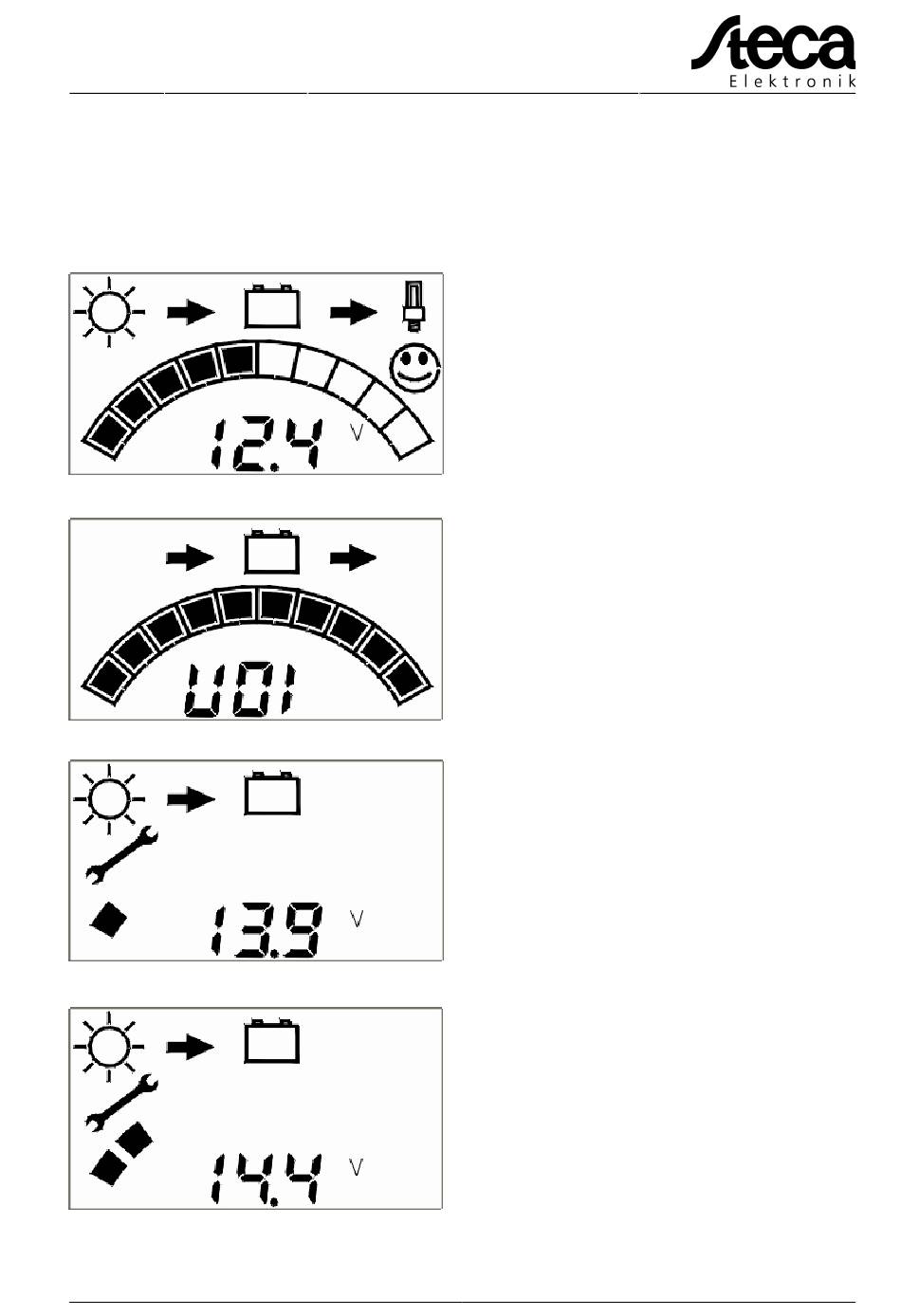

Standard display

If you press the left key for 3s standard
menu will be opened.
You can see the operating mode.
If you press both keys for 3s the charging
menu will be opened.
The first bar on the left side shows the
value for float-charging.
With the right key you can select it and
with the left key you can change it.
After pressing the left key again the second
bar and the value for boost-charging will
appear. With the right key you can select it
and with the left key you can change it.
Speicherdatum: 02.08.2012 Seite 1 von 2
