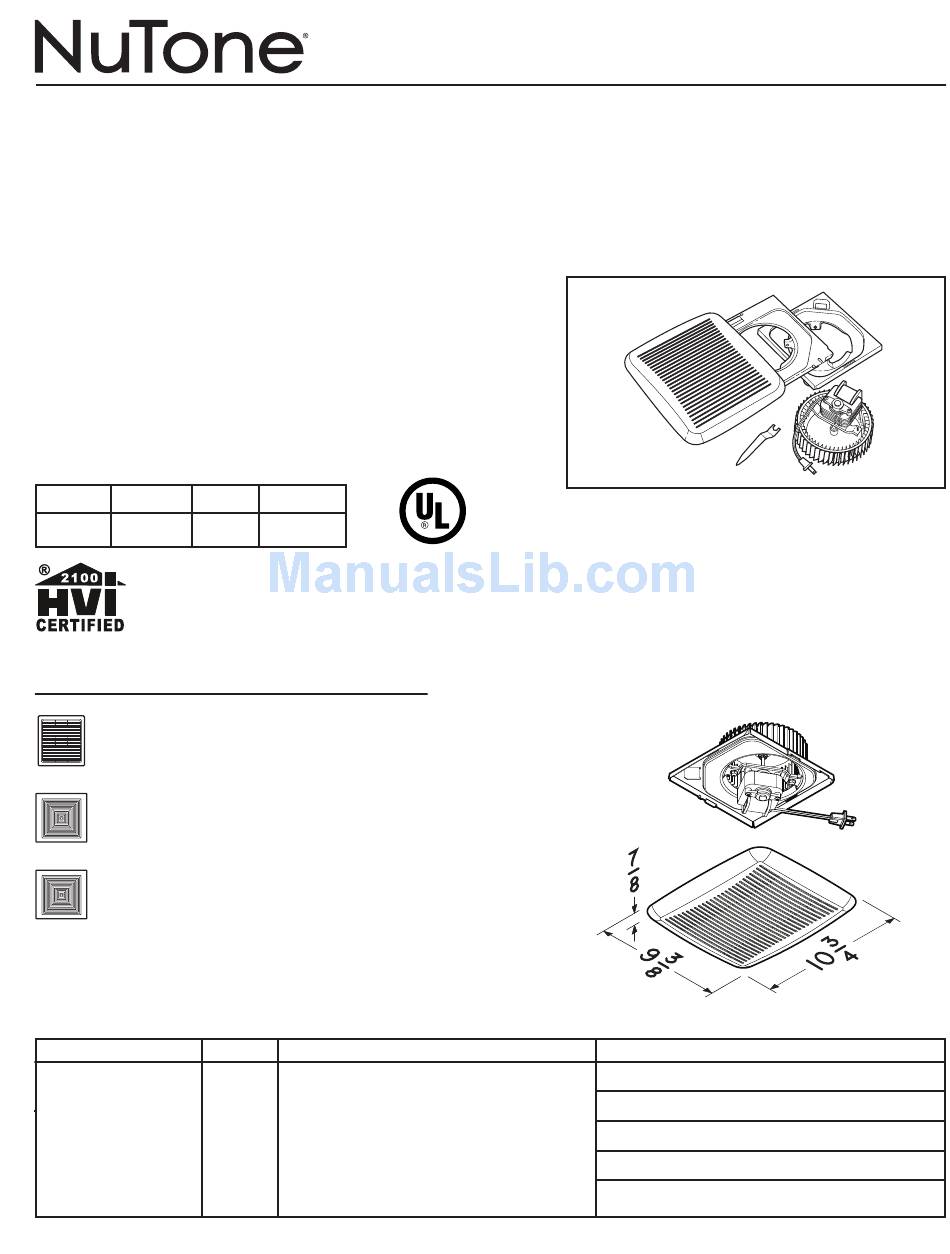

NuTone 690NT Architectural & Engineering Specifications

DESCRIPTION
Reduces the sound level of your existing bath fan by up to 50% while increasing
air movement by up to 20%. No rewiring or new ductwork required.
GRILLE:
•
White polymeric - blends well with any decor
•
Torsion spring grille mounting - no tools required
FAN ASSEMBLY:
•
Plug-in, permanently lubricated motor
•
Polymeric blower wheel
•
Galvanized steel motor bracket and motor plate
•
Fits into your existing bath fan housing
•
Two motor plate sizes included - to accomodate a variety of economy fan
models
ACCESSORIES:
•
Wrench and hardware included - no additional tools required
•
Polymeric scroll band included - enhances performance of existing bath
fan housings

speciFicaTioNs

VoLTs aMps cFM
120 1.2
HVI-2100 certIfIed ratIngs comply with new testing technologies and
procedures prescribed by the Home Ventilating Institute, for off-the-shelf
products, as they are available to consumers. Product performance is rated
at 0.1 in. static pressure, based on tests conducted in aMca's state-of-the-art
test laboratory. sones are a measure of humanly-perceived loudness, based
on laboratory measurements.
For use only with these bath fan models:
NuTone 693, 695, 696N
Broan 670, 671, 688, 689
Nautilus N671, N688
INSTALLATION
Complete installation instructions are included with each kit.
REFERENCE
soNes
60 3.0
The kit will work if your
housing measures either
7½" x 7¼" or 8" x 7¼".
The kit will work if your
housing measures 7½" x 7¼".
The kit will work if your
housing measures 7½" x 7¼".
NuTone, Inc., 4820 Red Bank Road, Cincinnai, OH 45227 (1-800-543-8687)
QTY. REMARKS
Architectural & Engineering Specifications
Bath Fan
Upgrade Kit
ARCHITECT'S speciFicaTioN
•
Bath Fan Upgrade Kit shall be NuTone Model 690NT.
•
Bath Fan Upgrade Kit shall include two galvanized
steel motor plates designed to accommodate a variety
of economy fan models.
•
Motor shall be removable and permanently lubricated.
•
Air delivery shall be no less than 60 cfm and sound
level no greater than 3.0 Sones. All air and sound
ratings shall be certified by HVI. Unit shall be U.L.
Listed.
Project
Location
Architect
Engineer
Contractor
Submitted by
70B
February 2007
MODEL 690NT
Date
99043834A
