NuTone 682NT Installation Instructions Manual

Ductless Fan
MODEL: 682NT

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a quali-
fied person(s) in accordance with all applicable codes and stan-
dards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer's guidelines and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not d a m a g e
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must
marked as appropriate for the application.
8. Never place a switch where it can be reached from a tub or
shower.
9. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc., off power
unit.
3. Please read specification label on product for further information
and requirements.
READ & SAVE THESE INSTRUCTIONS!
PLAN THE INSTALLATION
Refer to FIGURE 1
Determine where fan will be located and plan to supply fan with
proper line voltage and appropriate power cable.
Follow these basic steps when installing this fan:
• Attach mounting bracket to joist or stud.
• Snap fan housing onto bracket.
• Wire fan.
• Attach grille (after ceiling or wall is finished).
be
8-1/2"
ROUGH-IN OPENING SIZE IS 7-1/4" x 7-1/4"

INSTALLATION INSTRUCTIONS

7-1/8"
6-1/4"
1"

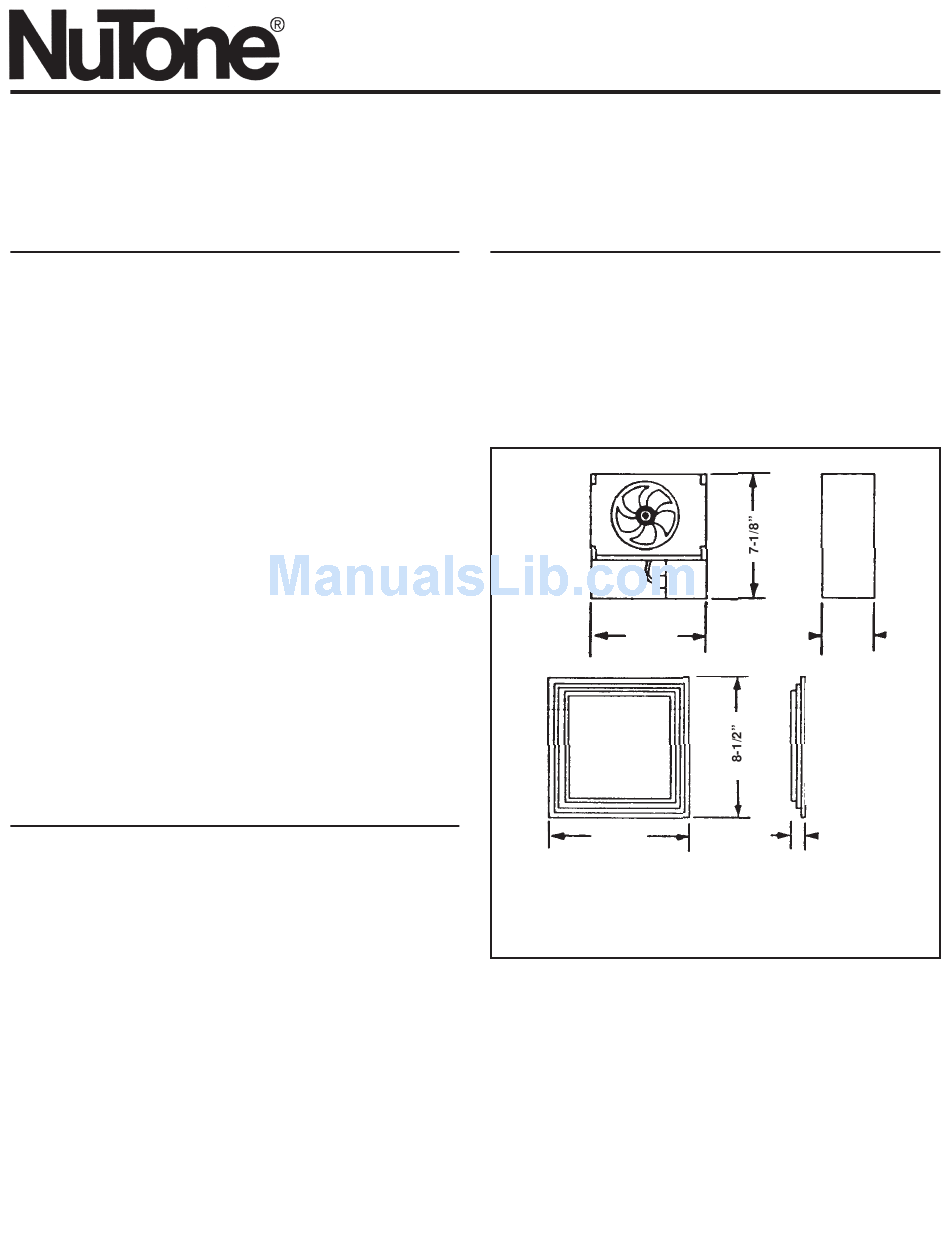

FIGURE 1
