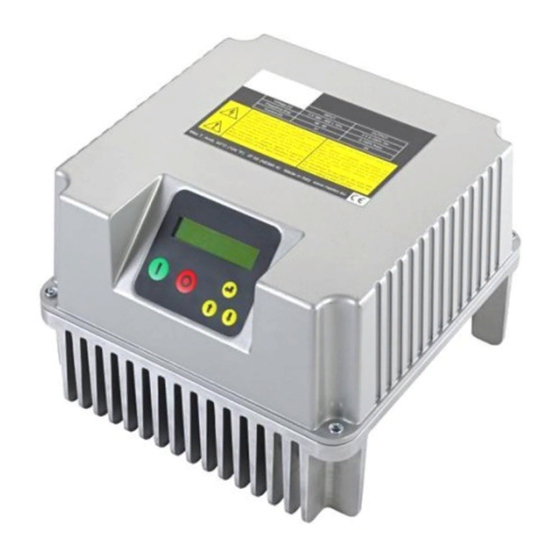

Nastec Vasco V209 Operating Manual

Variable speed controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

VAriable Speed COntroller
Operating manual
manVASCO_eng_31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vasco V209 and is the answer not in the manual?

Questions and answers

Related Manuals for Nastec Vasco V209

Summary of Contents for Nastec Vasco V209

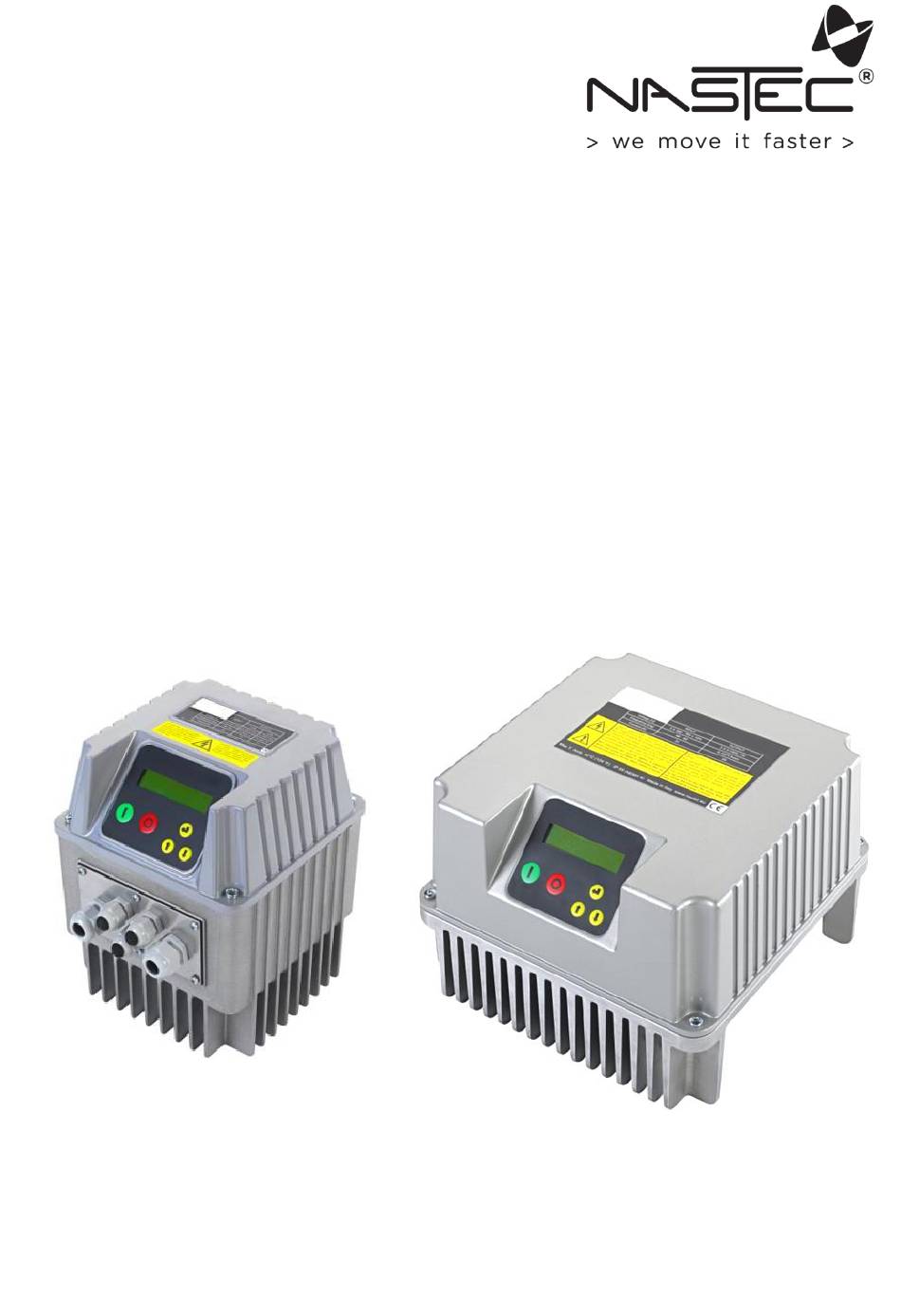

  • Page 1 VAriable Speed COntroller Operating manual manVASCO_eng_31...

  • Page 2: Table Of Contents

    Index 1. Introduction ..................................3 2. Safety Instructions ................................3 3. Technical Characteristics ..............................4 3.1 Weight and dimensions ................................5 4. Electric wiring ..................................6 4.1 Protections ..................................... 13 4.2 Electromagnetic compliance ..............................13 4.3 Installation with long motor cables ............................13 5.

  • Page 3: Introduction

    1. Introduction VASCO – VAriable Speed COntroller is a variable frequency drive designed to control and protect pumping systems by varying the output frequency to the pump. It can be applied to both new and existing pumping systems, and provides: ...

  • Page 4: Technical Characteristics

    3. Technical Characteristics P2 motor Max V out Max I in Max I out Model Vin +/- 15% [V] power* Size [kW] 1 x Vin V209 1 x 230 3 x Vin 1 x Vin V214 1 x 230 3 x Vin V218 1 x 230 3 x Vin...

  • Page 5: Weight And Dimensions

    3.1 Weight and dimensions Weight * Size SIZE 1 SIZE 2 Model [Kg] V209 V214 V218 V225 V230 V238 V306 V309 V314 V318 V325 V330 SIZE 3 V338 V348 V365 V375 V385 V406 V409 V414 V418 V425 V430 V438 V448 V465 V475 V485...

  • Page 6: Electric Wiring

    4. Electric wiring Power board V209,214 Power supply: Output: 230 V AC auxiliary fans LINE: L1, L2,GND 3 ph motor: (wall mounting kit) It is recommended to use GND,U,V,W, FAN: F1, F2 cable lugs 1 ph motor: earth, U (running), V (common) It is recommended to use cable lugs.
  • Page 7 Power board V218, 225 Power supply: Motor output: 12 V dc auxiliary fans (wall mounting kit) LINE: L1, L2, GND MOTOR: U, V, W, GND VENT: +, - It is recommended to use cable It is recommended to use cable WARNING: respect the polarity.
  • Page 8 Power board V230, 238 P.E. LINE MOTOR Power supply: Motor output: LINE: L1, L2, P.E. MOTOR: U, V, W, P.E. It is recommended to use It is recommended to use cable lugs. cable lugs. Cable stripping recommended for line input and output to the motor.
  • Page 9 Power board V306,309,406,409 Power supply: Motor output: 12 V dc auxiliary fan (wall mounting kit) : LINE: GND , L1, L2, L3, MOTOR: U, V, W, GND 0VE, + VE It is recommended to use cable It is recommended to use cable WARNING: respect the polarity.
  • Page 10 Power board V314,318,325,330,414,418,425,430 Power supply: Motor output: 12 V dc auxiliary fans (wall mounting kit) LINE: L1, L2, L3, GND MOTOR: U, V, W, GND VENT: +, - It is recommended to use cable It is recommended to use cable WARNING: respect the polarity.
  • Page 11 Power board V338,348,365,375,385,438,448,465,475,485 Power supply: Motor output: LINE: L1, L2, L3, P.E. MOTOR: U, V, W, P.E. It is recommended to use It is recommended to use cable lugs. cable lugs. Cable stripping recommended for line input and output to the motor.
  • Page 12 Control board Analog inputs (10 or 15 Vdc): Digital outputs: RS485 for COMBO: 1. AN1: 4-20 mA: sensor 1   motor run signal: 2. AN2: 4-20 mA: sensor 2  NO1, COM1: closed contact with motor running. 3. AN3: 4-20 mA / 0 - 10 Vdc (settable ...

  • Page 13: Protections

    4.1 Protections The protections required upstream each inverter depends on the type of installation, and local regulations. We recommend to use overload protection with the characteristic curve of type C and type B circuit breaker, sensitive to both AC and DC current.

  • Page 14: Installation

    5. Installation The device can be installed directly on the fan cover of the motor or mounted on the wall. Motor mounting kit In this application the unit is cooled by the motor fan. Motor kit (available upon request) allows a solid coupling of the two units and it is composed of: SIZE 1 SIZE 2...
  • Page 15 SIZE 3  n.° 1 motor feet adaptor for MEC160,180,200,225  n.° 4 M8 bolts,  n.° 4 M10 bolts, nuts and washer...
  • Page 16 Wall mounting kit In this application the unit is cooled independently by its auxiliary cooling fan integrated in the radiator. Wall-mounted kit is composed of: SIZE 1 SIZE 2   n.° 1 auxiliary fan 230V AC (V209,214) or 12 n.°...

  • Page 17: Installation For Constant Pressure Control

    5.1 Installation for constant pressure control VASCO - VAriable Speed Controller controls the pump speed to maintain constant pressure at a set point independent of the water demand in the system. A basic schematic is shown below: 1: pump VASCO 2: check valve 3: pressure tank 4: valve...

  • Page 18: Installation For Differential Constant Pressure Applications

    5.2 Installation for differential constant pressure applications The inverter can manage the pump speed in order to keep constant the pressure difference between the dischage and suction side of the pump in circulation systems. To do this, it is usually installed a differential pressure sensor. Alternatively, it is possible to use two identical pressure sensors: one in suction side and one in discharge side of the pump.

  • Page 19: Use And Programming

    6. Use and Programming The device is extremely simple to use, but allows a wide variety of parameters to be set for ideal system calibration. Setting Parameters are organized in 2 levels: 1: Installer level (MENU’ CONTROL PARAMETERS, MENU’ IN/OUT PARAMETERS, MENU’ CONNECTIVITY PARAM.) A password is required for this level;...
  • Page 20 Parameter Default Description End user communication language Language XXXX XXXXXX Unit Unit XXXXX Type of motor connected: Motor type  single phase (V209, 214)  three-phase asynchronous three-phase XXXXXX  synchronous PM (permanent magnets) Rated current of the motor per it’s nameplate indication increased Rated motor Amp.

  • Page 21: Foc Motor Control

    Once the Setting procedure is completed you will get this indication INITIAL SETUP on the display; setting parameters are recorded; these parameters can be set up individually in the parameters menu. COMPLETED 6.2.1 FOC motor control Introduction FOC (Field Oriented Control) motor control implemented in FOC-ready inverters provides the following advantages compared to traditional control: ...
  • Page 22 The calibration process can take up to one minute. Wait until it has completed. The calibration process must be performed during the final electrical configuration of the system, i.e. with the motor, the cable and any filter applied. If there is any variation of the motor, cable or filter applied, it is necessary to repeat the calibration process by accessing the motor parameters menu (default password 002).

  • Page 23: Initial View

    6.3 Initial view When first powering the device, the display shows : release of display software (LCD = X.XX) and the release of inverter software (INV = X.XX) as shown below: The following End User messages are displayed by pushing the scroll buttons: p is the pressure value read by the pressure transducer.

  • Page 24: Menu View

    6.4 Menu view Pressing ENTER when you are in [MENU’ / ENT to access] in initial display, will display the following MENUs: Installer password required to enter level 1 (default 001) MENU’ Control. param. Advanced password required to enter level 2 (default 002) MENU’...
  • Page 25 Parameter Default Description Minimum value allowed in the system. If the readen value goes lower than this      Min alarm value value, an alarm occurs and the pump is stopped. Pump is automatically restarted XXX.X [bar] if the readen value goes higher than the minimum value for a period of at least 5 seconds.
  • Page 26 Parameter Default Description To ensure proper operation of pressure control is recommended to place the sensor near the pump. To compensate the pressure loss in the pipes (proportional to flow) it is possible to vary the pressure set in a linear relation with respect to frequency.
  • Page 27 Parameter Default Description motor again; otherwise, the device will stop the pump. Delta control   Value drop below the set value required to restart the pump during control ramp. XXX.X [bar] press. Set value Delta control Control ramp Stop delay Freq.min.control Min mot.

  • Page 28: Motor Parameters

    Parameter Default Description Address Address:    00 master  01 to 07 slaves Function to allow alternating between the inverters connected in COMBO (or pumps connected in DOL) in order to Alternance   allow equal use of each pump in the group;...
  • Page 29 Voltage boost Voltage increase during the motor start up. Warning: An excessive value can seriously damage the motor. Contact the XX.X [%] motor manufacturer for further information. Rated motor Amp. Rated motor current as per its nameplate indication increased by 5%. XX.X [A] Rated motor freq Rated motor frequency as per its nameplate.
  • Page 30 V / f characteristic with which the inverter feeds the engine. The linear characteristic corresponds to constant torque with variable speed. The V/f lin. --> quad. quadratic characteristic is normally used with centrifugal pumps. The 85 % selection of torque characteristic should be done ensuring a smooth XXX [%] operation, a reduction of energy consumption and a lower level of heat and acoustic noise.

  • Page 31: In/Out Parameters

    6.7 IN/OUT parameters Parameter Default Description Unit Unit [bar,%,ft,in,cm,m,K,F,C,gpm,l/min,m3/h,atm,psi] XXXXX F. scale sensor Sensor full scale. XXX.X Min.value sensor Sensor minimum value. XXX.X Zero correction for analog input 1 (4-20 mA) Offset input 1 (20 mA x 20% = 4 mA). Zero correction for analog input 2 (4-20 mA) Offset input 2 (20 mA x 20% = 4 mA).

  • Page 32: Connectivity Parameters

    Parameter Default Description Dig.In.2/3 delay Digital input IN2 & IN3 delay. Digital input IN1 has 1 second fix delay. 6.8 Connectivity parameters Parameters Default Description MODBUS address MODBUS address from 1 to 247 MODBUS baudrate 9600 MODBUS baudrate from 1200 bps to 57600 bps XXXXX [bps] MODBUS data format RTU N81...
  • Page 33  Check if the pump is primed  Check the set value of dry running cosphi. Dry running cosphi is approximately 60% of the rated cosphi (at rated frequency) listed on the motor plate. If pump’s cosphi is lower than the set dry- Motor cosphi is lower than the set value of running cosphi for at least 2 seconds, the NO WATER...

  • Page 34: Auxiliary Pumps During Constant Pressure Control

    If pumps cosphi is lower than the dry-running cosphi for at least 2 seconds, the inverter will stop the pump. The device will try to run the pump every 10, 20, 40, 80, 160 minutes and then the pump is stopped. ATTENTION: if dry-running protection occurs, the inverter will try to start the pump automatically.

  • Page 35: Dol Pumps

    8.1 DOL pumps Each DOL pump is switched on by a contactor controlled by the digital output DOL1 and DOL2 present in the device. Relays driving the DOL pumps are relays with no voltage contacts. Max voltage to the contacts is 250 V, max current 5 A.

  • Page 36: Combo Function

    External switch Max 240 VAC, 5 A MANUAL Max 30 VDC, 5A Contactor AUTO Motor digital output 8.2 COMBO function In the “Control parameters” menu it is possible to enable the COMBO function that allows serial communication between up to 8 units, each one connected to a pump. The operating principle (switch on/off) of pumps is similar to as stated in chapter 8.1.
  • Page 37 Master setup 1. Supply power to the master. 2. If not yet completed, perform the initial configuration as described on chapter 6.2 3. Initial view is shown: Inv: ON/OFF Mot: ON/OFF p_mis=XX.X [bar] 4. Scroll until: Menù ENT to access 5.
  • Page 38 Slave setup Follow Master setup until point 11. In case of failure of master in a Combo system, will be replaced by slave. As a consequence, all parameters must be setup independently on each inverter, master mode. 1. Set: Address in COMBO operation. Address ...

  • Page 39: Trouble-Shooting Chart

    9. Trouble-shooting chart  LCD does not switch on after powering Check the connecting flat cable between the LCD board (attached to the unit the cover) and the control board  Check the fuses  Check that the power cables are properly connected. ...

  • Page 40: Technical Assistance

    10. Technical Assistance For more technical information contact the authorized reseller providing the following information. The solution to the problem will be found faster and easier if full information is provided. Model/Serial Code LCD version (shown when device is power INV version (shown when device is power supplied) supplied)
  • Page 41 DECLARATION OF CONFORMITY In according with: Machine Directive 2006/42/EC EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU R&TTE Directive 2014/53/EU VASCO - VAriable Speed COntroller is an electronic device to be connected to other electrical equipment with which it is to form individual units.
  • Page 42 NOTE...
  • Page 44 Copyright NASTEC srl Nastec reserves the right to modify informations in this manual without any notice. Nastec srl, Via della Tecnica, 8, 36024, Mossano, Vicenza, Italy, Tel. +39 0444 886289, Fax +39 0444 776099, www.nastec.eu, info@nastec.eu...
