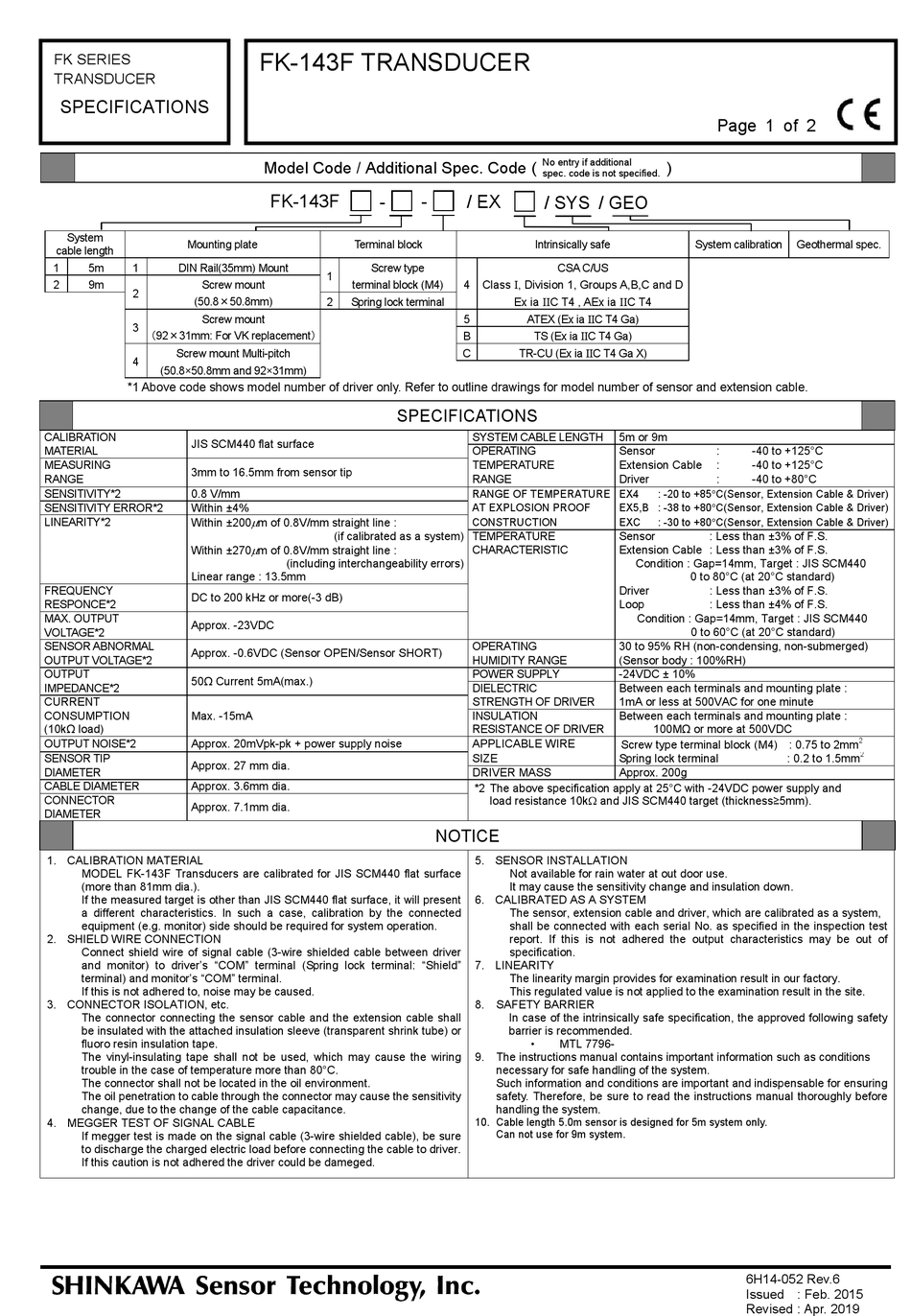

Shinkawa FK Series Installation Instructions

FK SERIES
TRANSDUCER

SPECIFICATIONS

System
Mounting plate
cable length
1 5m 1 DIN Rail(35mm) Mount
2 9m Screw mount
2
(50.8×50.8mm)
Screw mount
3
（92×31mm: For VK replacement）
Screw mount Multi-pitch
4
(50.8×50.8mm and 92×31mm)
*1 Above code shows model number of driver only. Refer to outline drawings for model number of sensor and extension cable.

CALIBRATION

JIS SCM440 flat surface
MATERIAL
MEASURING
3mm to 16.5mm from sensor tip
RANGE
SENSITIVITY*2 0.8 V/mm
SENSITIVITY ERROR*2 Within ±4%
LINEARITY*2 Within ±200
Within ±270
Linear range : 13.5mm
FREQUENCY
DC to 200 kHz or more(-3 dB)
RESPONCE*2
MAX. OUTPUT
Approx. -23VDC
VOLTAGE*2
SENSOR ABNORMAL
Approx. -0.6VDC (Sensor OPEN/Sensor SHORT)
OUTPUT VOLTAGE*2
OUTPUT
50Ω Current 5mA(max.)
IMPEDANCE*2
CURRENT
CONSUMPTION Max. -15mA
(10kΩ load)
OUTPUT NOISE*2 Approx. 20mVpk-pk + power supply noise
SENSOR TIP
Approx. 27 mm dia.
DIAMETER
CABLE DIAMETER Approx. 3.6mm dia.
CONNECTOR
Approx. 7.1mm dia.
DIAMETER
1. CALIBRATION MATERIAL
MODEL FK-143F Transducers are calibrated for JIS SCM440 flat surface
(more than 81mm dia.).
If the measured target is other than JIS SCM440 flat surface, it will present
a different characteristics. In such a case, calibration by the connected
equipment (e.g. monitor) side should be required for system operation.
2. SHIELD WIRE CONNECTION
Connect shield wire of signal cable (3-wire shielded cable between driver
and monitor) to driver's "COM" terminal (Spring lock terminal: "Shield"
terminal) and monitor's "COM" terminal.
If this is not adhered to, noise may be caused.
3. CONNECTOR ISOLATION, etc.
The connector connecting the sensor cable and the extension cable shall
be insulated with the attached insulation sleeve (transparent shrink tube) or
fluoro resin insulation tape.
The vinyl-insulating tape shall not be used, which may cause the wiring
trouble in the case of temperature more than 80°C.
The connector shall not be located in the oil environment.
The oil penetration to cable through the connector may cause the sensitivity
change, due to the change of the cable capacitance.
4. MEGGER TEST OF SIGNAL CABLE
If megger test is made on the signal cable (3-wire shielded cable), be sure
to discharge the charged electric load before connecting the cable to driver.
If this caution is not adhered the driver could be dameged.
FK-143F TRANSDUCER
Model Code / Additional Spec. Code (
FK-143F - -
Terminal block
Screw type
1
terminal block (M4)
2 Spring lock terminal
SPECIFICATIONS

m of 0.8V/mm straight line :
(if calibrated as a system) TEMPERATURE

m of 0.8V/mm straight line :
(including interchangeability errors)
No entry if additional
spec. code is not specified.
/ EX
/ SYS / GEO
Intrinsically safe
CSA C/US
Class , Division 1, Groups A,B,C and D
4
Ex ia C T4 , AEx ia C T4
ATEX (Ex ia C T4 Ga)
5
TS (Ex ia C T4 Ga)
B
TR-CU (Ex ia C T4 Ga X)
C
SYSTEM CABLE LENGTH
OPERATING
TEMPERATURE
RANGE
RANGE OF TEMPERATURE EX4
AT EXPLOSION PROOF
CONSTRUCTION
CHARACTERISTIC
OPERATING
HUMIDITY RANGE
POWER SUPPLY
DIELECTRIC
STRENGTH OF DRIVER
INSULATION
RESISTANCE OF DRIVER
APPLICABLE WIRE
SIZE
DRIVER MASS
*2 The above specification apply at 25°C with -24VDC power supply and
load resistance 10k and JIS SCM440 target (thickness≥5mm).
NOTICE
5. SENSOR INSTALLATION
Not available for rain water at out door use.
It may cause the sensitivity change and insulation down.
6. CALIBRATED AS A SYSTEM
The sensor, extension cable and driver, which are calibrated as a system,
shall be connected with each serial No. as specified in the inspection test
report. If this is not adhered the output characteristics may be out of
specification.
7. LINEARITY
The linearity margin provides for examination result in our factory.
This regulated value is not applied to the examination result in the site.
8. SAFETY BARRIER
In case of the intrinsically safe specification, the approved following safety
barrier is recommended.
• MTL 7796-
9. The instructions manual contains important information such as conditions
necessary for safe handling of the system.
Such information and conditions are important and indispensable for ensuring
safety. Therefore, be sure to read the instructions manual thoroughly before
handling the system.
10. Cable length 5.0m sensor is designed for 5m system only.
Can not use for 9m system.
Page 1 of 2
)
System calibration
5m or 9m
Sensor : -40 to +125°C
Extension Cable : -40 to +125°C
Driver : -40 to +80°C
: -20 to +85C(Sensor, Extension Cable & Driver)
EX5,B : -38 to +80C(Sensor, Extension Cable & Driver)
EXC : -30 to +80C(Sensor, Extension Cable & Driver)
Sensor : Less than ±3% of F.S.
Extension Cable : Less than ±3% of F.S.
Condition : Gap=14mm, Target : JIS SCM440
0 to 80°C (at 20°C standard)
Driver : Less than ±3% of F.S.
Loop : Less than ±4% of F.S.
Condition : Gap=14mm, Target : JIS SCM440
0 to 60°C (at 20°C standard)
30 to 95% RH (non-condensing, non-submerged)
(Sensor body : 100%RH)
-24VDC ± 10%
Between each terminals and mounting plate :
1mA or less at 500VAC for one minute
Between each terminals and mounting plate :
100MΩ or more at 500VDC
Screw type terminal block (M4) : 0.75 to 2mm
Spring lock terminal : 0.2 to 1.5mm
Approx. 200g
6H14-052 Rev.6
Issued : Feb. 2015
Revised : Apr. 2019
Geothermal spec.
2
2
