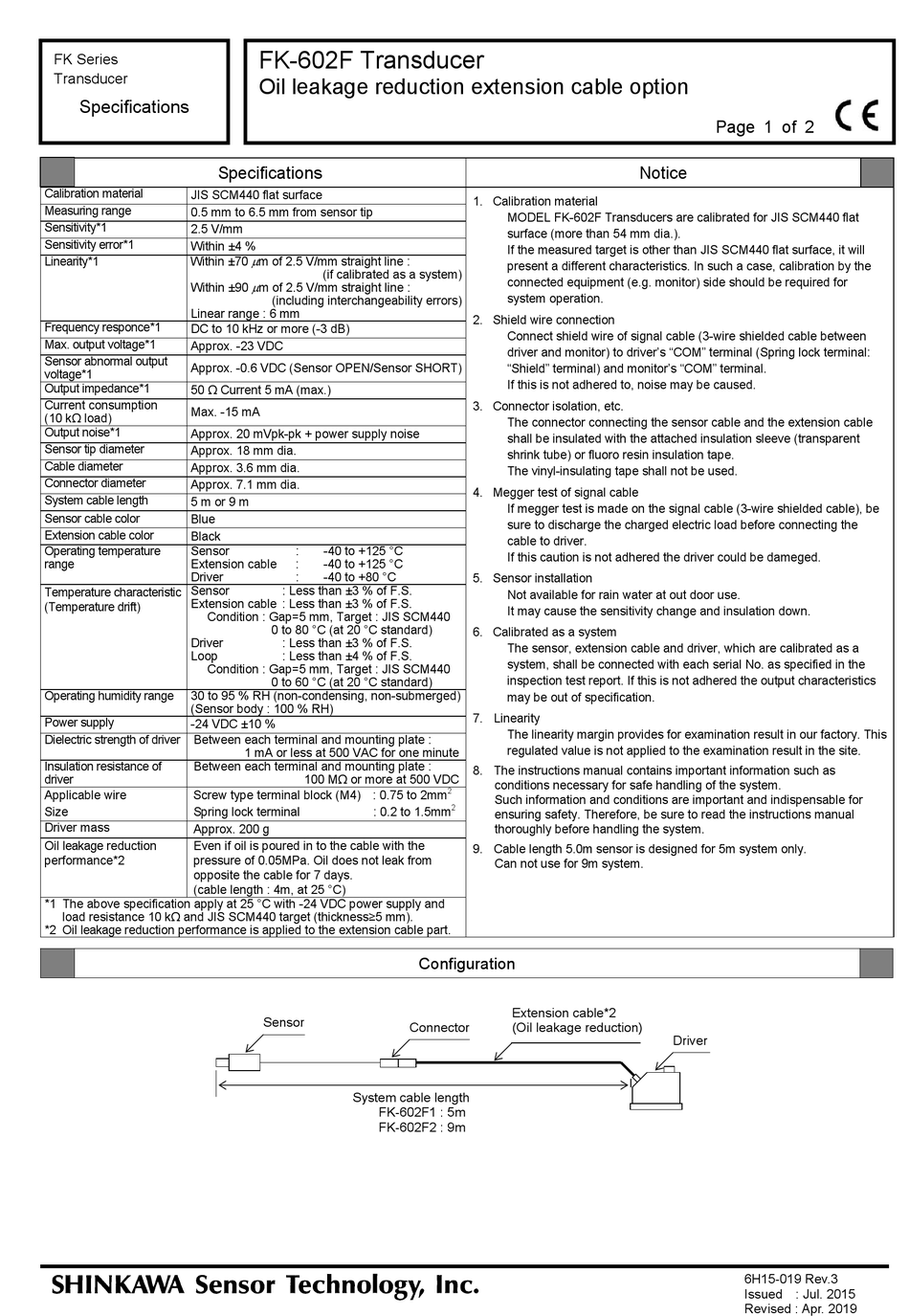

Shinkawa FK Series Quick Manual

FK Series
Transducer

Specifications

Calibration material

JIS SCM440 flat surface
Measuring range
0.5 mm to 6.5 mm from sensor tip
Sensitivity*1
2.5 V/mm
Sensitivity error*1
Within ±4 %

Linearity*1

Within ±70
Within ±90
Linear range : 6 mm
Frequency responce*1
DC to 10 kHz or more (-3 dB)
Max. output voltage*1
Approx. -23 VDC
Sensor abnormal output
Approx. -0.6 VDC (Sensor OPEN/Sensor SHORT)
voltage*1
Output impedance*1
50 Ω Current 5 mA (max.)
Current consumption
Max. -15 mA
(10 kΩ load)
Output noise*1
Approx. 20 mVpk-pk + power supply noise
Sensor tip diameter
Approx. 18 mm dia.
Cable diameter
Approx. 3.6 mm dia.
Connector diameter
Approx. 7.1 mm dia.
System cable length
5 m or 9 m
Sensor cable color
Blue
Extension Cable color
Black
Operating temperature Sensor
range Extension cable
Driver
Sensor
Temperature characteristic
Extension cable : Less than ±3 % of F.S.
(Temperature drift)
Condition : Gap=5 mm, Target : JIS SCM440
Driver
Loop
Condition : Gap=5 mm, Target : JIS SCM440
Operating humidity range 30 to 95 % RH (non-condensing, non-submerged)
(Sensor body : 100 % RH)
Power supply
-24 VDC ±10 %
Dielectric strength of driver Between each terminal and mounting plate :
Insulation resistance of Between each terminal and mounting plate :
driver
Applicable wire Screw type terminal block (M4) : 0.75 to 2mm
Size Spring lock terminal
Driver mass
Approx. 200 g
Oil leakage reduction Even if oil is poured in to the cable with the
performance*2 pressure of 0.05MPa. Oil does not leak from
opposite the cable for 7 days.
(cable length : 4m, at 25 °C)
*1 The above specification apply at 25 °C with -24 VDC power supply and
load resistance 10 kΩ and JIS SCM440 target (thickness≥5 mm).
*2 Oil leakage reduction performance is applied to the extension cable part.
FK-602F Transducer
Oil leakage reduction extension cable option
Specifications

m of 2.5 V/mm straight line :
(if calibrated as a system)

m of 2.5 V/mm straight line :
(including interchangeability errors)
: -40 to +125 °C
: -40 to +125 °C
: -40 to +80 °C
: Less than ±3 % of F.S.
0 to 80 °C (at 20 °C standard)
: Less than ±3 % of F.S.
: Less than ±4 % of F.S.
0 to 60 °C (at 20 °C standard)
1 mA or less at 500 VAC for one minute
100 MΩ or more at 500 VDC
: 0.2 to 1.5mm
Sensor
System cable length
FK-602F1 : 5m
FK-602F2 : 9m
1. Calibration material
MODEL FK-602F Transducers are calibrated for JIS SCM440 flat
surface (more than 54 mm dia.).
If the measured target is other than JIS SCM440 flat surface, it will
present a different characteristics. In such a case, calibration by the
connected equipment (e.g. monitor) side should be required for
system operation.

2. Shield wire connection

Connect shield wire of signal cable (3-wire shielded cable between
driver and monitor) to driver's "COM" terminal (Spring lock terminal:
"Shield" terminal) and monitor's "COM" terminal.
If this is not adhered to, noise may be caused.

3. Connector isolation, etc.

The connector connecting the sensor cable and the extension cable
shall be insulated with the attached insulation sleeve (transparent
shrink tube) or fluoro resin insulation tape.
The vinyl-insulating tape shall not be used.

4. Megger test of signal cable

If megger test is made on the signal cable (3-wire shielded cable), be
sure to discharge the charged electric load before connecting the
cable to driver.
If this caution is not adhered the driver could be dameged.

5. Sensor installation

Not available for rain water at out door use.
It may cause the sensitivity change and insulation down.

6. Calibrated as a system

The sensor, extension cable and driver, which are calibrated as a
system, shall be connected with each serial No. as specified in the
inspection test report. If this is not adhered the output characteristics
may be out of specification.
7. Linearity
The linearity margin provides for examination result in our factory. This
regulated value is not applied to the examination result in the site.
8. The instructions manual contains important information such as
conditions necessary for safe handling of the system.
2
Such information and conditions are important and indispensable for
2
ensuring safety. Therefore, be sure to read the instructions manual
thoroughly before handling the system.
9. Cable length 5.0m sensor is designed for 5m system only.
Can not use for 9m system.

Configuration

Extension cable*2
Connector
(Oil leakage reduction)
Page 1 of 2
Notice
Driver
6H15-019 Rev.3
Issued : Jul. 2015
Revised : Apr. 2019
