Remove the master links using long-nose
pliers. Then, roll up the belt along the length
of the conveyor frame.
Add or remove belt links as necessary to
achieve the correct belt tension.
Replace the belt on the conveyor frame.
Check that the conveyor belt links are
oriented as shown in Figure 23, and that the
smooth side of the conveyor belt faces UP.
Connect the inside master links. Check that
the links are oriented as shown in Figure 23.
Connect the outside master links. Note that
the outside master links each have an open
hook on one side. This hook aligns with the
hooks along the sides of the other conveyor
links. See Figure 23.
Install the conveyor into the oven. See steps
1–4.

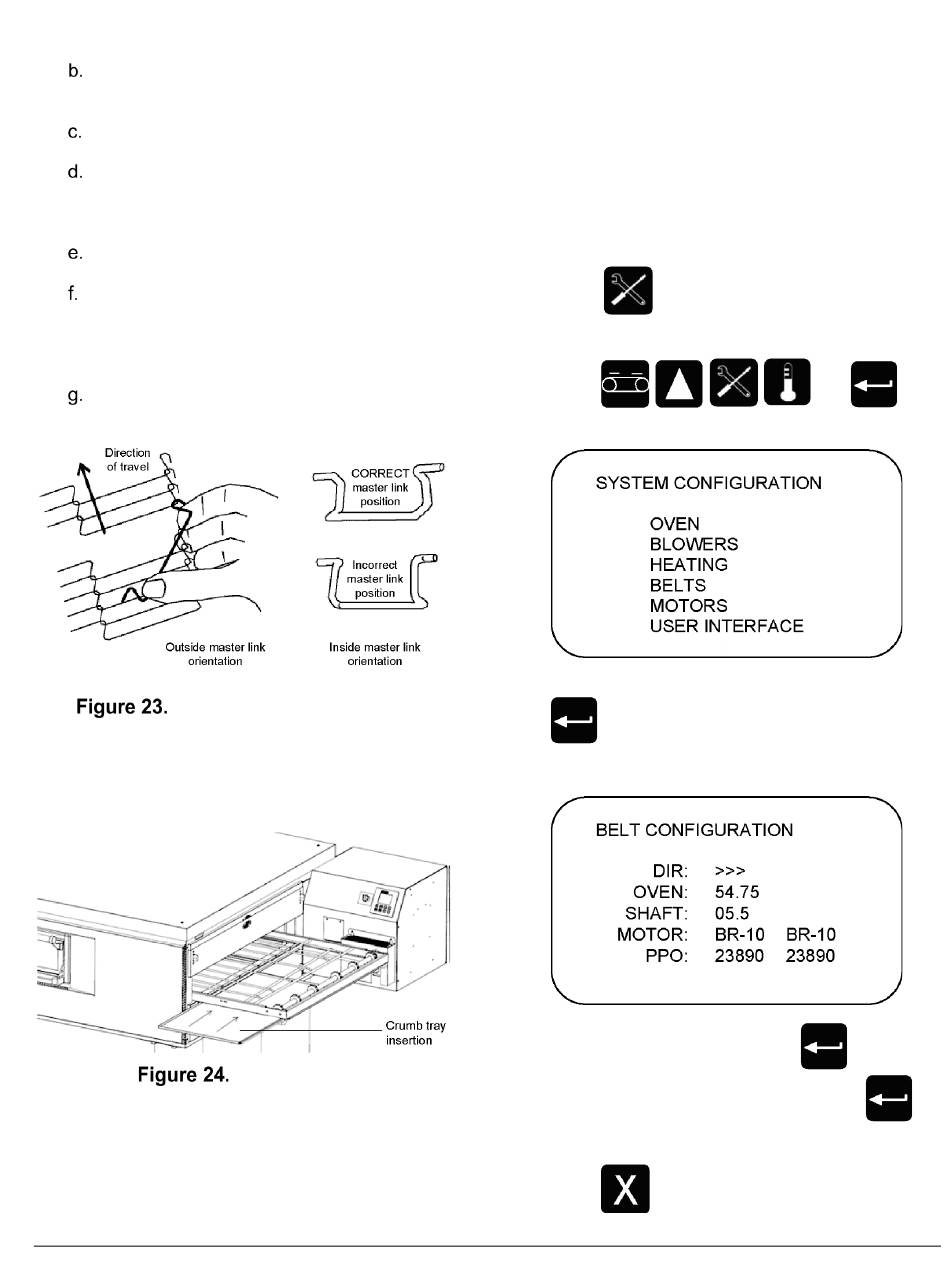

Conveyor and Master Link
Orientation
E. Final Assembly
1. Install the crumb trays underneath the conveyor
as shown in Figure 24.
Crumb Trays
F. Conveyor Belt Reversal
Conveyor belt reversal consists of two steps:
1. Resetting the conveyor gear-motor direction
through the User Interface.
2. Switching the photo sensor to the new entrance.
RESETTING DIRECTION
1. Enter SYSTEM CONFIGURATION menu.
Press
the screen.
Press
screen should appear as below.
2. Arrow down to BELTS menu (flashing). Press
.
Screen will appear as below:
DIR: should be flashing. Press
arrow up to change direction. Press
accept the direction change.
3. Press to leave the BELTS menu.
23
INSTALLATION
key. "PASSWORD" will appear on
and
SECTION 2
. The
then press
to
