2.5
HP
3.0
HP
TM351-22050
(2.5Hp, 50Ltr Tank)
TM351-30060
(3.0Hp, 60Ltr Tank)
TM351-30090
(3.0Hp, 90Ltr Tank)

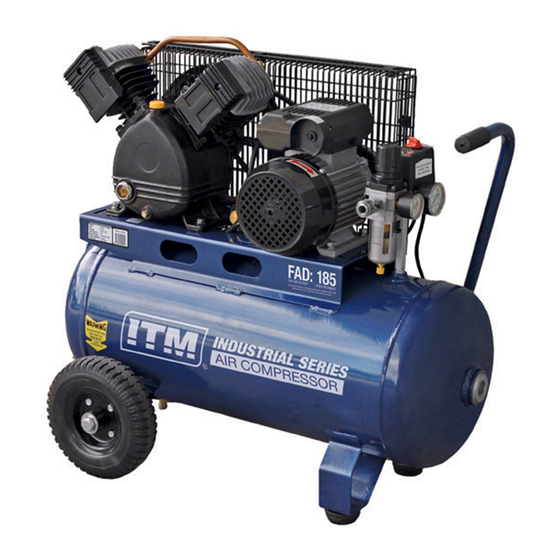

BELT DRIVE
AIR COMPRESSORS
OPERATOR'S MANUAL
TM351-30050
(3.0Hp, 50Ltr Tank)
TM351-25060
(2.5Hp, 60Ltr Tank)
TM351-25090
(2.5Hp, 90Ltr Tank)
www.itmtools.com.au
TM354-22050
(2.5Hp, 50Ltr Tank)
Ver: 1.0
Advertisement
Related Manuals for Itm Industrial Series
Summary of Contents for Itm Industrial Series

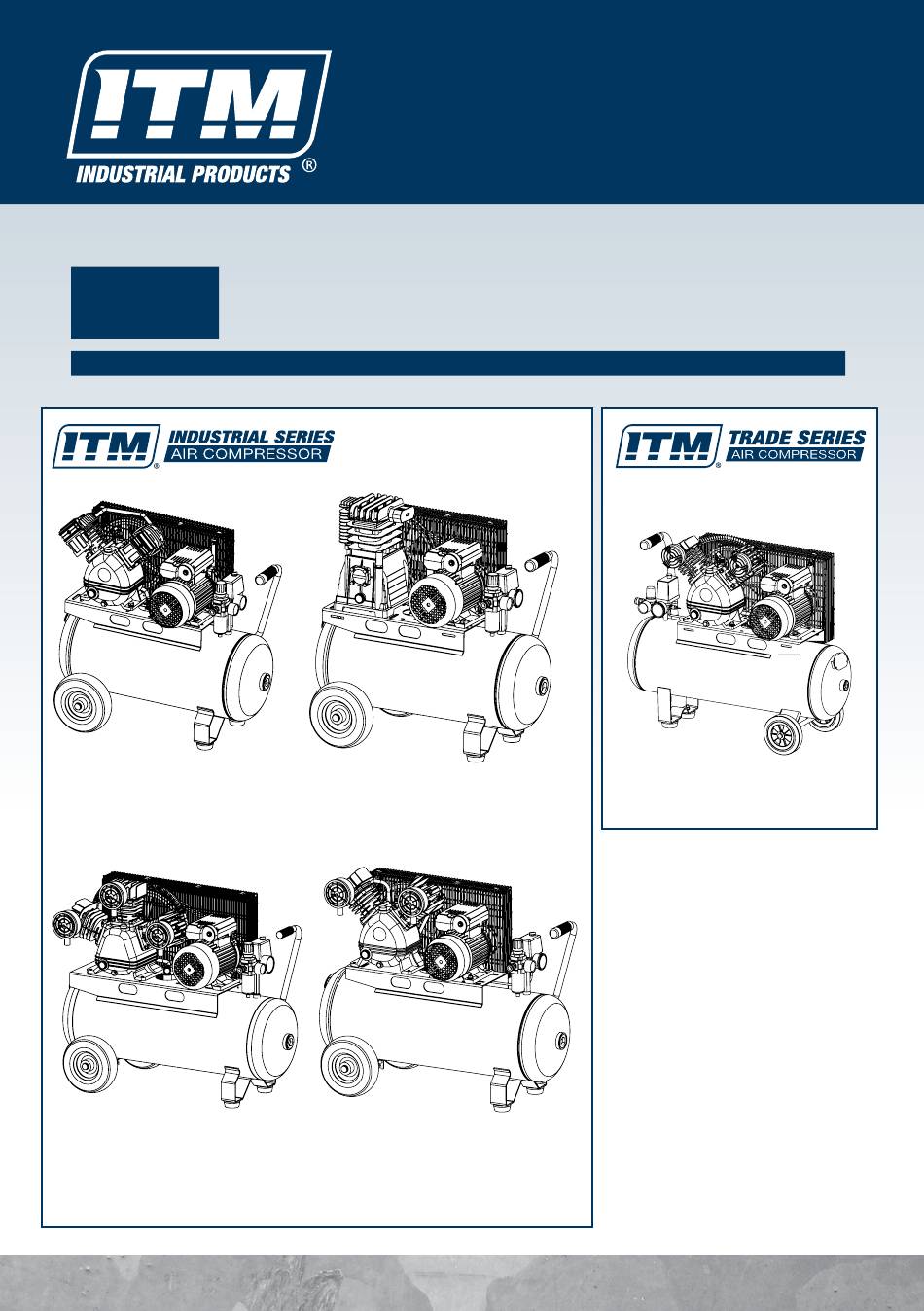

- Page 1 BELT DRIVE AIR COMPRESSORS OPERATOR’S MANUAL TM351-22050 TM351-30050 TM354-22050 (2.5Hp, 50Ltr Tank) (3.0Hp, 50Ltr Tank) (2.5Hp, 50Ltr Tank) TM351-30060 TM351-25060 (3.0Hp, 60Ltr Tank) (2.5Hp, 60Ltr Tank) TM351-30090 TM351-25090 (3.0Hp, 90Ltr Tank) (2.5Hp, 90Ltr Tank) Ver: 1.0 www.itmtools.com.au...
- Page 2 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TABLE OF CONTENTS Warranty ........................Safety Information ....................3 Product Specifications ....................Package Contents ....................8 Safety Instructions ..................... Preparation ......................8 Getting Started ......................Assembly Instructions ..................9 Maintenance ......................Operating Instructions ..................11 Trouble Shooting .......................
-
Page 3: Safety Information
When using air tools, basic safety precautions should always be followed to reduce the risk of personal injury. ITM air compressors are manufactured to AS1210 Standards. This air receiver is registered with WorkSafe Australia to comply with plant registration regulations in Australia. - Page 4 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL www.itmtools.com.au...
-
Page 5: General Safety Rules For Operation
BELT DRIVE COMPRESSOR OPERATOR’S MANUAL GENERAL SAFETY RULES FOR OPERATION Before attempting to operate this compressor the following basic safety precautions should always be taken to reduce the risk of fire and personal injury. It is important to read the instruction manual to understand the application, limitations and potential hazards associated with any tool. - Page 6 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL GENERAL SAFETY RULES FOR OPERATION General Do not operate the compressor without the belt guard being correctly fitted. Do not attempt to modify the compressor in any way. The use of any tool or accessory other than those designed for use with compressed air could result in injury to the operator.
-
Page 7: Getting Started
BELT DRIVE COMPRESSOR OPERATOR’S MANUAL GETTING STARTED Assembly This air compressor requires some minor assemble before it can be used. Locate the accessory pack/s. These should contain : Wheel/s and axle set. Rubber stoppers. Air filters. Oil filler breather. Position the unit on a even surface: Fit the wheel/s to the unit. -
Page 8: Troubleshooting
BELT DRIVE COMPRESSOR OPERATOR’S MANUAL WARNING Ensure the compressor is disconnected from the power supply when performing maintenance tasks to avoid injury. MAINTENANCE REQUIRED FREQUENCY Check pump oil level Before each use Drain the condensation from the air tank Before each use Check for loose nuts / bolts and tighten Before each use Check for air leaks... - Page 9 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL Model: TM359-022 Pump Belt Driven TM359-022 Parts Breakdown Pump Belt Driven, 2.2HP V-twin. For use with TM351-22050 Type : 2.2 HP V-Twin Date Oct 2020 Version：00 ： Q.ty Part no. Part Name Part Name 320N000803561 Hex.Bolt 3490080000000 Sp.Washer...
- Page 10 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-022 Parts Breakdown Pump Belt Driven, 2.2HP V-twin. For use with TM351-22050 Q.ty Part no. Part Name Part Name 18.1 756PLHM000004_1 Case 18.2 756PLHM000004_3 Element 18.3 756PLHM000004_3 Case 18.4 756PLHM000004_4 Screw 084YE01600000_1 O ring 084YE01600000 Oil cap 263DN00802200 Soft start valve...
- Page 11 Pump Belt Driven TM359-027 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-027 Parts Breakdown Type : 2.5HP V-Twin Date：OCT 2020 Version：00 Pump Belt Driven, 2.5HP V-twin. For use with TM351-25060, TM351-25090 Q.ty Part no. Part Name Part Name 320N000803561 Hex.Bolt 3351035000000 PL.Washer 294FE267A1000 Flywheel 320N000802561...
- Page 12 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-027 Parts Breakdown Pump Belt Driven, 2.5HP V-twin. For use with TM351-25060, TM351-25090 Q.ty Part no. Part Name Part Nam 084YE01600000 Oil cap 322NF00803200 Stud Bolt 321N000800001 Hex.Nut 2390065048000 Cylinder 2361453001080 connecting rod 2351450560000 Piston pin 337M001031000 Circlip 2330065000000...
- Page 13 ： TM359-035 Pump Belt Driven Model BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-035 Parts Breakdown Type: 3HP Single Date：Oct 2020 Version：00 Pump Belt Driven, 3HP Single. For use with TM351-30050 Part Name Q.ty Part no. 320N0008030F0 Hex.Bolt 13 349FE00800000 SP.Washer 4512040000350 PL.Washer 294FE280A1000 Flywheel...
- Page 14 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-035 Parts Breakdown Pump Belt Driven, 3HP Single. For use with TM351-30050 Part Name Q.ty Part no. 0830PL0170002 Breather 0830PL0170002_1 O-Ring 3390000000001 Seal ring 320N200802511 Hex.Socket Bolt 566AL03200000 Crankcase 568AL03200000 Bearing cover 2450DN0150001_1 Gasket 2450DN0150001 Oil Sight Glass 33900000MFQ06 Seal ring...
- Page 15 Pump Belt Driven TM359-039 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-039 Parts Breakdown Type : 3HP Triple Date： OCT 2020 Version：00 Pump Belt Driven, 3HP Triple For use with TM351-30060, TM351-30090 Q.ty Part no. Part Name 320N000803061 Hex.bolt 4512040000120 PL. washer 294FE370B2000 Fly wheel 320N000802561...
- Page 16 BELT DRIVE COMPRESSOR OPERATOR’S MANUAL TM359-039 Parts Breakdown Pump Belt Driven, 3HP Triple For use with TM351-30060, TM351-30090 Q.ty Part no. Part Name 2450DN0200000 Oil sightglass 3420065000000 Cylinder gasket 238AL06510007 Cylinder 084YE01600000_1 O-Ring 084YE01600000 Oil Cap 30602FE015000 2-way manifold nipple 322NF00803200 Stud Bolt 321N000800001...
