  • Page 1 Operation Manual CME Medical T34 Operations Manual Rev 1.4...

  • Page 2: Table Of Contents

    4.1-4.10 User Guides ........................25-34 Section 5 APPENDICES 35-36 T34 Syringe Pump Specifications ..................35 Limited Warranty ......................36 Contact Details ......................... 37 Index ..........................38 CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 3: Introduction

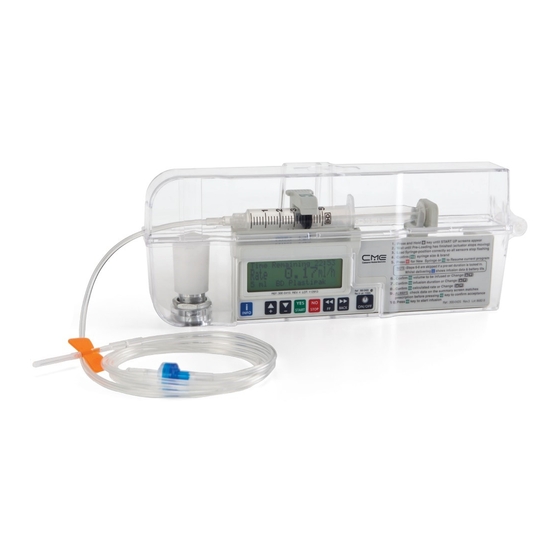

    1.1 PUMP OVERVIEW The T34 is a small, lightweight, robust, battery powered infusion pump. The size and weight of the T34 makes it ideal for ambulatory use in a hospital or alternate site / homecare setting. It is equally suitable for adults or paediatric use.

  • Page 4: About This Manual

    1.5 ABOUT THIS MANUAL The operator must be thoroughly familiar with the T34 syringe pump described in this manual prior to  use, and in particular must read and understand any warnings and precautions stated herein. If a soft- ware change occurs and the operation/specification for the pump changes, new or additional operat- ing instructions will be issued, if needed.
  • Page 5  avoid trapping of fingers or other body parts in the mechanism. The T34 syringe pump system should be operated within a temperature range of 15°C (59°F) to 45°C  (113°F). Operation at temperatures outside this range may affect accuracy.

  • Page 6: System Symbols

    1.8 SYSTEM SYMBOLS 1.8 SYSTEM SYMBOLS The following symbols are used on the T34 syringe pump and components. Labels on the pump or state- The following symbols are used on the T34 syringe pump and components. Labels on the pump or state-...

  • Page 7: Pump Inspection And Unpacking

    Remove the T34 syringe pump and accessories from the packaging and inspect for damage during shipment or storage. WARNING: Do not use the T34 syringe pump if there are any obvious signs of damage. Return for inspection by authorised service personnel.

  • Page 8: Bodycomm Communications Software

    Zinc-carbon batteries (marked 6F22 or 6R61 (for example a PP3) are not recommended for use with the T34. These batteries perform poorly and need to be replaced more often. Do not use non-alkaline T34. These batteries perform poorly and need to be replaced more often. Do not use non-alkaline batteries.

  • Page 9: Features And Functions

    (a) during system self-test (b) intermittently to indicate infusion delivery A red indicator lights: (a) continuously to indicate an alarm state (b) when pump paused/on stand-by mode CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...

  • Page 10: Access Codes

    The keypad has a locking feature that prevents unintentional powering off of the unit. As well as the ability to lock or limit certain infusion parameters or pump settings, the T34 pump allows users to lock the operation of the keypad if concerned about patients, relatives or un-trained personnel tampering with the pump.

  • Page 11: Event Log

    If the pump is resumed/restarted following the backward movement of the actuator the user will notice that time is added to the time remaining to protect the original calculated rate. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 12: Syringe Brands And Sizes

    WARNING: Some manufacturers have several brand names within their ranges (e.g. Braun Omnifix and Braun Perfusor). Only use the brands named above with the T34 as failing to do so could result in an under or over infusion.

  • Page 13: Battery Fitting

    B. Push the battery into the compartment taking care to ensure that the battery + / - contacts are aligned on the label inside the compartment. C. Slide the cover back on. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 14: Battery Life

    D. Remove syringe and place the barrel clamp arm down. WARNING: Before removing a syringe from a pump ensure the line is disconnected from the patient to prevent unintended drug delivery to the patient. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 15: Pump Info Menu

    Locks the rate mode ml/hr rate each time a new programme is commenced/syringe is loaded Rate Setting 0 - 650ml/h is commenced/syringe is loaded CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 16: Pre-Loading, Programme Protection And "Resume/New Syringe

    The “Load Syringe” screen displays and flashes until a syringe is detected in all three pump sensors. detected in all three pump sensors. CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 17 If the user presses “YES to Resume” – the current programme is resumed  (fixed rate). If the user presses “NO for New Syringe” the current programme is immediately deleted.  CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 18: Syringe Loading, Detection And Confirmation

    CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 19: Lock On, Lock Off And Rate Modes Of Operation

     The rate can be titrated in Rate Mode only when rate titration is enabled.  NOTE: The rate cannot be titrated with the keypad locked. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 20: Recommended Safety Checks During Infusion

    The pump will activate an alarm for: End of Infusion  Pump paused too long  End Battery  Syringe displaced  Occlusion/Empty Syringe  Occlusion/Check line  System Error  CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 21 Record error code and Error No xxx summary of fault and return pump to designated service centre. NOTE: The screen information shown is representative only. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 22: Kvo (Keep Vein Open)

    2.19 KVO (Keep Vein Open) OPERATION The T34 can be configured to deliver a KVO infusion to commence at END PROGRAM to keep the patients access device patent. With KVO enabled T34 applies the KVO rate set until the syringe is empty.

  • Page 23: Maintenance, Cleaning And Service

    WARNING: Do not clean the syringe pump with chemicals such as Xylene, Acetone or similar solvents. These chemicals can cause damage to components and labels. WARNING: Do not soak or immerse any part of the T34 in water or any other solution, immersing the pump in liquid could cause damage to components.

  • Page 24: Servicing

    You must refer to local policy for specific use of the T34 syringe pump and the use of accessories for your clinical area and organisation. If the pump has been configured to local requirements screen sequences and screen information may vary from these shown in this manual.

  • Page 25: 4.10 User Guides

    Visually check that: The infusion running screen is visible and the green light flashes intermittently. Place pump in lockbox and activate keypad lock if required, according to local policy.  CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 26 Visually check that: The infusion running screen is visible and the green light flashes intermittently. Place pump in lockbox and activate keypad lock if required, according to local policy.  CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 27 Place pump in lockbox and activate keypad lock if required, according to local policy.  If purge required, press the FF key when the review infusion summary screen displays (step 10a) and before confirming parameters. Follow on-screen prompts. CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 28 Place pump in lockbox and activate keypad lock if required, according to local policy.  If purge required, press the FF key when the review infusion summary screen displays (at step 8e) and before confirming parameters. Follow on-screen prompts. CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...
  • Page 29 Place pump in lockbox and activate keypad lock if required, according to local policy.  If purge required, press the FF key when the review infusion summary screen displays (at step 11) and before confirming parameters. Follow on-screen prompts. CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...
  • Page 30 1. With the infusion running, press and hold down the ↑ arrow key to increase the rate, press YES to confirm 2. Confirm that the rate entered displays and that the infusion time remaining corresponds to the rate change CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...
  • Page 31 Place pump in lockbox and activate keypad lock if required, according to local policy.  If purge required, press the FF key when the review infusion summary screen displays (at step 7c) and before confirming parameters. Follow on-screen prompts. CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...
  • Page 32 1. With the infusion running, press and hold down the ↑ arrow key to increase the rate, press YES to confirm 2. Confirm that the rate entered displays and that the infusion time remaining corresponds to the rate change CME Medical T34 Operation Manual Rev 1.4 CME Medical T34 Operations Manual Rev 1.4...
  • Page 33 4.9 CHANGE PUMP CONFIGURATION VIA CHANGE SET UP MENU WARNING: the following instructions will affect the operation/functionality of the T34. Set up parameters should only be changed by clinical or technical staff with user code access rights only and the authority to change pump settings. Do not change any parameters unless you clearly understand the significance of the parameter and the effect the change will have on the operation and/or functionality of the pump.
  • Page 34 4.10 CHANGE PROGRAM LOCK ON (fixed duration) TO LOCK OFF (change duration) WARNING: the following instructions will affect the operation/functionality of the T34. Set up parameters should only be changed by clinical or technical staff with user code access rights only and the authority to change pump settings. Do not change any parameters unless you clearly understand the significance of the parameter and the effect the change will have on the opera- tion and/or functionality of the pump.

  • Page 35: Appendices

    Operation: Indicators: 4 Line LCD display (122 x 32 pixels) , Dual colour operation LED When a problem is detected, the T34 displays the following alarm messages, sounds an audible alarm and the LED lights red: Alarms: Occlusion or Syringe Empty...

  • Page 36: Limited Warranty

    If, after inspection, CME Medical or its designated representative is unable to identify a problem, CME This Warranty is the sole and entire warranty pertaining to CME Medical’s products and is in lieu of and Medical or its designated representative reserves the right to invoice purchaser for said inspection.

  • Page 37: Contact Details

    Clinical Support Training01253 220158 clinical@cmemedical.co.uk clinical@cmemedical.co.uk Service and Maintenance 01253 220135 service@cmemedical.co.uk service@cmemedical.co.uk Website Online Training (e-learning) Technical training: 01253 220135 service@cmemedical.co.uk service@cmemedical.co.uk Clinical training: 01253 220158 clinical@cmemedical.co.uk clinical@cmemedical.co.uk CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...

  • Page 38: Index

    Modes of operation 3, 16-17, 19 Notes 5 Occlusion 5 Occlusion alarm 15 Occlusion pressure 15, 20, 21, 35 Packaging 7, 23, 36 Plunger 9, 12, 18 Post occlusion bolus 11 CME Medical T34 Operations Manual Rev 1.4 CME Medical T34 Operation Manual Rev 1.4...
  • Page 39 CME Medical. To order additional copies of this manual, or other related manuals, contact CME Medical Head Office.
  • Page 40 Medical UK Ltd Tel: 01253 894646 Kincraig Business Park, Fax: 01253 896648 Kincraig Road, email: info@cmemedical.co.uk Blackpool FY2 0PJ www.cmemedical.co.uk...
