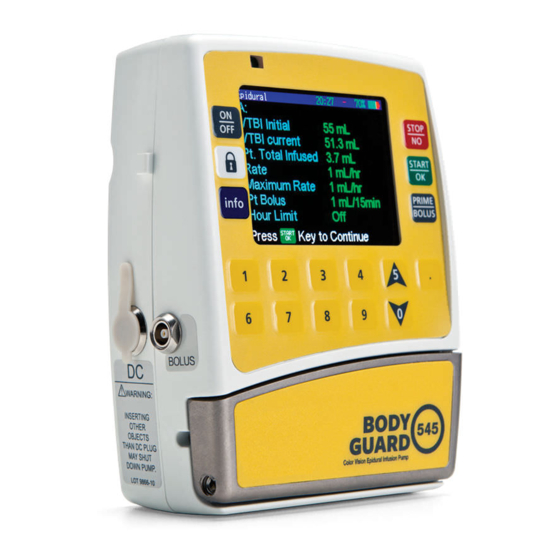

CME Medical Bodyguard 545 Quick User Manual

CME Medical Bodyguard 545 Quick User Manual

Pain management pump device training is rcn-accredited

Advertisement

alerts, alarms and troubleshooting

When an alErT is activated:
The infusion continues, LED indicator light remains green, intermittent beeps are heard approx. every
3/4 mins and a screen message alternates with the infusion running screen.
When an alarM is activated:
The infusion stops, the LED indicator light turns red, a continuous audible alarm activates and a screen
message displays indicating the cause.
Press
STOP/NO
to mute alarms and follow screen prompts.
Screen
Description
Alert: Approximately 30 minutes of battery life remaining.
Low Battery
Connect to mains power.
Alert: Bag nearly empty, approximately 5mL volume remaining.
Near End
Prepare new bag, if applicable.
Pump has been left in the STOP state for more than 2 minutes with no key
presses. Press START/OK to resume, press STOP/NO to continue pause or
Pump Stopped
press and hold down STOP/NO for menu.
Battery power is depleted.
End Battery
Connect to mains power immediately. Place pump in charger or use the
Press Stop
battery cable to connect to the DC socket.
End of Infusion
Current infusion programme has completed.
Press STOP/NO
Either discontinue use or change bag to start a new protocol.
for Menu
Air in set or the set is occluded between the infusion bag and pump.
Air/Up Occlusion
If air is visible, disconnect set from patient and prime the set and resume
Check for air/
protocol. Check for occlusion source (kinked or trapped set).
occlusion
The set or access device is occluded (below pump).
Down Occlusion
Straighten the set and/or remove or open any clamp or clip. Change/flush
Check set/access
the access device.
The set is loaded incorrectly or user has loaded a non-proprietary set .Load
Missing Set Key
administration set with key in keyway. Check set is the correct dedicated
Load Set Key &
BodyGuard set.
Close Door
The pump door has opened during infusion.
Door Open
Check set is loaded correctly, close door and re-start infusion.
Close Door
A technical/Internal malfunction has occurred
System Error
Follow on screen prompts. User may be prompted to power off and on to
Press Info
rectify the problem.
Error (number)
If the problem cannot be rectified, power off and remove from patient use.
Follow local policy and contact service dept.
Send for Service
ColourVision Bodyguard
Pain Management Pump
Quick user guide
CME Medical Device Training Is RCN-Accredited

Keypad Lock

With the keypad lock activated, the user can STOP and START an infusion, and with the infusion running use
the INFO key to review infusion status.
Users cannot (for example) power off, rate change, change bolus or lockout time, deliver a clinician activated
bolus or go to the main menu with the keypad lock activated.

Accessing infusion summary

During an infusion, repeatedly press the INFO to access current infusion information:
volume infused/to be infused (VI/VTBI), battery level, Pt bolus attempts/given, Clinican Bolus, protocol review
screen and date & time
Note
o Refer to Operating Manual for full operating instructions
o Users must have undertaken training before operating this device
o Screen information/sequences may vary with different software versions and local pump configuration
Always follow screen prompts and before pressing keys to proceed, ensure selections made
correspond with what is required
CME
Medical UK Ltd
Tel: 01253 894646
Kincraig Business Park,
Fax: 01253 896648
Kincraig Road,
info@cmemedical.co.uk
Blackpool FY2 0PJ
www.cmemedical.co.uk
