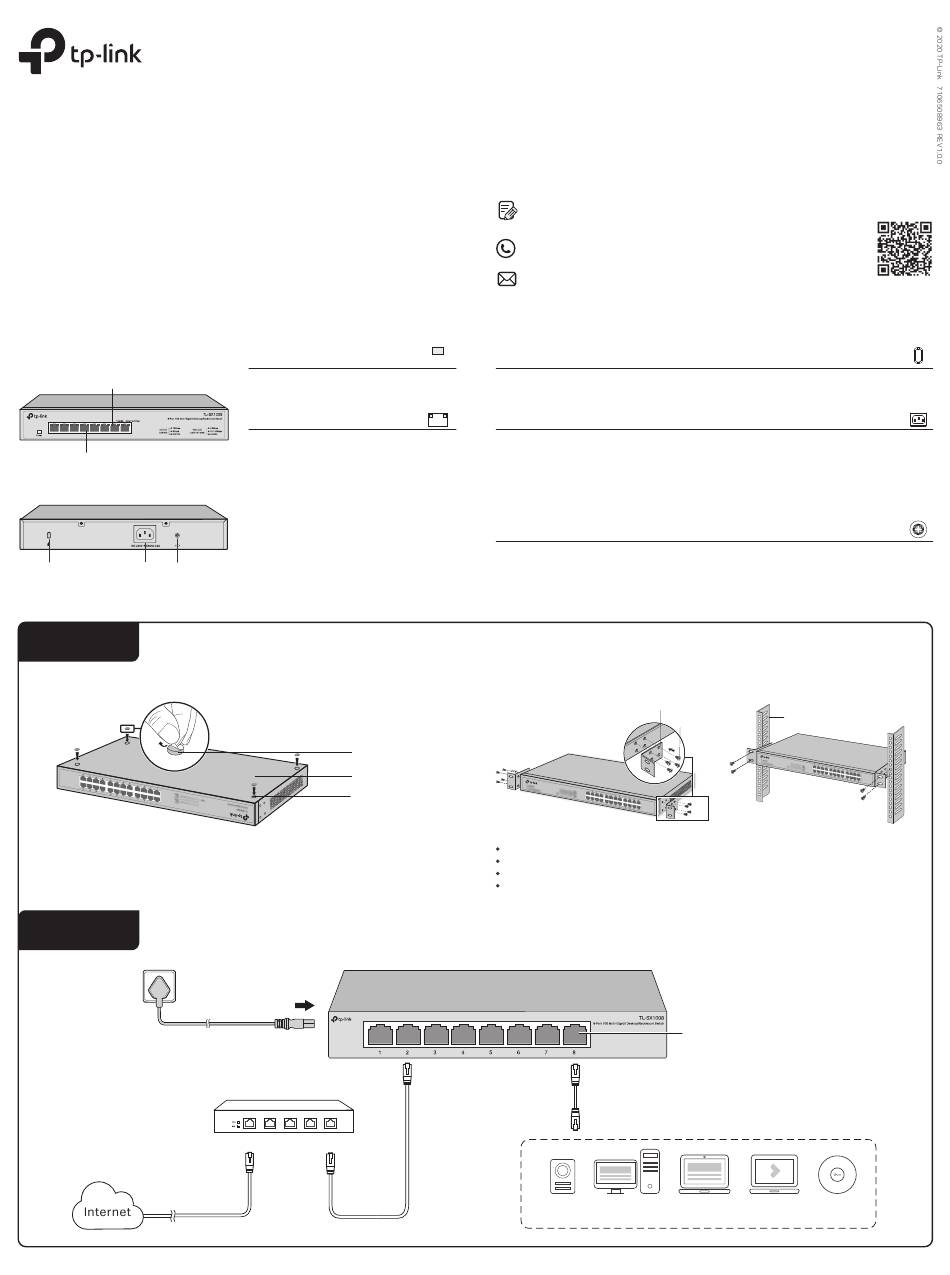

TP-Link TL-SX1008 V1 Installation Manual

Installation Guide
8-Port 10G Multi-Gigabit Desktop/Rackmount Switch
Appearance
Front Panel
LEDs
1 2 3 4 5 6 7 8
10 Gbps RJ45 Port
Rear Panel
Kensington Security Slot Power Socket Grounding Terminal
Note: The images in this guide are only for example and may not reflect your actual experience.
Installation
Method 1: Desktop Installation
Connection
AC Power Cord
Power
On: Power on
Off: Power off
Port LED
When one of the LED is on/flashing:
On: Connecting to a device but no activity.
Flashing: Transmitting or receiving data.
Left LED (10G/5G):
Green: Running at 10 Gbps.
Amber: Running at 5 Gbps.
Right LED (2.5G/1G/100M):
Green: Running at 2.5 Gbps.
Amber: Running at 100/1000 Mbps.
Feet
Bottom of the Device
Notch
Router
WAN Port LAN Port
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome
to email techwriter@tp-link.com.cn.
Kensington Security Slot
Power
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Power Socket
Plug the female connector of the power cord directly into the power socket and plug the
male connector into an AC outlet. Make sure that the voltage of the power supply meets
the requirement of the input voltage (100–240 V ~ 50/60 Hz).
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the
switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
Method 2: Rack Installation
Note:
Leave 5 to 10 cm gaps around the devices for air circulation.
Avoid placing heavy things on the device.
Place the device with its bottom facing downwards.
Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance
between devices for the purpose of heat dissipation.
10G Workstation
NAS/Server
Rack-mounting Bracket
Rack
Screw
Ethernet Ports (1-8)
Gaming 8K Video
Computer
2.5G
Wi-Fi 6 AP
