Instructions Manual
AWG5UP 11
Removable Hard Disk Upgrade Kit
075-0829-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P075082900*
075082900
Advertisement
Table of Contents
Related Manuals for Tektronix AWG5UP 11
Summary of Contents for Tektronix AWG5UP 11

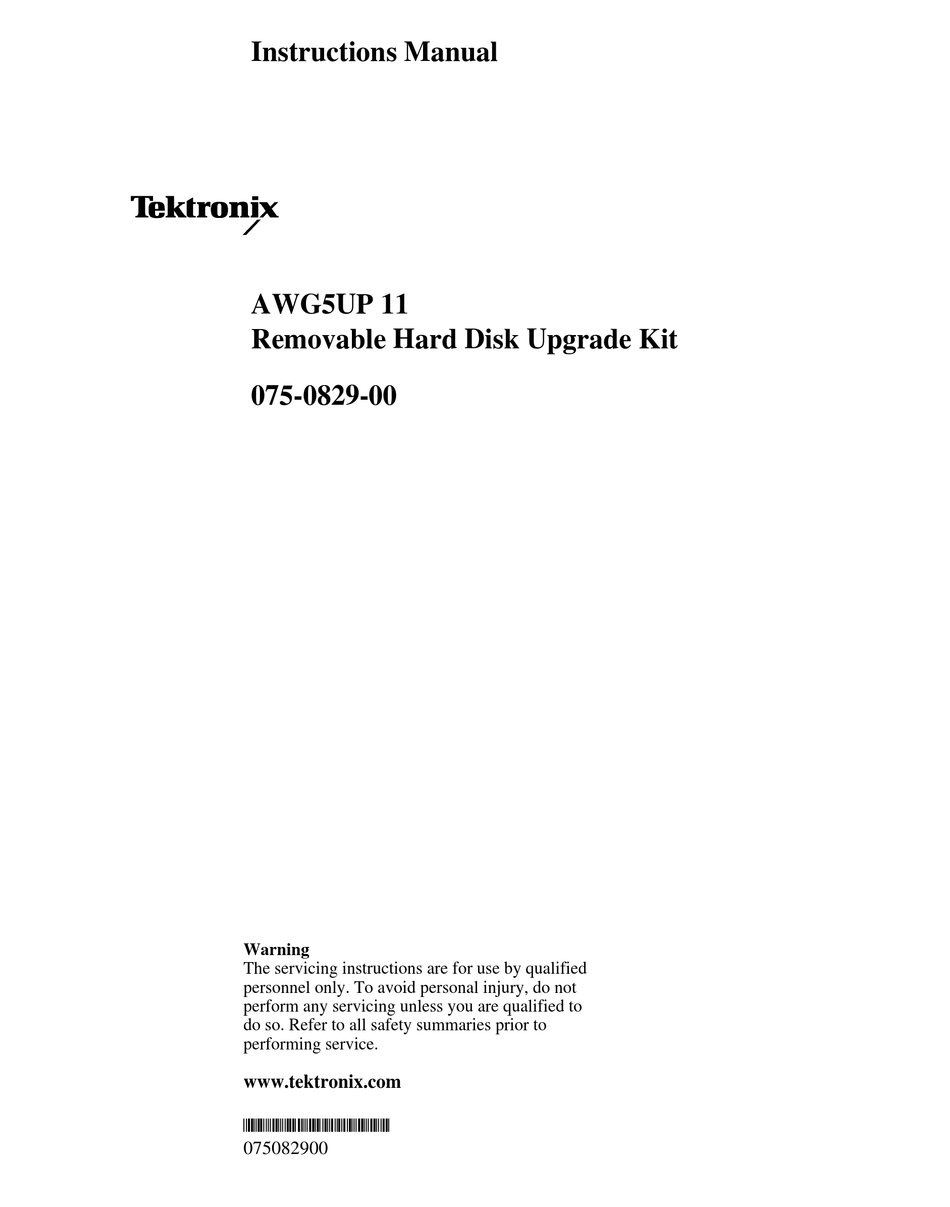

- Page 1 Instructions Manual AWG5UP 11 Removable Hard Disk Upgrade Kit 075-0829-00 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
- Page 2 Copyright © Tektronix Japan, Ltd. All rights reserved. Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved.
- Page 3 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
-
Page 5: Table Of Contents
Pasting the AWG5Up 11 Kit Label........ - Page 6 Table of Contents AWG5UP 11 Instructions Manual...
-
Page 7: General Safety Summary
Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. AWG5UP 11 Instructions Manual... - Page 8 WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: WARNING Protective Ground CAUTION High Voltage (Earth) Terminal Refer to Manual AWG5UP 11 Instructions Manual...
-
Page 9: Service Safety Summary
CRT enclosure. X-ray emissions generated within this product have been sufficiently shielded. Calendar (date and time) Backup Battery. This product contains a Lithium:poly–carbon monofluoride battery for calendar backup purposes. This battery is part of the CPU unit and is not replaceable. AWG5UP 11 Instructions Manual... - Page 10 Service Safety Summary AWG5UP 11 Instructions Manual...
-
Page 11: Introduction
PRE-ASSEMBLED CABINET & CHASSIS 174-5006-00 CABLE, ASSY:FLAT,L=270MM 334-1377-50 MARKER,IDENT:ID 348-A144-00 DAMPER 129-A593-00 SPACER,POST:PLASTIC 8MM 210-A014-00 WASHER,PLAIN 211-A159-00 SCREW MACHINE:M3X12MM,W/WASHER 071-1500-00 MANUAL,TECH;USER GUIDE;REMOVABLE HARD DISK DRIVE;AWG520Opt11,AWG5UP 11 075-0829-00 MANUAL,TECH;INSTRUCTION FOR AWG520 ADD OP11,REMOVABLE HARD DISK DRIVE;AWG5UP 11 AWG5UP 11 Instructions Manual... -
Page 12: Table -2: Parts List
348-1314-00 122 (cm) GASKET,SHIELD:FINGER TYPE,BE-CU -101 437-0514-00 CABINET,ASSY:CABINET FOOT,STAND & CARRYING HANDLE BUILD ON AWG520 RHD CABINET(437-0512-XX) 334-1377-50 MARKER,IDENT:ID 071-1500-00 MANUAL,TECH;USER GUIDE;REMOVABLE HARD DISK DRIVE;AWG520Opt11,AWG5UP 11 075-0829-00 MANUAL,TECH;INSTRUCTION FOR AWG520 ADD OP11,REMOVABLE HARD DISK DRIVE;AWG5UP 11 AWG5UP 11 Instructions Manual... -
Page 13: Figure -1: Kit Parts
Introduction Figure -1: Kit parts AWG5UP 11 Instructions Manual... -
Page 14: Equipment List
Item no. Name Description Screwdriver handle Accepts Phillips–driver bits #1 Phillips tip Phillips–driver bit for #1 screw size #2 Phillips tip Phillips–driver bit for #2 screw size Flat–blade screwdriver Screwdriver for removing standard-headed screws Pliers Standard tool AWG5UP 11 Instructions Manual... -
Page 15: Installation Instructions
Installation Instructions The following instructions explain how to install the AWG5UP 11 upgrade kit to your AWG520 instrument. Execute these items in the order they are described. Installation Procedure To install the new Removable Hard Disk Drive Kit, perform the following steps. -
Page 16: Cabinet Removal
Unplug the interconnect cable from J100 on A50 AWG board. c. Remove the two screws on the bottom and another two from the right side. d. Lift the CPU unit up and out from the main chassis. AWG5UP 11 Instructions Manual... -
Page 17: Figure -2: Cpu Unit Removal
Using a screwdriver with a size Phillips #2 tip, remove the two screws securing the hard disk and flash disk bracket to the frame on the right side of the CPU Unit. See Figure -3 AWG5UP 11 Instructions Manual... -
Page 18: Exchange The Flat Cable
When your instrument is rackmounted AWG520: NOTE. Remove the handle, the handle caps, the flip stand and the feet from the new cabinet. Refer to the AWG510 & AWG520 Arbitrary Waveform Generator Service Manual for details. AWG5UP 11 Instructions Manual... -
Page 19: Connect The Flat Cable
1. Install the top cover with four screws. Label 2. Paste the AWG5UP 11 Kit label on the AWG520 rear panel. 3. Remove the protective backing from the 334-1377-50 kit label and place it on the rear panel of the instrument. - Page 20 Installation Instructions AWG5UP 11 Instructions Manual...
