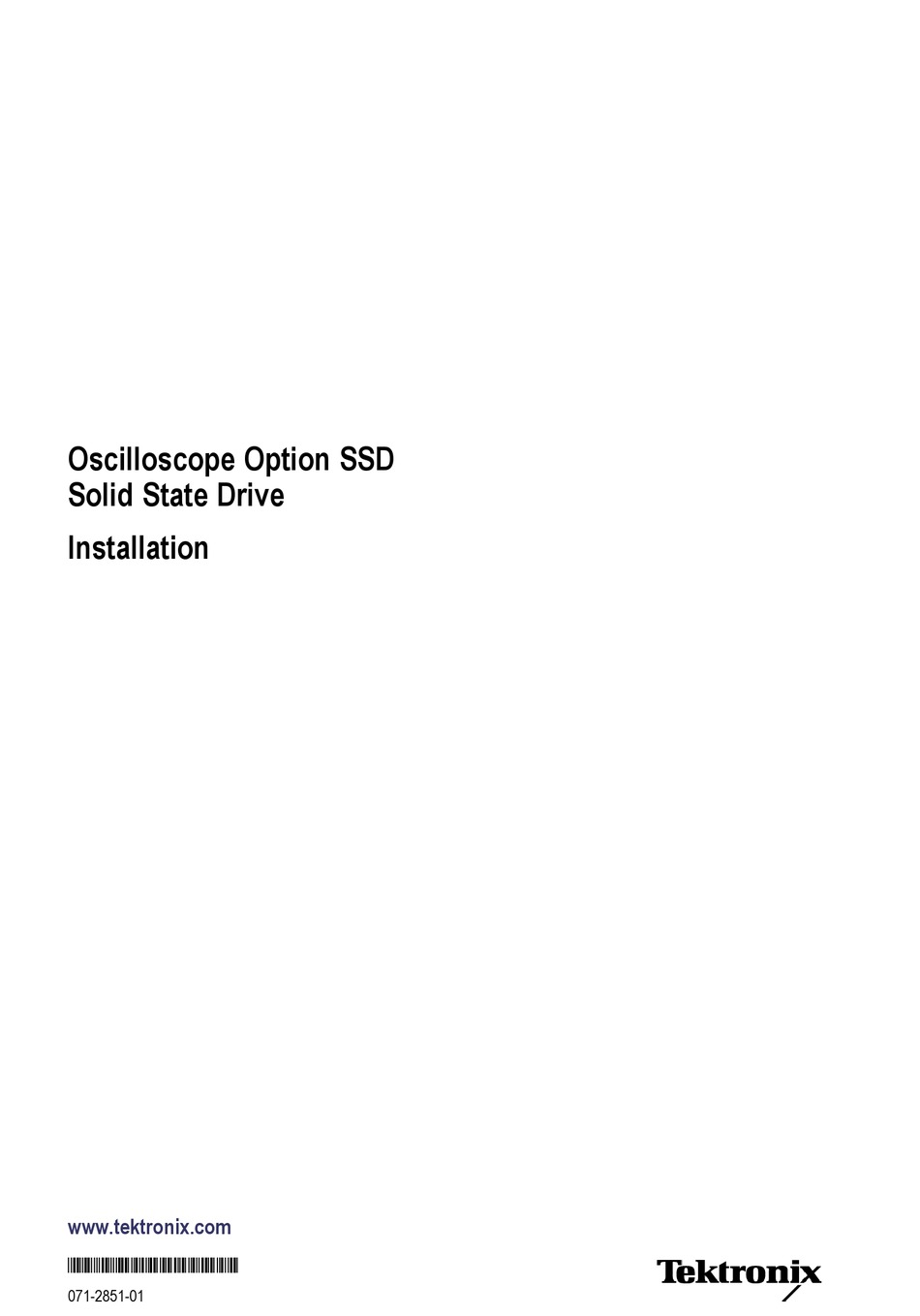

- Page 1 Oscilloscope Option SSD Solid State Drive Installation www.tektronix.com *P071285101* 071-2851-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Installation Instructions
Instrument features are the same with the solid state drive as with the standard drive. The solid state drive is faster and more rugged than a standard drive. For a list of available options, see the Tektronix Web site (www.tektronix.com) or your Tektronix representative. - Page 4 Installation Instructions Removal and Installation Refer to the graphic when using the following procedure: 1. Power off the instrument. 2. For DPO/MSO5000 instruments, remove the drive cover. 3. Loosen the thumb screw(s) and remove the hard drive as shown. 4. Install the solid state drive as shown, and then tighten the thumb screws to secure the drive in the instrument.
