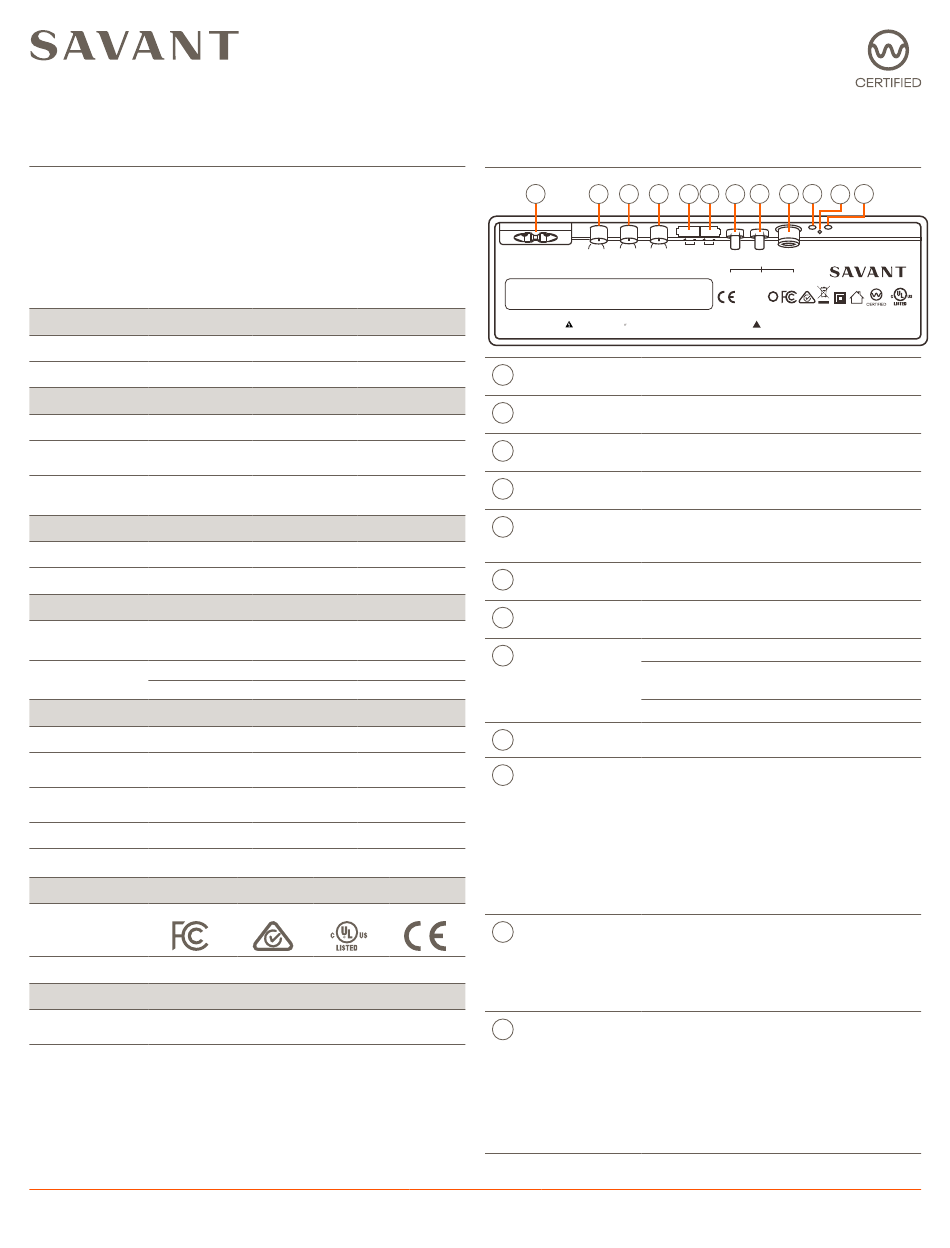

Savant® Smart Audio WiSA Sub 1 Quick Reference Guide
Box Contents

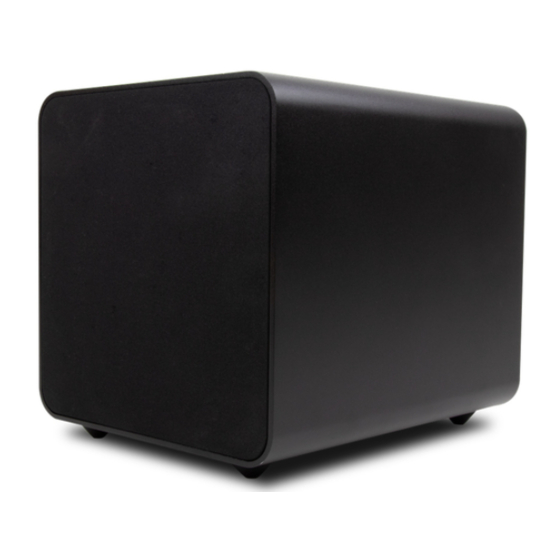

(1) Smart Audio WiSA Sub 1 (SPK-S1WSx-xx)
(2) 2-Pin Screw Down Connector (028-0884-xx)
(1) Power Cord (064-0480-xx)
(1) Pair of White Gloves
(1) Product Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions (with Grill)
Height
8.0 in
SPK-S1WSx
(20.4 cm)
14.0 in
Shipping
(35.56 cm)
Weight
Shipping Weight 18.3 lb (8.3 kg)
Net Weight 15.2 lb (6.9 kg)
Power
100 - 120V AC (50/60Hz)
Input Power
220 - 240V (50/60HZ)
WiSA input: 2.5 W
Standby Power
Consumption
Analog input: 1.25 W
Operating Parameters
Low Pass Filter 60 - 160 Hz
Low Pass Filter
12 / 24 dB/octave
Slope
Frequency
30hz - 160 hz +/- 0.5 dB
Range
Wattage 200 Watts
Streaming Quality Up to 24 bit / 96kHz High Resolution Audio
Regulatory
FCC Part 15B
Safety and
Emissions
RoHS Compliant
Minimum Support Requirements
Software
da Vinci 9.2
Release
SPK-S1WSx-xx Quick Reference Guide | 009-1886-02
Copyright © 2021 Savant Systems, Inc. | 210118
Width Depth
7.5 in 9.1 in
(19.16 cm) (23.0 cm)
14.0 in 13.0 in
(35.56 cm) (33.02 cm)
C Tick
UL CE
Input Panel (Bottom)
A
B C
AC 100-120V -50/60Hz
220-240V -50/60Hz Min Max 60 160 Hz
200W Volume LPF
Achtung: Gefahr Eines Elektr
Assembled in China
Schlages - Nicht Ö nen!
AC Power
A
Input
Volume
B
Control
Low Pass
C
Filter
Phase Control
D
12V Trigger
E
Input
IR Input
F
LPF Slope
G
Power Mode
H
LFE Input
I
Status LED
J
Reset button
K
WiSA LED
L
1 of 2
G H J
D E F I
Status
0 180 Trigger IR LPF LFE In Reset
Power
In 12dB/24dB Mode
Phase In
On Audio Sense Trigger
0981
!
Attention: Risque Caution: Risk of Electric
!
D'Electocution - No Pas Ouvir! Shock - Do Not Open
Main power input.
Adjusts volume.
Adjusts the upper end of frequency
response.
Used to time-align the output signal from
the WiSA Sub to other speakers.
2-pin screw down connector. Used to
control ON/STANDBY settings based on
12V DC input signal.
2-pin screw down connector allowing for
IR control.
Controls the slope rate upper end
frequency response.
On: Device is always powered on.
Audio Sense: Power command sent with
active audio signal.
Trigger: Powers on with 12V Trigger Input.
RCA used for LFE input.
Off: Resetting, or is powered up and
booting the embedded firmware.
Green Fast Blinking: Updating.
Green Slow Blinking: Entering or finishing
an update.
Green: Normal operation.
Orange: Critical system error.
Orange Slow Blink: Standby power mode.
Hold for 10 seconds to disconnect
speaker from the network and forget any
associated WiSA devices.
Note: This will place the speaker in
Associate Mode.
Off: Forced Analog Mode.
Green Fast Blinking: Ready to pair.
Green Slow Blinking: Streaming audio.
Green: WiSA connected.
Orange: Audio is muted.
Orange Slow Blinking: WiSA module reset.
Orange Fast Blinking: Reconnecting.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
WiSA
L
K
Wisa
E475835
AV Equipment
For Indoor
Use Only
| 508.683.2500
