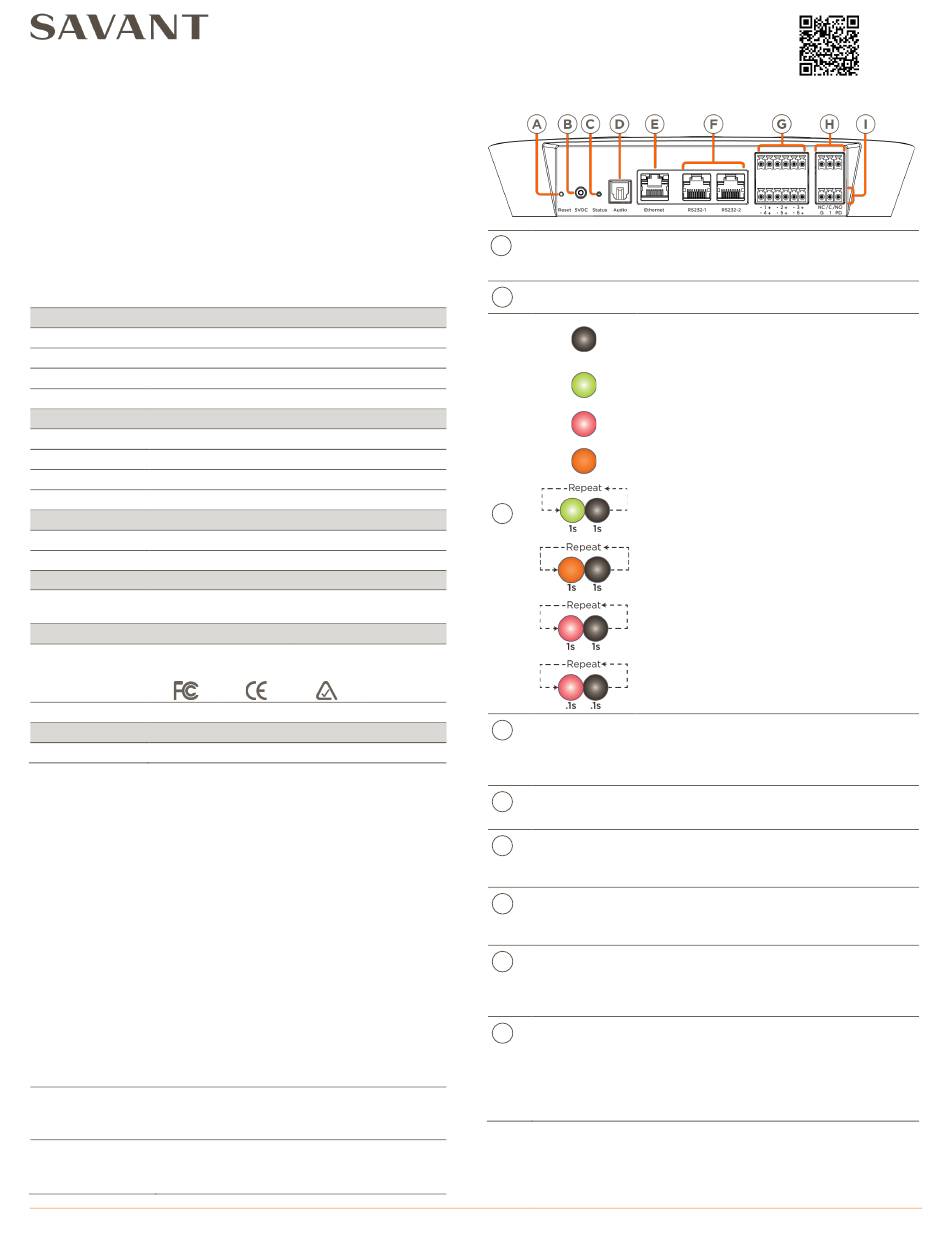

Savant Music Server1 Quick Reference Manual

Savant Music Server 1 - Quick Reference Guide
Box Contents

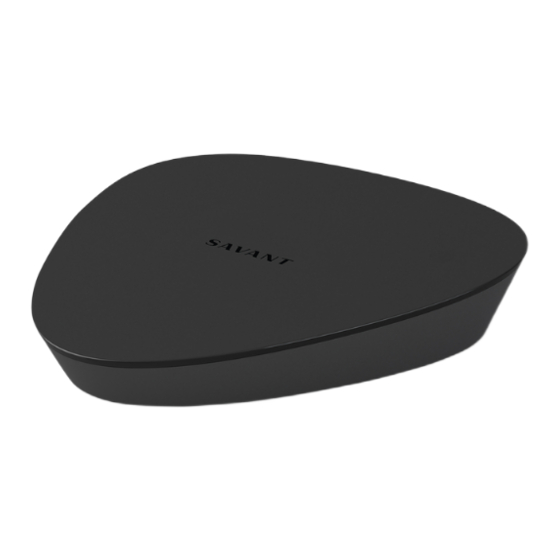

(1) Savant Music Server 1 (SMS-1001-xx)
(1) Installation Kit (075-0189-xx)
(1) 5V DC 3A Power Supply (025-0153-xx)
(includes interchangeable international adapters)
(1) Wall Bracket – Chassis Mount (074-0584-xx)
(1) Wall Bracket - Wall Mount (074-0585-xx)
(2) M3 x 6mm Flat-head Phillips Screw (039-0001-xx)
(2) 6-pin Screw Down Plug-in Connector (028-0664-xx)
(2) 3-pin Screw Down Plug-in Connector (028-0665-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Cooling 10 CFM (Cubic Feet per Minute)
Max BTU 34.1 BTU/hr
Dimensions and Weight (Product)
Height 1.58 in (4.00 cm)
Width 7.86 in (20.00 cm)
Depth 7.65 in (19.40 cm)
Weight Net: 1.3 lb (.59 kg) | Shipping: 2.1 lb (.95 kg)
Power
Input Power 5V DC 3A
Max Power 15 Watts
Audio
Digital to Analog
24 bit / 96 kHz
Conversion
Regulatory
Safety and FCC Part
Emissions 15
RoHs Compliant
Minimum Supported Release
Savant OS da Vinci 8.3
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components also
allow for more accurate troubleshooting when needed.
When making connections, connect all Savant devices to the same local
area network (LAN) or subnet as the Host. Savant recommends not
implementing any type of traffic or packet shaping in your network
topology for the Savant devices as this may interfere with performance.
To ensure that the IP Address will not change due to a power outage, a
static IP or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, IP Addresses can be managed from a single UI avoiding the
need to access devices individually. Setting DHCP reservation varies
from router to router. Refer to the documentation for the router to
configure.
Network Changes
If the IP Address range in your network has changed, Savant
recommends the following steps to refresh any IP connection and
ensure the controller is communicating with the network correctly.
1. Disconnect the SMS-1001 from the AC
power source.
Cycle Power
2. Wait 15 seconds and then reconnect.
1. Disconnect the Ethernet (LAN) connection
Hot Plug Ethernet
from the SMS-1001.
(LAN) Connection
2. Wait 15 seconds and then reconnect.
SMS-1001-00 | 009-1469-01 | 170330
Copyright © 2017 Savant Systems, LLC
CE C-Tick ICES-003
Rear Panel
A Reset - Clears the network settings. Press and hold the Reset
button for five seconds until the Status LED blinks red rapidly;
then release. See Rapid Red Blink below.
B
Input power - Connect included power supply
C
Audio - Toslink (Optical) digital audio output port.
D
Connects to a digital audio input on a switcher chassis for
streaming Savant Music. An adapter may be required to connect
to ports other than Toslink.
Ethernet - 8-pin RJ-45 female
E
10/100/1000 Base-T auto negotiating
RS-232 - 8-pin RJ-45 female (2 Ports)
F
Transmits and receives serial data to and from a serial
controllable device. Supports CTS/RTS handshaking.
IR - 6-pin screw down plug-in connector.
G
Transmits IR signals via an IR Flasher (5V tolerant) to devices
with an IR input or IR receiver.
Relay - 3-pin screw down plug-in connector.
H
Offers both a Normally Open (NO) and Normally Closed (NC)
output port to control devices that require a basic On/Off
operation. DC Voltage Max: 30V DC 1A.
GPIO - 3-pin screw down plug-in connector. Can be configured
I
as either an input or output control port.
GPIO Input – Processor will look for a low state (< .8 V DC) or
high state (> 2.4V DC)
GPIO Output – Can provide a binary output range from 0-12 V
DC 150 ma maximum.
The SMS-1001 has a built-in single stream of Savant Music, which includes
popular music streaming services powered by Autonomic MirageOS
(Streaming service fees may apply).
1 of 2
For Product Info
Off: The processor is resetting, or system is
powered up and is currently booting the
embedded firmware.
Green: Connected/Communicating with the
Pro System Host.
Red: During the firmware update process, a
problem occurred and a reset will be initiated.
Orange: Firmware update is in process.
Green Blinking: Was assigned an IP Address
and is communicating with the local network,
but not communicating with Pro System Host.
Orange Blinking: A valid link-local IP Address
is established and SMS-1001 is trying to
connect with the Pro System Host.
Red Blinking: Embedded firmware is running,
but SMS-1001 has not received an IP Address.
Rapid Red Blink: The reset button was pressed
and held for five seconds and the SMS-1001 is
performing a factory reset.
