5. Structure assembling

5.1

Step1 Z-Axis assembling

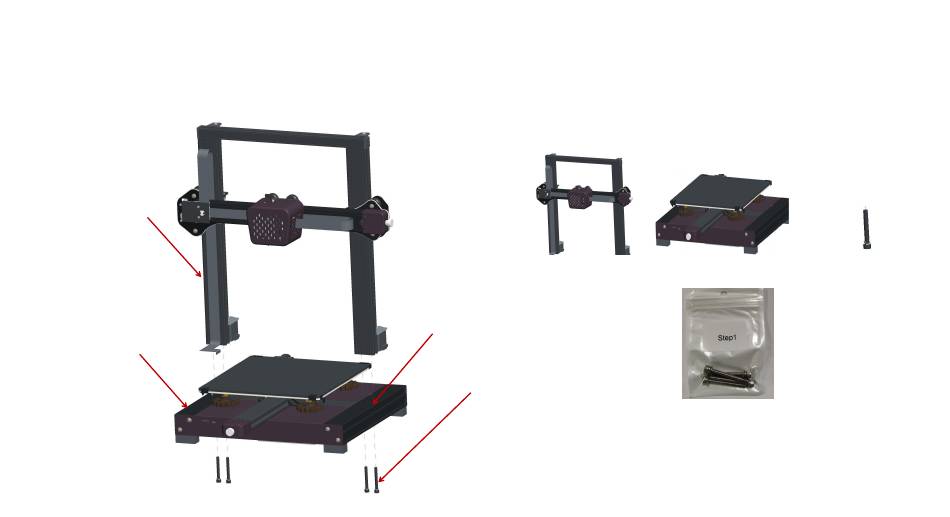

Assembling parts
1
3 . M 5 * 4 4 s c r e w * 4 P C S
1 . Z - a x i s p a r t ( w i t h E 2 8 5 ) 2 . B a s e
G r o o v e
2
3
Instruction
1.Put the Z-axis vertical into the groove at the base
2.Use 4pcs M5*44 screw to fasten from the bottom of base
with the Z-axis
