Step1: Printer Configuration - ATOMSTACK Cambrian User Manual

8.2 Step1: Printer configuration

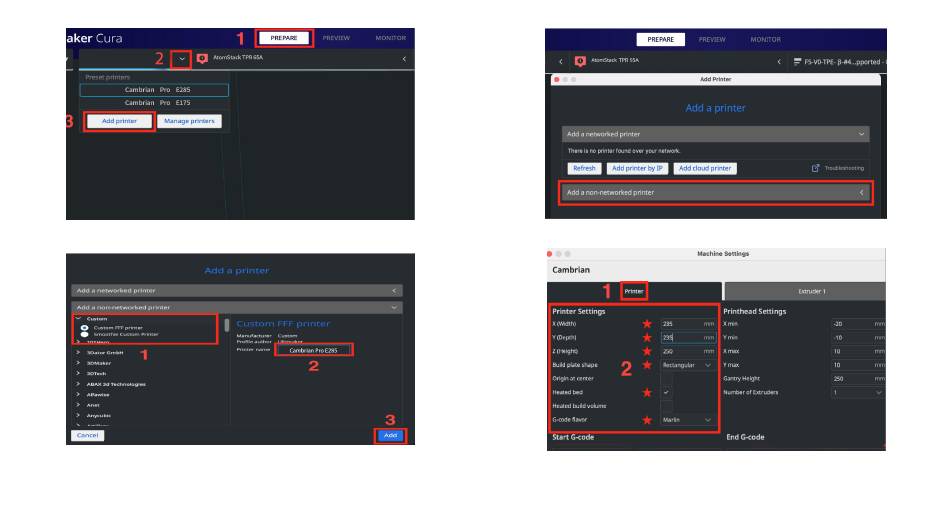

1. Load the Cura software, under the "PREPARE" tab, expand the
device list, and click the "Add a printer" button
3. In the expanded list, select the "Custom" group, check the
"Custom FFF Printer" radio button, then change the printer name to
"Cambrian Pro E285" on the right page, and finally click the "Add"
button
2. Unfold the "Add a non-networked printer" list in the pop-up
window
4. In the pop-up window, under the "Printer" tab, set the
parameters of "Printer Settings" as shown in the figure, X:235mm
Y:235mm Z:250mm, heating bed selection "√", G-code style
selection "Marlin.
