INSTRUCTION MANUAL
MOVISTROB
Type MINISTROB 3000 N/A; 3000 B/A
Image:
Type 3000 N/A
Art.No.: 3110 / 3111
3000 N/A,
Art.No.: 3110 – Art.No.: 3111
3000 B/A,
Art.No.: 3118
BBE Bamberg + Bormann - Electronic GmbH
D-59757 Arnsberg / Neheim-Hüsten
Internet: http://www.bbe-electronic.de
e-mail: info@bbe-electronic.de
®
Series 3000
Wiebelsheidestraße 45
Tel.: 0049 (0)2932-547760
Fax: 0049 (0)2932-34675
(230V AC or 115V AC)
(12 V DC )
Advertisement
Related Manuals for BBE MOVISTROB 3000 Series
Summary of Contents for BBE MOVISTROB 3000 Series
- Page 1 INSTRUCTION MANUAL ® MOVISTROB Series 3000 Type MINISTROB 3000 N/A; 3000 B/A Image: Type 3000 N/A Art.No.: 3110 / 3111 3000 N/A, Art.No.: 3110 – Art.No.: 3111 (230V AC or 115V AC) 3000 B/A, Art.No.: 3118 (12 V DC ) BBE Bamberg + Bormann - Electronic GmbH Wiebelsheidestraße 45 D-59757 Arnsberg / Neheim-Hüsten...
- Page 2 Legend: N = AC Power B = DC Power (Battery operated) A = Analogue Introduction ® Each MOVISTROB product has to pass through various controls during its production phases and must also undergo very strict and conscientious function and quality tests before leaving the factory for delivery to our clients. ®...

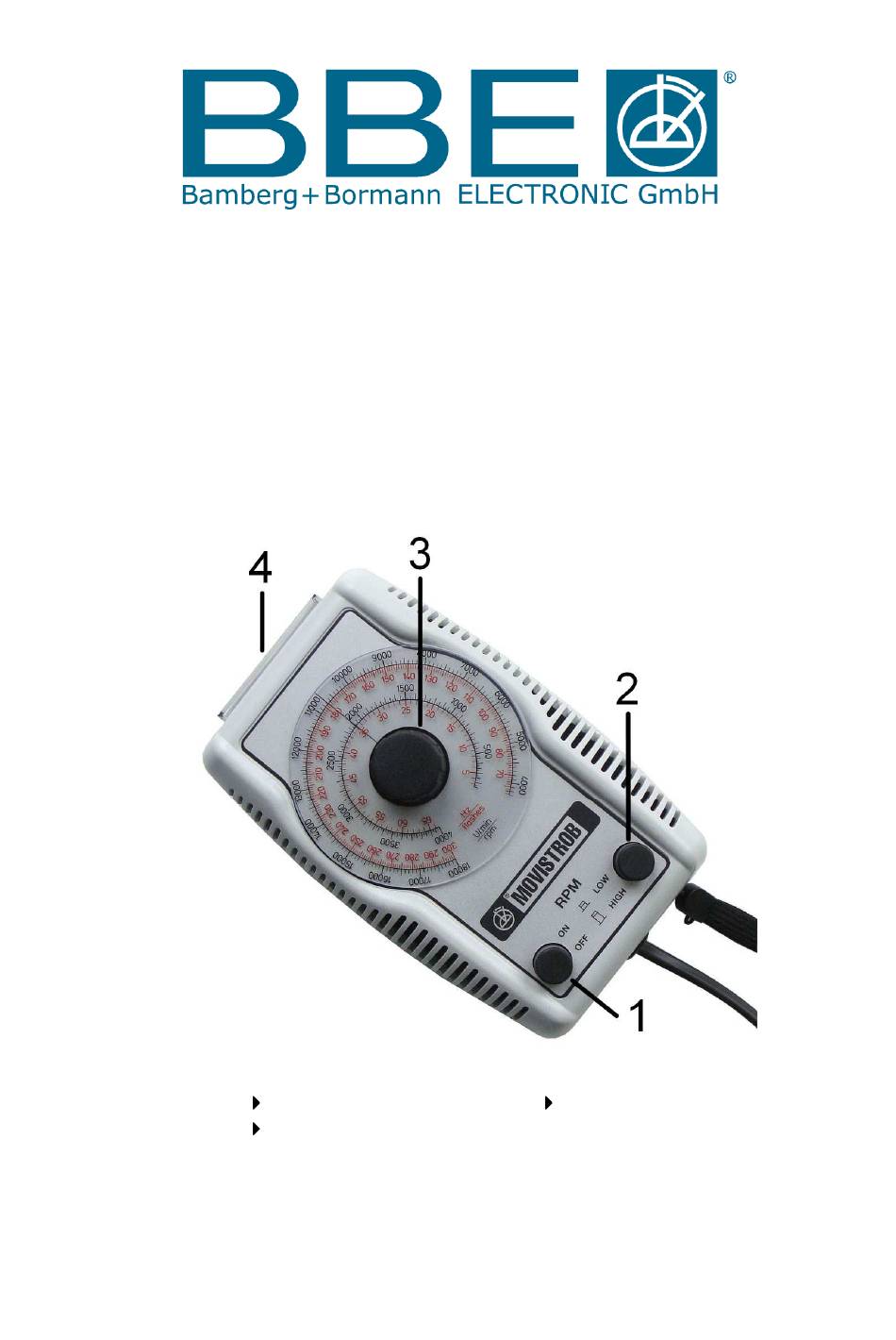

- Page 3 Controls and Indicators The instrument carries the following controls and functional components (see figure): Mains Pushbutton ( 1 ) switches on the instrument by depressing the pushbutton Flash Frequency Range Selector Pushbutton ( 2 ) sets flash frequency of the two power ranges Low Range: 150→...
- Page 4 The observed phase of the rotation in stopped image, i.e. the rotational angle at the moment of the flash, is purely accidental. Through brief changes in of the flash frequency however the desired phase position can be adjusted approximately. In the same way, RPM fluctuations can cause a change in phase position. Exact phase stability, i.e.
- Page 5 Objects with a finite rotational symmetry In many cases the axis of the rotating object is an m-number symmetrical axis, i.e. the object overlaps itself through a rotation about the angle 2/m. In the example of the disc this is achieved through m equal marks which are arranged in the corners of a regular m-angle.
-
Page 6: Technical Specifications
CAUTION When connecting the MINISTROB type 3000 B/A with the battery, please make sure: connecting: Pin 1 plus Pin 2 n.c. Pin 3 minus (ground) Maintenance and Repair If the instrument is suspected of being unsafe, take it out of operation permanently. This is usually the case when the unit shows physical demage, no sign of functioning or stress beyond the tolerable limits. - Page 8 Information in accordance with battery regulation With regard to the sale of batteries and accumulators, we are obligated as retailer to inform you as consumer about the following: you are legally obligated to return batteries and accumulators. You can return them after using in our shop, in a communal collection point or in local shops.
