2GIG-PAD3-433
WIRELESS KEYPAD
INSTALL INSTRUCTIONS
The Wireless Keypad (2GIG‐PAD3‐433) is a wall‐mounted unit
designed for use as a secondary keypad for the 2GIG alarm system. It
communicates with the Go!Control Panel using the 433 MHz
frequency and provides users with the following features:
• Arm the system in Stay or Away mode
• Disarm the system
• Activate Fire and Panic emergency functions

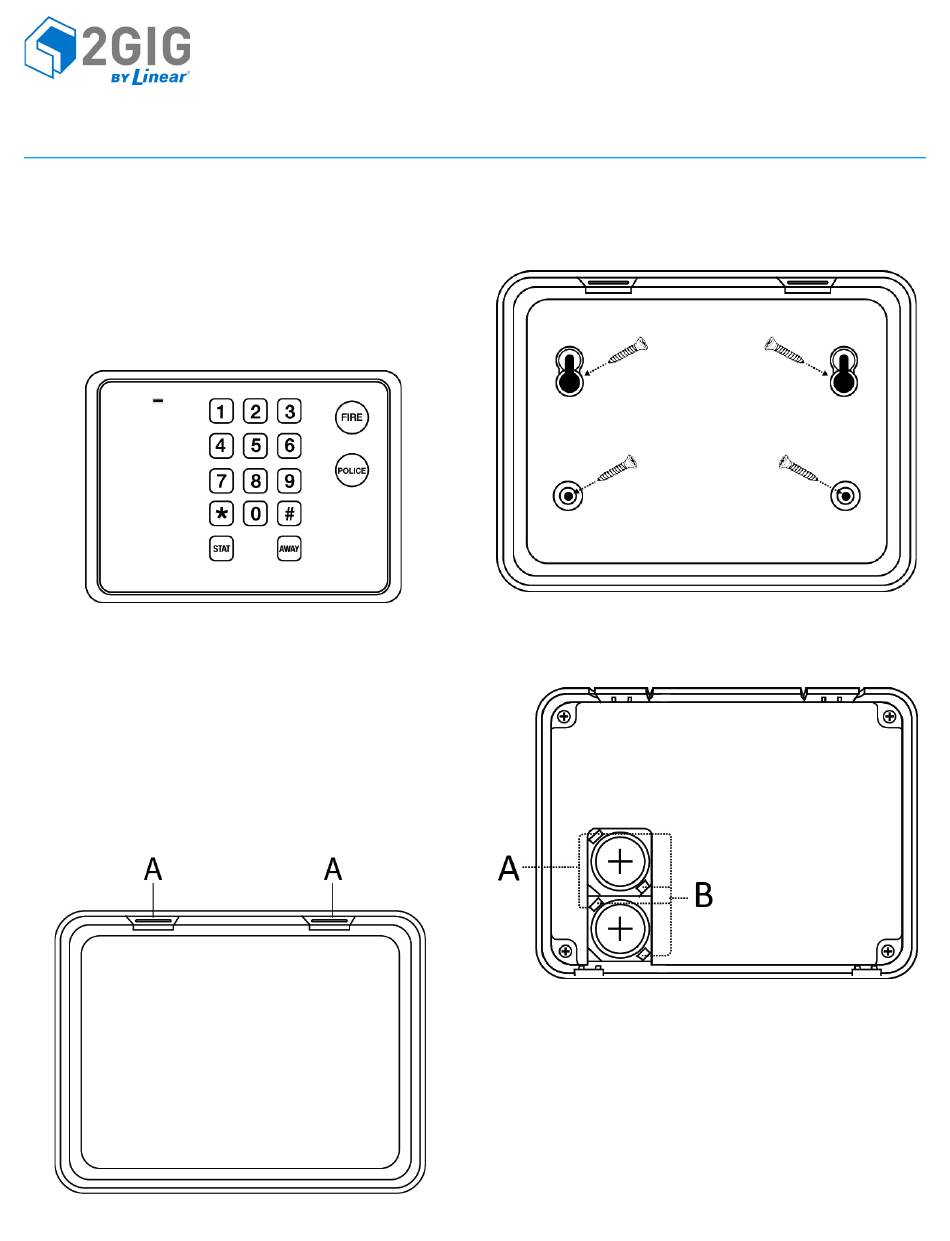

Figure 1 Wireless Keypad
Box Contents
Verify that the package includes the following:
• 1—Wireless Keypad
• 4—Plastic Wall Anchors and Phillips Head Screws
• 2—3V Lithium Coin Batteries (installed)
Mounting the Wireless Keypad
To mount the wireless keypad:
Press the hinged tabs on top of the keypad to separate the
1
mounting plate from the unit (see A below).
—Hinged Tabs
Figure 2 Wireless Keypad
2 Place mounting plate in the desired location on the wall and
ensure the plate is level.
Secure the mounting plate to the wall using the Plastic Wall
3
Anchors and screws.
—
Figure 3 Wireless Keypad Mounting Plate
Activate the batteries by removing the two battery pull tabs (see A
4
below) located under the metal clips on each battery (see B
below).
Figure 4 Wireless Keypad—Battery Compartment
5 Reattach the mounting plate to the unit by aligning the bottom of
the plate with the unit and tilting the unit up until it snaps into
place.
NOTE: To learn how to program the Wireless Keypad into the
Control Panel, see the Control Panel's Installation &
Programming Guide.
Copyright © 2014 Linear LLC 1
