- Page 1 Installation & Commissioning Instructions Positive Input Ventilation Unit Air+ PIV AIR+PIV/L PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS 220-240V~50Hz...
- Page 3 Installation and Wiring Instructions for the Air+ PIV Unit. IMPORTANT: READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION SAFETY AND GUIDANCE NOTES 1. DO NOT install this product in areas where the following may be present or occur: 1.1. Excessive oil or a grease laden atmosphere.
-
Page 4: Introductory Notes

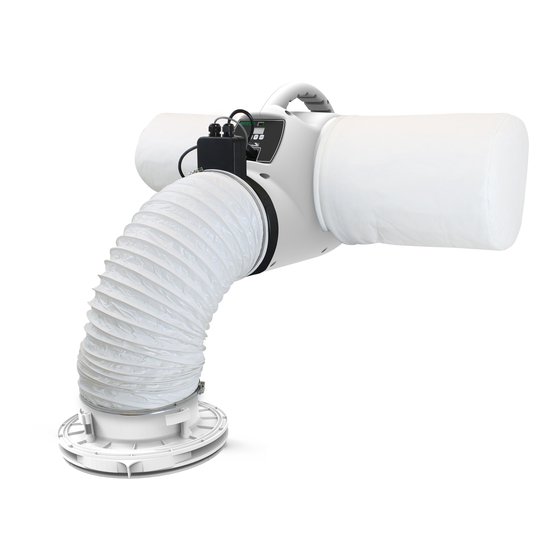

A. INTRODUCTORY NOTES The Airtech Air+ PIV is a positive input ventilation unit, designed to be installed in the loft of a dwelling to continually supply filtered fresh air into the building. The system consists of a fan unit, a heater unit and a diffuser with a short length of flexible ducting. -
Page 5: Typical Installation
This will not only assist the operation of the Air+ PIV, but may also help to prevent future expensive structural damage caused by inadequate air movement. It should be noted that there can never be too much ventilation in a loft. - Page 6 Hanging method: The Air+ PIV can be hung from a roof beam (Fig. 2). Fix the screw eye to a convenient roof beam. Use the cord provided to loop through the eye and around the handle on the unit, there are various notches for the cord to run through, tie the two ends together using a suitable knot such as an over hand or fisherman’s knot.
- Page 7 The diffuser should not be situated within 1m of a smoke detector, however if this is not possible the AIR+ PIV has provisions to blank off the airflow for up to two quadrants of the diffuser. Two blanking plates are provided; these should be pushed on to the support struts inside the diffuser as required.
- Page 8 Only a qualified electrician or installer should connect the power supply to this unit. The Air+ PIV is designed for operation from a single-phase alternating current source (220-240V AC). A 2m integral mains flying lead is connected to the unit for connection to a 3A switched fused spur.
-
Page 9: Start-Up Sequence
Air+ PIV Unit D. START UP SEQUENCE When the unit is switched on it will first run through a period of system checks. -
Page 10: Lock Feature
Air filter The Airtech Air+ is provided with G4 filters which are suitable for removing airborne contaminants such as pollen and dust. Where improved filtration is required optional F7 filters can be used. These filters are effective at removing finer particles such as particulate emissions from diesel engines. - Page 11 Commissioning Menu Structure For most installs the standard features allow for ample adjustability, however in some install situations the advanced features will improve the unit’s performance or acceptability. By reducing the trickle speed threshold the fan will run at Energy Recovery speed more often, this would be helpful in a property with persistent damp problems.
- Page 12 If the ambient loft temperature exceeds 27°C, the Air+ PIV automatically switches to standby (no airflow) unless in Radon mode. If in Radon mode, the Air+ PIV will switch to standby (no airflow) if the ambient loft temperature exceeds 50°C.
-
Page 13: Servicing And Maintenance
Energy Recovery speed To exit the menu press MODE for 5 seconds or wait for the screen to switch off. Below is a list of spares and accessories available for the Air+ PIV: Spares and Accessories Part Number... - Page 16 Facilities exist. Check with your local authority for recycling advice. AIRTECH ENVIRONMENTAL SYSTEMS STATHE ROAD, BURROWBRIDGE, SOMERSET, TA7 0RY Tel : 0800 378 017 EU Authorised Representative: Airtech Solutions Bedrijvenweg 17 7442 CX Nijverdal Nederland authorisedrep@airtechsolutions.nl 477591 M 0521...
