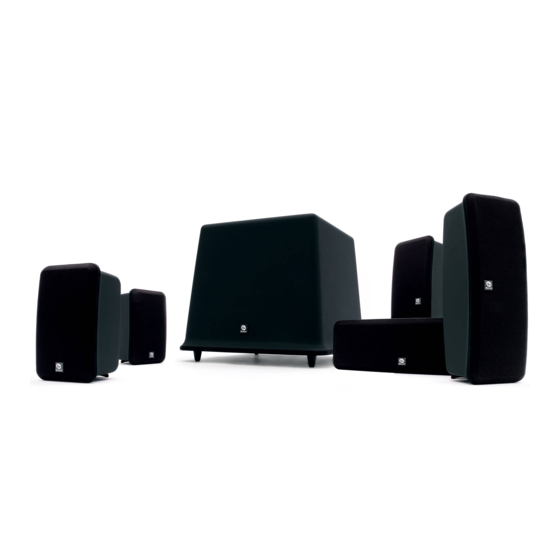

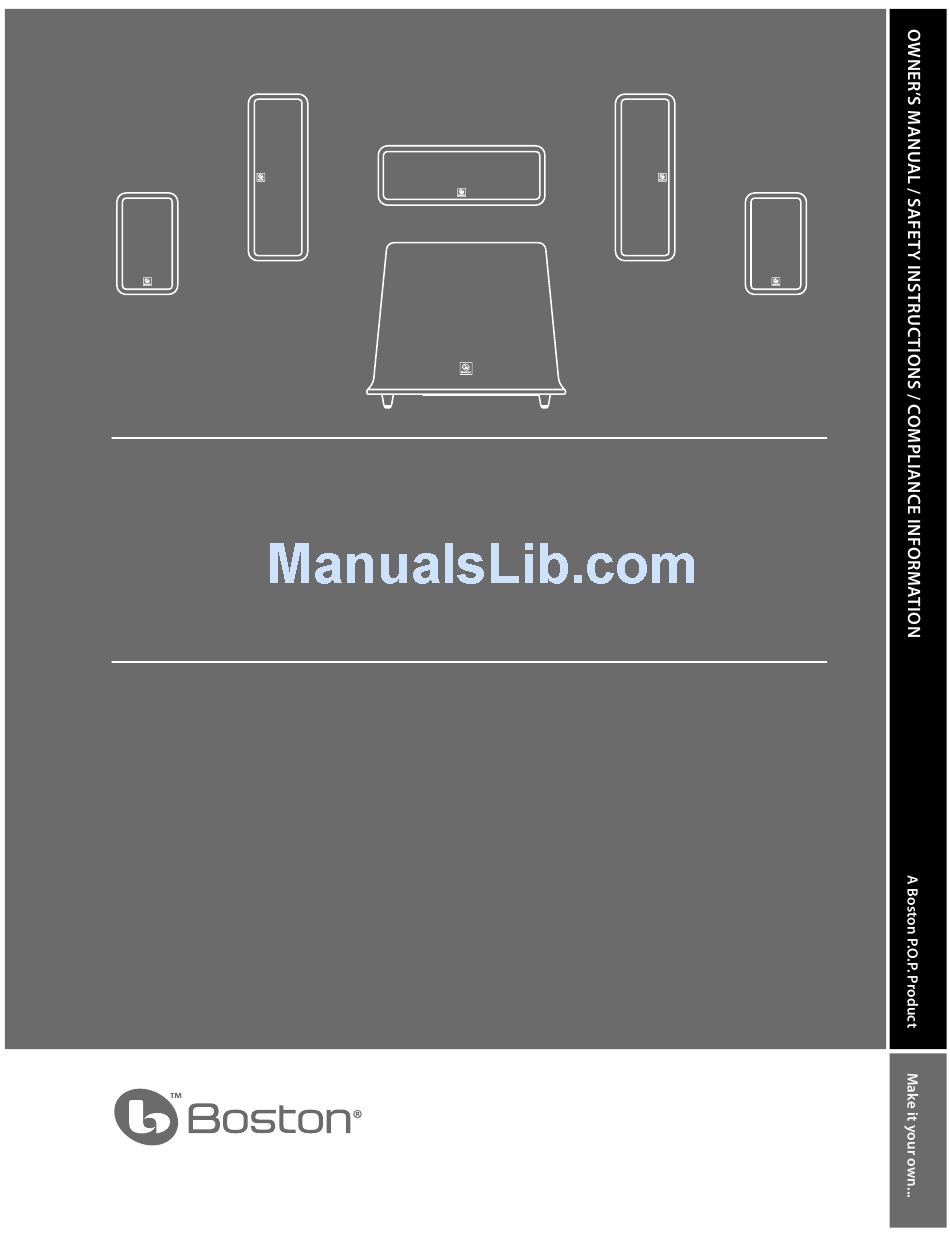

Horizon MCS 130 5.1 Surround Speaker System Español Italiano Horizon MCS 130 Horizon MCS 130 Sistema de Altavoces Sistema surround 5.1 Surround 5.1 Français Svenska Horizon MCS 130 Horizon MCS 130 Système de haut-parleurs 5.1 Surroundhögtalarsystem multimédia 5.1 Deutsch MCS 130 5.1 Surround Lautsprechersystem...
IMPORTANT SAFETY INSTRUCTIONS This symbol found on the apparatus indicates hazards arising from dangerous voltages. This symbol found on the apparatus indicates the user should read all safety statements found in the user manual. This symbol found on the apparatus indicates double insulation.
(2.27kg) MCS 130 Introduction Thank you for purchasing a Boston Acoustics Multi-Channel Speaker System. These speakers incorporate high-quality components that produce the famous Boston sound. The MCS 130 is ideally suited for use as a 5.1 channel solution in a high-quality home theater or music system.
Unpacking the System Carefully unpack the system. If there is any sign of damage from transit, report it immediately to your dealer and/or delivery service. Keep the shipping carton and packing materials for future use. Open the package and verify the following contents: (3) LCR (left, center, right) speakers (2) Surround speakers (1) Subwoofer...
Speaker Connections After your speakers are properly placed, you are ready to wire your system. First, turn off all system power. Use the speaker wire include with the system to make your connections. Please see the illustration below for guidance connecting the wires to the MCS 130 satellites and center channel.
Subwoofer Controls Power On/Auto/Standby Plug the subwoofer AC cord into a wall outlet. We do not recommend using the outlets on the back of the receiver. Set the power switch to the desired setting. OFF – The subwoofer is off and will not produce any sound. You may want to turn your subwoofer off if you will not be using it for some time or wish to conserve electricity.
Limited Warranty Boston Acoustics warrants to the original purchaser of our MCS 130 system that it will be free of defects in materials and workmanship in its mechanical parts for a period of 5 years from the date of purchase. The warranty period for the electrical components of MCS 130 is 1 year.
INSTRUCCIONES DE SEGURIDAD IMPORTANTES Este símbolo que aparece en el aparato indica riesgos deri-vados de voltajes peligrosos. Este símbolo que aparece en el aparato indica que el usua-rio debe leer todas las declaraciones de seguri- dad que apa-recen en el manual del usuario. Este símbolo que aparece en el aparato indica la pres- encia de un doble aislamiento.
Introducción al MCS 130 Gracias por comprar un Sistema de Altavoces Multicanal de Boston Acoustics. Estos altavoces incorporan componentes de alta calidad que crean el famoso sonido Boston. El MCS 130 se adapta idealmente para una utilización como una solución de canales 5.1 en un cine en casa o en un sistema musical de alta calidad.
Desembalaje del Sistema Desembale cuidadosamente el sistema. Si hay alguna señal de daños debidos al transporte, informe de ello inmediatamente a su distribuidor y/o a su servicio de entrega. Conserve el cartón de envío y los materiales de embalaje para una futura utilización. Abra el paquete y verifi que que contiene los siguientes elementos: (3) Altavoces LCR (izquierdo, central, derecho) (2) Altavoces surround...
Page 11
Conexiones del Altavoz Después de que los altavoces estén colocados adecuadamente, está preparado para cablear su sistema. Primero, apague la energía del sistema. Utilice el cable de altavoz incluido en el sistema para realizar las conexiones. Utilice la ilustración siguiente como guía sobre la conexión de los cables a los satélites y al canal central del MCS 130 Para la conexión de su receptor, consulte su manual de usuario.
Controles del Subwoofer Conexión/Auto/Standby Enchufe el cable de CA del subwoofer en una toma de pared. No recomendamos utilizar las tomas de salida de la parte trasera del receptor. Ajuste el interruptor de potencia en el control deseado. OFF – El subwoofer está apagado y no producirá ningún sonido. Puede querer apagar su subwoofer si no lo va a utilizar durante algún tiempo o si desea no gastar electricidad.
Es responsabilidad suya instalarlo y utilizarlo de acuerdo con las instrucciones suministradas, proporcionar un transporte seguro hasta un re-presentante de servicio autorizado de Boston Acoustics, y presentar la prueba de compra en la forma del recibo de venta cuando sea necesa-rio el servicio.
Page 14
INSTRUCTIONS IMPORTANTES RELATIVES À LA SÉCURITÉ Ce symbole affi ché sur l’appareil indique les risques résultant des tensions dangereuses. Ce symbole affi ché sur l’appareil indique que l’utilisateur doit lire toutes les déclarations de sécurité énoncées dans le manuel de l’utilisateur. Ce symbole affi ché...
2.27kg Présentation du MCS 130 Merci d’avoir acheté un système de haut-parleurs multicanaux Boston Acoustics. Ces haut-parleurs sont constitués de composants de très haute qualité qui produisent le célèbre son Boston. Le système MCS 130 se prête parfaitement à une utilisation en tant que solution à...
Déballage du système Déballez le système avec précaution. Si vous constatez tout endommagement causé lors du transport, signalez-le immédiatement à votre revendeur et/ou au service de livraison. Conservez le carton d’expédition et les emballages pour toute utilisation ultérieure. Ouvrez le carton et vérifi ez qu’il contient les éléments suivants : (3) Haut-parleurs LCR (gauche, central et droit) (2) Haut-parleurs ambiophoniques (1) Caisson de basse...
Page 17
Connexions des haut-parleurs Afi n de garantir une performance optimale, respectez les polarités lors des connexions des haut-parleurs, comme indiqué dans le graphique. Connectez chaque terminal + situé au dos de l’amplifi cateur ou du récepteur au terminal + (rouge) respec- tif de chaque haut-parleur.
Commandes du caisson de basse Marche/Arrêt / Auto / Veille Branchez le fi l d’alimentation du caisson de basse dans une prise murale. Il n’est pas recommandé d’utiliser les prises situées au dos du récepteur. Réglez l’interrupteur d’alimentation sur le paramètre de votre choix. OFF –...
Boston Acoustics. Cette garantie se limite à ce produit Boston Acoustics et ne couvre pas les dégâts subis par tout matériel qui lui est associé. Cette garantie ne couvre pas le coût d’un enlèvement ou d‘une réinstallation. Cette garantie est nulle si le numéro de série a été...
Page 20
IMPORTANTI ISTRUZIONI PER LA SICUREZZA Questo simbolo riportato sul dispositivo indica la presenza di rischi derivanti da voltaggi pericolosi. Questo simbolo riportato sul dispositivo indica che l’utente deve leggere tutte le istruzioni di sicurezza riportate nel Manuale dell’utente. Questo simbolo riportato sul dispositivo indica la presenza di una doppia coibentazione.
Page 21
(2.27kg) Introduzione a MCS 130 Grazie per aver acquistato il sistema di altoparlanti multicanale di Boston Acoustics. Questi altoparlanti contengono componenti di alta qualità, che permettono di ottenere il famoso audio Boston. Il sistema MCS 130 è particolarmente adatto per l’impiego in soluzioni canale 5.1 all’interno di sistemi audio o home theater di alta qualità. Esso è dotato di tutti gli elementi necessari per la realizzazione di un sistema di altoparlanti tipico, comprendente cavi per gli altoparlanti, altoparlanti LCR (Left, Center, Right, sinistro, centrale, destro) e un subwoofer.
Disimballaggio del sistema Eff ettuare con cautela il disimballaggio del sistema. Nel caso in cui si rilevino eventuali segni di danneggiamento durante il trasporto, contattare immediatamente il proprio rivenditore e/o servizio di consegna. Conservare il pacchetto di spedizione e i materiali di imballaggio per impieghi futuri. Aprire l’imballaggio e verifi care la presenza dei seguenti componenti: (3) Altoparlanti LCR (sinistro, centrale, destro)
Connessione degli altoparlanti Dopo aver defi nito la collocazione desiderata per gli altoparlanti, è possibile procedere al cablaggio del sistema. Innanzitutto, spegnere tutte le alimentazioni del sistema. Utilizzare il cavo degli altoparlanti incluso nel sistema per eff ettuare le connessioni. Vedere la fi gura seguente per ulteriori indicazioni sulla connessione dei cavi ai satelliti e al canale centrale del sistema audio MCS 130.
Controlli del subwoofer Accensione/modalità Auto/modalità Standby Collegare il cavo AC del subwoofer a una presa di corrente a parete. Si consiglia di non utilizzare le uscite sul retro del ricevitore. Impostare come desiderato l’interruttore di alimentazione. OFF – Il subwoofer è spento e non produrrà alcun suono. Si consiglia di spegnere il subwoofer nel caso di mancato utilizzo per diverso tempo o per risparmiare energia.
Boston Acoustics. Questa garanzia è limitata al prodotto Boston Acoustics e non copre i danni di alcun dispositivo associato. Questa garanzia non copre i costi di rimozione o reinstallazione. Questa garanzia non è valida in mancanza del numero di serie del dispositivo.
Viktiga säkerhetsanvisningar Denna symbol som sitter på apparaten indikerar faror pga högspänning. Denna symbol som sitter på apparaten indikerar att användaren bör läsa alla säkerhetsanvisningar i bruksanvisningen. 1. Läs dessa anvisningar. 2. Bevara dessa anvisningar. 3. Respektera alla varningar. 4. Följ alla instruktioner. 5.
(2.27kg) MCS 130 Inledning Tack för att du har köpt detta fl erkanals högtalarsystem från Boston Acoustics. Dessa högtalare innehåller komponenter av mycket hög kvalitet som återger det berömda Bostonljudet. passar perfekt för användning i en 5.1-kanalslösning i ett home theater- eller musiksystem av hög kvalitet.
Page 28
Att packa upp systemet Packa upp systemet försiktigt. Om det fi nns tecken på transportskador, ska du omedelbart meddela din återförsäljare och/ eller transportföretaget om detta. Spar kartongen och förpackningsmaterialet för framtida bruk. Öppna förpackningen och kontrollera att följande delar fi nns med: (3) LCR (vänster, central, höger) högtalare (2) Surroundhögtalare (1) Subwoofer...
Page 29
Högtalaranslutningar Då du har installerat dina högtalare korrekt, är du klar för anslutningen av systemet. Först ska du stänga av strömmen till systemet. Använd högtalarkabeln som medföljer systemet för att utföra anslutningarna. Se illustrationen för vägledning om anslutning av kablarna till satelliterna och mittkanalen för MCS 130. För anslutningen till din mottagare, se mottagarens bruksanvisning.
Page 30
Subwooferkontroller Ström på/automatisk/standby Anslut subwooferns AC-kabel till vägguttaget. Vi rekommenderar dig att inte använda uttagen på baksidan av mottagaren. Ställ strömbrytaren i önskat läge. AV – Subwoofern är avstängd och producerar inget ljud. Du kanske vill stänga av subwoofern om du inte ska använda den länge eller spara elektricitet.
Begränsad garanti Boston Acoustics ger den ursprunglige köparen av modellen MCS 130 en garanti att systemet är fritt från materiella defekter och fabrikationsfel i dess mekaniska delar för en period på 5 år från och med köpdatumet. Garantiperioden för de elektriska komponenterna i modellen MCS 130 är 1 år.
Wichtige Sicherheitshinweise Dieses Symbol auf dem Gerät weist auf gefährliche Stromspannungen hin Dieses Symbol auf dem Gerät weist darauf hin, dass der Anwender alle Sicherheitshinweise dieser Anleitung lesen sollte. Dieses Symbol auf dem Gerät weist auf doppelte Isolierung hin. 1. Lesen Sie diese Anleitung 2.
(2.27kg) MCS 130 Einführung Vielen Dank für den Kauf dieses Boston Acoustics Multikanal Lautsprechersystems. Diese Lautsprecher enthalten hochwertige Komponenten, die den berühmten Boston Sound erzeugen. Das MCS 130 ist ideal als 5.1 Kanal Lösung in einem qualitativ hochwertigen Home Theater oder Musiksystem. Das MCS 130 ist vollständig und enthält alles, was Sie für ein typisches Laut- sprechersystem benötigen, einschließlich Lautsprecherkabel, LCR Lautsprecher (links, mitte und rechts) und einem Basslaut-...
Auspacken des Systems Packen Sie das System vorsichtig aus. Sollten Sie Anzeichen eines Transportschadens feststellen, wenden Sie sich unverzüglich an den Händler und/oder Lieferservice. Bewahren Sie den Frachtkarton und das Verpackungsmaterial zur späteren Wiederverwendung auf. Öff nen Sie das Paket und überprüfen Sie folgenden Inhalt: (3) LCR Lautsprecher (2) Surround Lautsprecher (1) Basslautsprecher...
Page 35
Lautsprecherverkabelung Nachdem die Lautsprecher Ihren Wünschen entsprechend angeordnet sind, können Sie nun Ihr System verkabeln. Schalten Sie Ihr System zuerst aus. Verwenden Sie zur Verkabelung die mitgelieferten Lautsprecherkabel. Bitte beachten Sie die Illustration, die Ihnen zeigt, wie die Kabel an die MCS 130 Satelliten und den Mittelkanal angeschlossen werden. Der Anschluss an Ihren Receiver ist in dessen Gebrauchsanleitung beschrieben.
Basslautsprecher Einstellungen Ein/Auto/Standby Stecken Sie den Netzstecker des Basslautsprechers in eine Netzsteckdose. Es wird nicht empfohlen, die an der Rückseite des Receivers befi ndlichen Netzanschlüsse zu verwenden. Der Basslautsprecher verfügt über eine automatische Einschalt/ Standby Funktion. Ein LED Indikator neben dem Lautstärkeregler zeigt den Betriebszustand des Basslautsprechers an. AUS –...
Netzstecker in einer funktionierenden Netzsteckdose steckt. Eingeschränkte Garantie Boston Acoustics garantiert dem Erstkäufer unseres MCS 130 Systems für einen Zeitraum von 5 Jahren ab Kaufdatum, dass diese frei sind von Materialfehlern und Verarbeitungsmängeln. Die Garantiezeit für die elektrischen Komponenten der MCS 130 beträgt 1 Jahr.
