Summary of Contents for Pulsar ACCOLADE 2 LRF XP50 PRO

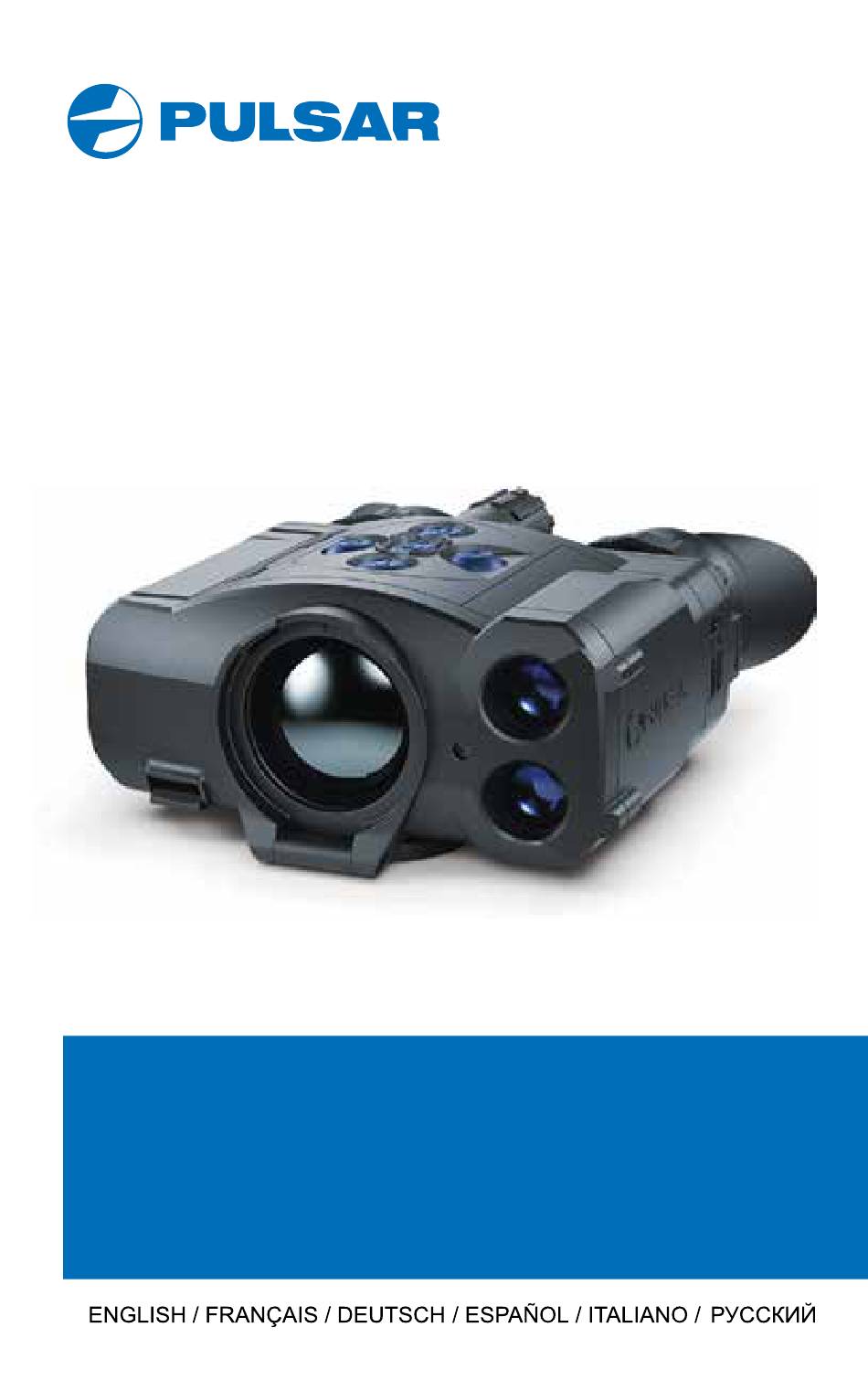

- Page 1 Quick Start Guide ACCOLADE 2 Thermal Imaging LRF XP50 PRO Binoculars...
- Page 2 Detailed product description and complete user manual are available for download on our official web-page: www.pulsar-nv.com/glo/products/33/thermal-imaging-binoculars/ Attention! Les jumelles d’imagerie thermique Accolade nécessitent une licence s’ils sont exportés hors de votre pays. Compatibilité électromagnétique. Ce produit est conforme à la norme européenne EN 55032:2015, Classe A.
- Page 3 ACCOLADE 2 LRF Quick Start Guide ENGLISH Thermal Imaging Binoculars ACCOLADE 2 LRF 6-10 FRANÇAIS Jumelles d’imagerie thermique ACCOLADE 2 LRF DEUTSCH 11-15 Wärmebildferngläser ACCOLADE 2 LRF 16-20 ESPAÑOL Binoculares térmicos ACCOLADE 2 LRF 21-25 ITALIANO Binocoli termici ACCOLADE 2 LRF 26-30 РУССКИЙ...
-
Page 4: Package Contents
ENGLISH Package Contents • Accolade 2 LRF Thermal Imaging Binocular • IPS7 Battery Pack • Battery Pack charger with mains adapter • USB cable • Quick User Manual • Warranty sheet • Carrying case • Neck strap • Lens-cleaning cloth Starting Operation Powering on and image setting Open the lens cover (10). -
Page 5: Components And Controls
Components and Controls Navigation Button MENU button UP Button ON/OFF Recording button REC Navigation Battery Pack button DOWN Interpupillary Interpupillary distance distance adjustment adjustment rings rings Lens cover Lens focusing ring Dioptre adjustment rings Buttons Operation Short press Long press Button ON/OFF (1) Turning on device / Image Turning off device/... - Page 6 Connect the micro USB plug of the USB cable (12) to the micro USB port (13) • of the charger. Connect the other end of the microUSB cable to the mains adapter (14). • Plug the mains adapter (14) into a 100 - 240 V socket (15). •...
- Page 7 Hold down the UP button (2) for 2 seconds to deactivate the Scan Mode. • Stream Vision App Download the Stream Vision app to stream the image via Wi-Fi from the display of your Accolade LRF to a smartphone or tablet. Detailed instructions are available on the Internet at: www.pulsar-vision.com. ENGLISH...
-
Page 8: Specifications
Specifications MODEL ACCOLADE 2 LRF XP50 PRO 77461 MICROBOLOMETER Type uncooled Resolution, Pixels 640x480 Pixel Pitch, µm NETD, mК < 25 Frame Rate, Hz OPTICAL SPECIFICATIONS Magnification, x 2.5 - 20 Lens F50 mm, F/1.2 Field of View,°/m@100m, Horizontal 12.4/ 21.8 Eyepiece Focusing Range, Dioptre ±5...
