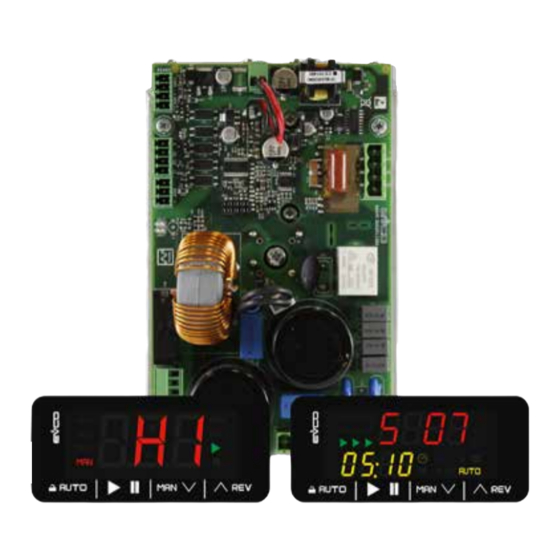

  • Page 1 EV3 Mix Inverter and keypad for food mixers User manual...

  • Page 2: Table Of Contents

    4.4  Inverter / Interface connection  CHAPTER 5. USER INTERFACE 5.1  Touch keys  5.2 Icons 5.2.1  Basic Interface  5.2.2  Plus Interface  5.3  Functions menu  5.3.1  Select/start manual cycle  5.3.2  Automatic select/start cycle with several stages  5.3.3  Reverse function  5.3.4  Edit Parameters  CHAPTER 6. OPERATION 6.1  Setting the speed  6.1.1  Basic Interface  6.1.2  Plus Interface  6.2  LED  144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 3: Digital Input

    CONTENTS 6.3  Digital inputs  6.3.1  Digital input 1  6.3.2  Digital input 2  6.3.3  Digital input 3  CHAPTER    7. PARAMETERS  7.1  Table of configuration parameters  CHAPTER    8. ALARMS  8.1  Table of alarms  CHAPTER 9. PARAMETERS MANAGER CHAPTER    10. WARRANTY  144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 4: Important Information

    IMPORTANT INFORMATION Liability and residual risks EVCO assumes no liability for any damage caused by the following (by way of example; this is not an exhaustive list): •  I nstallation/useforpurposesotherthanthosespecifiedand,inparticular,notadheringtothesafetyprovisionssetout by current regulations in the country in which the product is installed and/or contained in this manual;...

  • Page 5: Important Safety Information

    NOTICE indicates a situation not related to physical injuries but which,ifnotavoided, could damage the equipment. NOTE: T hemaintenance,repair,installationanduseofelectricalequipmentmustonlybeentrustedtoqualifiedpersonnel. QUALIFIED PERSONNEL Only suitably trained and experienced personnel capable of understanding the content of this manual and all documentation regardingtheproductareauthorisedtoworkonandwiththisequipment.Furthermore,thepersonnelmusthavecompleted coursesinsafetyandmustbeabletorecogniseandpreventtheimplieddangers.Thepersonnelmusthavesuitabletraining, knowledgeandexperienceatatechnicallevel,andbecapableofanticipatinganddetectingpotentialriskscausedbyusing theproduct,aswellaschangingthesettingsandmodifyingthemechanical,electricandelectronicequipmentfortheentire systeminwhichtheproductisused.Allpersonnelworkingonandwiththeproductmustbeentirelyfamiliarwiththerelevant standardsanddirectives,aswellassafetyregulations. 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 6: Safety Information Relating To The Product

    DANGER RISK OF ELECTRIC SHOCK OR MALFUNCTIONING OF THE EQUIPMENT Do not use damaged products or accessories. Thisdevicewasdesignedtooperateinnon-hazardousenvironments,excludingapplicationsthatgenerate,orcouldpotentially generate,hazardousatmospheres.Onlyinstallthisdeviceinareasandforapplicationswhicharereliablyfreefromhazardous atmospheres. DANGER RISK OF EXPLOSION • Onlyinstallandusethisdeviceinsitesthatarenotatrisk. • Donotinstallorusethisdeviceinapplicationswhicharecapableofgeneratinghazardousatmospheres,suchas applications that use flammable refrigerants. 144XXXME4.00 - 06/2020 - EV3 Mix...
  • Page 7 The EV3 Mix must be installed in a suitably ventilated environment to allow heat to dissipate. Thetemperatureofthedevicecanexceed80°C(176°F)duringoperation. WARNING HOT SURFACES • Avoidallcontactwithhotsurfaces. • Do not leave flammable or heat-sensitive components on or near hot surfaces. • Makesuretheproducthascooledsufficientlybeforehandlingit. • Makesuresufficientheatdissipationtakesplacebyperformingatestundermaximumloadconditions. WARNING MALFUNCTIONING OF THE EQUIPMENT •...

  • Page 8: Chapter 1. Introduction

    – Speed change during operation; – Motor alarm display. 1.1 COMPLIANCE 2014/35/UE: Low voltage directive applied in accordance with standard EN61800-5-1 for electrical safety. 2014/30/UE: Electromagnetic compatibility directive applied in accordance with standard EN61800-3 class C2. 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 9: Chapter 2. Technical Data

    Type of action: Pollution category: Overvoltage category: Nominal pulse voltage: 330 V Powersupply: 12Vdc±10% Consumption: 0.7 W Ambientoperatingconditions: 0...55°C(32...131°F)10…90%RHnon-condensing) Transportationandstorageconditions:-25...70°C(-13...158°F)10…90%RHnon-condensing Softwareclass: Ambientfrontprotection: IP65 2.2.1 Other technical information - Basic/Plus interfaces Serial communication port properties (SELV) RS-485 serial port: 1 RS-485 MODBUS RTU Master Serial port 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 10: Chapter 3. Mechanical Assembly

    ForEV3 Mix 0.75 kW models: DANGER RISK OF EXPLOSION Only install the equipment in a vertical position (condensers towards the bottom). 0.75 kW models 1.5 kW / 2.2 kW models Fig. 1. EV3 Mix installation position | 10 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 11: Dimensions - Inverter

    • Do not leave flammable or heat-sensitive components on or near hot surfaces. • Makesuretheproducthascooledsufficientlybeforehandlingit. • Makesuresufficientheatdissipationtakesplacebyperformingatestundermaximumloadconditions. mm (in.) 40 (1.57) 40 (1.57) 10 (0.39) Fig. 3. Minimum inverter installation distances - view from below 144XXXME4.00 - 06/2020 - EV3 Mix | 11...
  • Page 12 (in.) 40 (1.57) 40 (1.57) Fig. 4. Minimum inverter installation distances - front view 144XXXME4.00 - 06/2020 - EV3 Mix | 12...

  • Page 13: Installation - Basic/Plus Interfaces

    3.2 INSTALLATION - BASIC/PLUS INTERFACES mm (in.) Fig. 5. Installing Basic/Plus interfaces 3.2.1 Dimensions - Basic/Plus Interfaces mm (in.) Fig. 6. Basic/Plus interface dimensions 144XXXME4.00 - 06/2020 - EV3 Mix | 13...

  • Page 14: Chapter 4. Electrical Connections

    • Do not exceed the temperature and humidity ranges indicated in the technical data section. When the EV3 Mixisinstandbyandthemotorisnotrunning,thelatterremainslive. DANGER RISK OF ELECTRIC SHOCK Do not handle the motor when the EV3 Mix is in standby. | 14 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 15: Wiring Guidelines

    • Carry out a full start-up test. • Makesurethewiringiscorrectforthesettings. • Use shielded cables for all I/O and communication signals. • Use shielded cables for motor wiring. • Minimisethelengthoftheconnectionsasmuchaspossible,toavoidwindingthecablesaroundelectricallyconnectedparts. • Thesignal(digitalinputs,communicationandcorrespondingpowersupplies)andpowercablesfor the device must be routed separately. • Beforeapplyingthepowersupply,checkallthewiringconnections. 144XXXME4.00 - 06/2020 - EV3 Mix | 15...

  • Page 16: Wiring Diagram - Inverter

    Digital input 1 - Stop/Run Digital input 2 - Motor thermal switch Digital input 3 - Reset alarms Ingresso Alimentazione (*) NOTE: For board and motor output earthing, see paragraph "4.2.1 EARTHING" ON PAGE 17. 144XXXME4.00 - 06/2020 - EV3 Mix | 16...

  • Page 17: Earthing

    Fig. 7. Inverter earthing 4.3 WIRING DIAGRAM - BASIC/PLUS INTERFACE TERMINALS 12 Vdc power supply connection from Inverter RS-485- serial port connection with Inverter RS-485+ serial port connection with Inverter RS-485 GND serial port connection with Inverter 144XXXME4.00 - 06/2020 - EV3 Mix | 17...

  • Page 18: Inverter / Interface Connection

    The wiring diagram below illustrates how to connect the inverter to one of the interfaces (Basic or Plus): Inverter Basic/Plus Interface A GND 21 22 23 24 Fig. 8. Inverter - Interface connection 144XXXME4.00 - 06/2020 - EV3 Mix | 18...

  • Page 19: Chapter 5. User Interface

    Time value displayed in minutes Lit steadily: Time value displayed in seconds Lit steadily: Rotation cycle active Flashing: Rotation cycle paused Off: Rotation cycle not active Lit steadily: Motor not in motion Flashing: Alarmactive(alarmcodedisplayed) | 19 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 20: Plus Interface

    Flashing: Rotation cycle paused 5.3 FUNCTIONS MENU The following section explains which menus are available in the EV3 Mix and how to navigate them. 5.3.1 Select/start manual cycle Basic Interface The sequence of actions to complete in order to start the food mixer rotation cycle manually and change its speed is described...
  • Page 21 The bottom display will show the text MAN and the time elapsed since the start of the cycle; the values will alternate every 10 seconds. Play/Pause Whenthecyclehasbegun,thefoodmixercanbepausedby pressing ; to resume the cycle simply press again. 144XXXME4.00 - 06/2020 - EV3 Mix | 21...

  • Page 22: Automatic Select/Start Cycle With Several Stages

    2 and press to confirm. 0=Stagenotapplied Touch to scroll through the available speeds and press to confirm: HI=Highspeed; Md=Mediumspeed; LO=Lowspeed. See "6.1 SETTING THE SPEED" ON PAGE 26. 144XXXME4.00 - 06/2020 - EV3 Mix | 22...
  • Page 23 Touch to confirm the selection and start the food mixer cycle. NOTE: The EV3 Mix always suggests the last configuration set to make starting the rotation cycle quicker and easier. Thefoodmixerrotationspeedisdisplayed,alongwiththe cycle minutes; the values will alternate every 10 seconds. The last 3 minutes are displayed in seconds.

  • Page 24: Reverse Function

    2 seconds to start a short manual reverse rotation cycle (10 seconds of rotation). The device will show the 10-second cycle countdown (timer) on the bottom display. Oncethishaselapsed,thedisplaywillreverttohowitwas when the device was in stop mode. 144XXXME4.00 - 06/2020 - EV3 Mix | 24...

  • Page 25: Edit Parameters

    Set the password value for the level you want to enter by touching and touch confirm. Passwords: -19: Password value to enter OEM parameters (O) 19: Password value to enter Expert parameters (E) 144XXXME4.00 - 06/2020 - EV3 Mix | 25...

  • Page 26: Chapter 6. Operation

    • Maximum speed (Hi) • Medium speed (Md) • Minimum speed (Lo) The device calculates the medium speed between the two values B04 and B05,asshowninthegraphbelow: Speed (B04-B05)/2 Fig. 9. Setting the speed - Basic interface | 26 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 27: Plus Interface

    Parameter G40 configures the cycle restart after the cover is closed: •   G 40=0(saferestart):thecycleremainspausedandcodeUS remains on the display. Press once to reset the alarm andmakecodeUS disappear from the display; press again to start the food mixer cycle. • G40=1(quickrestart):whenthecoverisclosed,thecyclestartsautomaticallyandalarmcodeUS disappears. Inanycase,thepausedcyclecanberestartedbyclosingthecoverandkeepingdigitalinput3closedfor1second. 144XXXME4.00 - 06/2020 - EV3 Mix | 27...

  • Page 28: Digital Input

    Digital input 2 is dedicated to managing the motor thermal switch alarm. • With ID2closed:whenacycleisinprogress,thelatterissettoSTOPstatus.Themotorthermalswitchalarmisreset manually;toresetthealarm,closeandreopendigitalinput3ordisconnectandreconnectthedevicepowersupply. 6.3.3 Digital input 3 Digital input 3 is dedicated to alarm resetting as described in the previous paragraphs. 144XXXME4.00 - 06/2020 - EV3 Mix | 28...

  • Page 29: Chapter 7. Parameters

    CHAPTER    7. PARAMETERS EV3 Mix parameters can be configured using Parameters Manager,byconnectingtheinvertertothePCviaRS-485serialport. This means the EV3 Mix is fully configurable according to your own requirements/applications. NOTE: For PC - EV3 Mix connection,useanRS-485/USBconverter(forexample,p/n:EVIF20SUXI); for all necessary information on the subject, please refer to instruction sheet code 104SUXIA104).

  • Page 30: Chapter 8. Alarms

    – Reset alarm via input ID3 Motor stall alarm Motor does not rotate properly with –  M akesureparametersE01...E19 are vector algorithm correct; – Reset alarm via input ID3; – Contact EVCO technical support | 30 144XXXME4.00 - 06/2020 - EV3 Mix...

  • Page 31: Chapter 9. Parameters Manager

    CHAPTER 9. PARAMETERS MANAGER The EV3 Mix can be configured using Parameters Manager,availabletodownloadfromthewebsitewww.evco.it To connect the EV3 MixtoaPC,anRS-485/USBconvertermustbeused(p/n:EVIF20SUXI). NOTE:Forall necessary information on the subject, please refer to instruction sheet code 104SUXIA104) NOTE: Make sure you have downloaded the latest version of the drivers available for Parameters Manager.
  • Page 32 Connection Setup Address Resul code Status Driver MODBUS 1 Baud 9600 Parity None 1020/1 1020AA01 <<< Previous Close Fig. 13. EV3 Mix detection Press Close to proceed with the EV3 Mixparameterconfigurationscreen. 144XXXME4.00 - 06/2020 - EV3 Mix | 32...

  • Page 33: Chapter 10. Warranty

    CHAPTER    10. WARRANTY We recommend you read this document carefully; if you have any questions please contact EVCO directly. EVCO guarantees its own products against material defects and/or manufacturing faults for a period of 24 months from the dateofmanufacture,orforadifferentperiodifspecifiedbycontractualnorms. Thewarrantyislimitedtoproductrepairor,dependingonthesoleopinionofthemanufacturer,replacement.
  • Page 34 The customer (manufacturer, installer or end user) assumes all responsibility for device configuration. EVCO does not assume any responsibility for potential errors and reserves the right to make any changes, at any time, without the basic functional and safety-related features being affected.
