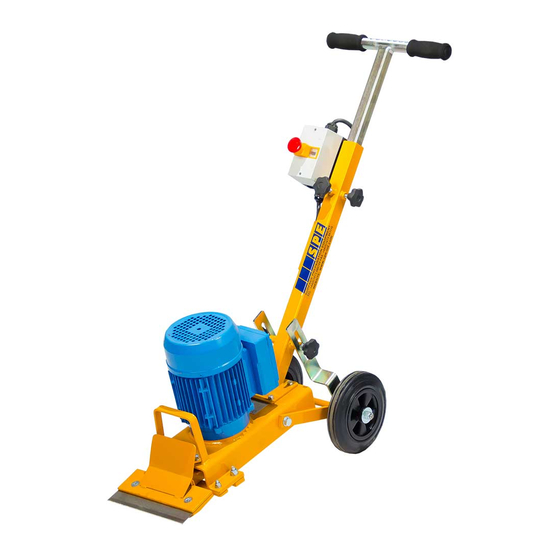

MS230 - 1
MULTISTRIPPER
Operating Manual
This manual is provided to persons purchasing an
SPE machine and may not be reproduced in part or full
without written permission of
SPE International Ltd.
This manual provides the basic information required
and is only to be used as a guideline.
The SPE machines are manufactured and covered by
SPE design registrations granted and pending.
SPE International Ltd reserves the right to alter the
equipment design and specification as required
without notice.
The SPE product range is subject to amendment and
improvement as a result of on going research
Honeyholes Lane, Dunholme, Lincoln LN2 3SU, England
Tel: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119
Email:
sales@spe-int.com
VERSION 1.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS230-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPE MS230-1

Summary of Contents for SPE MS230-1

  • Page 1 MS230 - 1 MULTISTRIPPER Operating Manual This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
  • Page 2 WARNING Failure to follow these instructions may result in serious personal injury or death. SPE disclaims all responsibility for damage to persons or objects arising as a consequence of incorrect handling of the machine and failure to inspect the machine for damage or other faults that may influence the operation prior to starting work.
  • Page 3 MS230-1 MULTISRIPPER Operating Manual INDEX Page No Starting Work Electrical Instructions Maintenance Blade Change Blade Angle Basic Maintenance Checklist Safety Spare Parts Breakdown Body Components Operational Parts Electrical Listing Wiring Diagram Specifications Noise/Vibration Assessment Warranty Declaration of Conformity Conditions of Sales...

  • Page 4: Starting Work

    MS230-1 MULTISRIPPER Operating Manual STARTING WORK 1) Check the condition of the blade assembly 2) Check all bolts and nuts for tightness 3) Check all leads for damage where applicable 4) Before starting the machine ensure that the blade is clear of any obstructions 5) Adjust the handlebar to a comfortable height and position.

  • Page 5: Maintenance

    MS230-1 MULTISRIPPER Operating Manual MAINTENANCE AFTER USE: - Clean the machine to remove all the build up of dust and surface residue. If using a hosepipe or pressure washer take care that water is not directed onto electrical components and switches.
  • Page 6 Noise and vibration will occur at various levels dependent on the attachments and work being completed. SPE have assessments conducted under test conditions detailed in the operating manual, see page 10. However, it is recommended that additional tests are taken on site to provide the operator with accurate information on using the equipment within the guidelines laid down by the Health and Safety Executive.
  • Page 7 ITEM # SPE P/N DESCRIPTION QTY. ITEM # SPE P/N DESCRIPTION C305 MOTOR (110V) NOT SHOWN 30MF@400V RUN CAPACITOR 110V CAPACITORS SOLD SEPARATELY NOT SHOWN 125MF@240V START CAPACITOR 110V C306 ECCENTRIC BUSHING C307 BEARING C309 SWITCH C311 CHASSIS C312 DRIVE ARM...
  • Page 8 MS230-1 MULTISRIPPER Operating Manual...
  • Page 9 MS230-1 MULTISRIPPER Operating Manual ELECTRICAL COMPONENTS NOT ILLUSTRATED Part no Description 30MF@400V Run Capacitor 110v 125MF@240V Start Capacitor 110v SP210-304 110v 16A 3pin Trailing Plug 7512 2.5mm Cable - Yellow 5 mtrs...

  • Page 11: Specification Sheet

    MS230-1 MULTISRIPPER Operating Manual SPECIFICATION SHEET MS230 Electric Type Part number MS230-1 Power output 2.0 h.p Voltage 110v Cycles Machine dimensions (mm) Length Width Height Weight (kg) Working width mm Engine/Motor rpm 1400 ELECTRICAL REQUIREMENTS Machine Volts Plug Cable size...
  • Page 12 MS230-1 MULTISRIPPER Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Tile Lifter Model No. MS230-1 Electric Operation : Removing vinyl tiles Running Conditions: 1420 rpm HAV Note: Operc HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement Acceleration (m/s...

  • Page 13: Warranty

    Conditions of Sale (copy attached). Warranty start date: As despatch date Model: MS230-1 Serial no: Customer name: Customer Address: Manufacturer: SPE International Ltd Honeyholes Lane Dunholme Lincoln LN2 3SU England Telephone: +44 (0) 1673 860709 Fax:...

  • Page 14: Declaration Of Conformity

    Directive 2006/42/EC............Brian Jacklin – Technical Manager SPE INTERNATIONAL LTD SPE International Ltd, Honeyholes Lane, Dunholme, Lincoln. LNS 3SU England Tel: +44 (0) 1673 860709  Fax: +44 (0) 1673 861119  Web:  e-mail: www.spe-int.com...
  • Page 15 CONDITIONS OF SALE MULTISRIPPER Operating Manual The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
