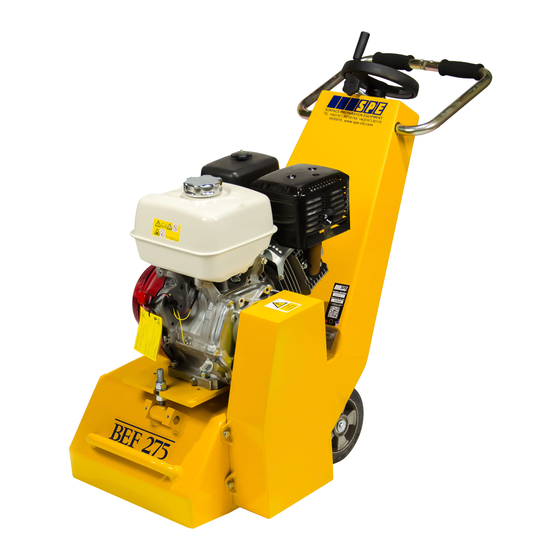

- Page 2 BEF275-1 Operating Manual This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
- Page 3 WARNING Failure to follow this instruction may result in serious personal injury or death. SPE disclaims all responsibility for damage to persons or objects arising as a consequence of incorrect handling of...
- Page 4 BEF275-1 Operating Manual INDEX Page No Starting Work General Operation Petrol Engine Dust Control Maintenance Basic Maintenance Checklist Safety Accessories 9 -11 Cutter Drum Set Up Spare Parts Breakdown Body Components Undercarriage Components Drive Components Specifications Noise and Vibration Assessment Warranty Declaration of Conformity Conditions of Sale...
-
Page 5: Starting Work
BEF275-1 Operating Manual STARTING WORK Check the following prior to starting the equipment - Check the condition of the cutter drum assembly - Check all nuts and bolts for tightness - Check the drive belt condition and tension - Check the drive pulleys are clean and undamaged - Check the engine oil level - Check the air filter is clean 1. -
Page 6: Petrol Engine
To remove dust, connect an industrial dust collector or vacuum to the 50mm port at the rear of the machine. We recommend the SPE VAC316 for almost 100% dust control. In the absence of a dust control unit it is acceptable to spray water onto the surface or to feed water down the vacuum port. -
Page 7: Maintenance
BEF275-1 Operating Manual MAINTENANCE Prior to any maintenance or adjustment, stop the engine. After use: Clean the machine to remove all build up of dust and surface residues. If using a hose pipe or pressure washer take care that water is not directed onto the engine and switches. Note: Engine and switches are not waterproof Drum removal: Remove the bolts on the side plate and then screw two of the bolts back into the two tapped holes... - Page 8 BEF275-1 Operating Manual Height Adjustment Maintenance Ensure the height screw thread is cleaned and then lightly oiled. Periodically it should be removed and the female, threaded section cleaned out and oiled. At the same time the self aligning bearing should be greased The clevis pin should be oiled regularly to maintain a light, smooth height adjustment.
- Page 9 BEF275-1 Operating Manual BASIC MAINTENANCE/CHECKLIST DAILY: (or every 8hrs to 10hrs) Check the cutters Check the flail shafts Check all nuts and bolts for tightness Check the belt tension and condition Check engine oil daily Change the engine air filter if not using vacuum unit See engine manufacturers maintenance details before starting engine.
- Page 10 Note; It is possible that the noise level produced by the BEF275 could exceed 90dbA. Personal noise protection must be worn. To control dust, it is recommended that an SPE dust control unit is used in conjunction with the machine.
- Page 11 BEF275-1 Operating Manual ACCESSORIES Part No Description Application For all concrete texturing, scabbling planing and grooving applications. Removal of bridge deck and car park membranes, Heavy duty drum complete with 27501 heavy industrial contamination, T.C.T cutters and spacers. epoxy coatings and road markings, reducing concrete.
- Page 12 BEF275-1 Operating Manual BEF275-1 ACCESSORIES For the removal of thermoplastic 60620 road/runway markings, rubber Milling Cutter: Tipped with Tungsten based deposits and cold plastic carbide. coatings from asphalt and concrete. Heavy duty drum complete with flail For use with various cutter 27500 shafts.
- Page 13 BEF275-1 Operating Manual...
-
Page 14: Specification Sheet
BEF275-1 Operating Manual SPECIFICATION SHEET Specifications BEF275 Type Petrol BEF275-1 Part Number Power Output 11hp Voltage Cycles 1530/1640 Cutter Head Speed (rpm) Machine Dimensions: (mm) Length 1220 Width Height Weight (kg) Working width of cutters (mm) Working distance from walls (mm) Engine/Motor speed (rpm) 3000... - Page 15 BEF275-1 Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Scarifier Model No. BEF275-1 Petrol Motor: Honda GX340 11HP Operation : Concrete floor surface Inserted Tool: TCT cutters Running Conditions: 2910 rpm HAV Note: Operc HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement Position Acceleration (m/s...
-
Page 16: Warranty
Conditions of Sale (copy attached). Warranty start date: As despatch date Model: BEF275-1 Serial no: Customer name: Customer Address: Manufacturer: SPE International Ltd Honeyholes Lane Dunholme Lincoln LN2 3SU England Telephone: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119 Email: sales@spe-int.com... -
Page 17: Declaration Of Conformity
BEF275-1 Operating Manual DECLARATION OF CONFORMITY SPE INTERNATIONAL LTD Honeyholes Lane Dunholme Lincoln LN2 3SU DECLARE that under our sole responsibility for the supply/manufacture of the product (Description/name) BEF275 Multiplane (Model/type) BEF275-1 to which this declaration relates is in conformity with the following standards and other normative documents following the provisions of Directive 2006/42/EC. - Page 18 BEF275-1 Operating Manual CONDITIONS OF SALE The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
