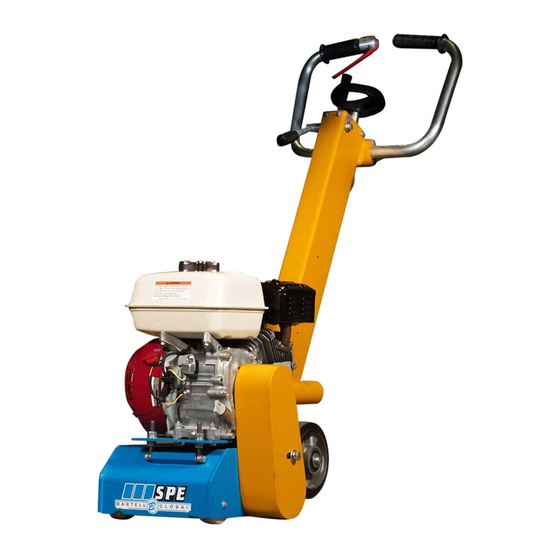

BEF200N
OWNER'S MANUAL AND PARTS BOOK
www.BARTELLGLOBAL.com
Doc. #OIPB-S18001
Orig. Rel. – 08/2020
Curr Rev. -00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEF200N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SPE BEF200N

  • Page 1 BEF200N OWNER’S MANUAL AND PARTS BOOK www.BARTELLGLOBAL.com Doc. #OIPB-S18001 Orig. Rel. – 08/2020 Curr Rev. -00...
  • Page 2 Fax: (425) 405-9101 © 2020 Bartell Morrison Inc. This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
  • Page 3 BEF200N PARTS BOOK OIPB-S18001 SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials, or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.
  • Page 4: Table Of Contents

    MAINTENANCE CHECKLIST ......................13 PARTS LIST 1 - SCARIFIER......................14 GENERAL ASSEMBLY DIAGRAM: BEF200N ........................14 GENERAL ASSEMBLY DIAGRAM: BEF200N – PARTS LIST 1 ..................15 PARTS LIST 2 - SCARIFIER......................16 FASTENERS: BEF200N..............................16 FASTENERS: BEF200N – PARTS LIST 2 ......................... 17 ELECTICAL DIAGRAM ........................
  • Page 5: About This Manual

    To the best of our knowledge, this manual covers the operation and maintenance of the BEF200N Scarifier. Before operation of the equipment this manual should be read and understood by the operator. The safety regulations must be followed at all times, and service of electrical components should be carried out by authorised personnel.
  • Page 6: Start-Up Operation

    STEP 4 -ELECTRIC VERSIONS, STEP 5 GAS/PETROL VERSIONS 4. BEF200N-1 – 110V 50Hz Single Phase Start the motor by turning the switch on the panel to the start position. Hold for 2-3 seconds for the motor to start and release. The switch will return to its run position. To stop the machine, turn the switch anti-clockwise.
  • Page 7: General Operation

    • Electrical motors and switches are not waterproof, take care to protect them from splashes. • The BEF200N is normally operated in a forward direction. The operator varies the speed of travel to determine the final finish, having already pre-set the depth control. It is permissible to operate the machine with a backwards and forwards action.
  • Page 8: Electrical Requirements

    OIPB-S18001 ELECTRICAL REQUIREMENTS The BEF200N machine is supplied with a specially commissioned electric motor and starter switch assembly. Each unit is fully tested, and the safety overload relays have been calibrated and set according to the manufacturer’s specifications. In the event of the malfunction on a new machine the owner should first check that the power supply on-site is suitable and adequate.
  • Page 9: Cutter Drum Removal

    BEF200N PARTS BOOK OIPB-S18001 CUTTER DRUM REMOVAL 1. Isolate the power supply and ensure the cutter drum has stopped rotating. 2. Raise the Quick-Lift lever so that the cutters are clear from the ground. 3. Loosen the four 8mm set screws and remove the side plate. This cover can stick when brand new, so it may be necessary to lever off the plate with a screwdriver.
  • Page 10: General Maintenance

    Generally, when the motor is started and run, a tight belt can be detected by a low hum/whistle. Note: Never operate the BEF200N without a belt guard. All components should be checked daily for tightness and the drive belt for tension.
  • Page 11: Preventative Maintenance And Routine Service Plan

    Bartell Morrison dealer. For your convenience, we have provided this space to record relevant data about your SPE BEF200N. When in need of parts or service be prepared to provide your Scarifier serial number. Locate the serial number now and record in the space below.
  • Page 12 BEF200N PARTS BOOK OIPB-S18001 ROUTINE SERVICE SCHEDULE First Every 6 Every 3 Every Every 2 Each months months Routine Service Intervals months year or years or or 10 or 50 or 25 hrs 100 hrs 300 hrs General Inspection Warning Stickers...
  • Page 13: Maintenance Checklist

    BEF200N PARTS BOOK OIPB-S18001 MAINTENANCE CHECKLIST DAILY: (or every 8hrs to 10hrs) • Check the cutters. • Check the flail shafts. • Check all nuts and bolts for tightness. • Check the belt tension. • Check the plugs and cables.
  • Page 14: Parts List 1 - Scarifier

    BEF200N PARTS BOOK OIPB-S18001 PARTS LIST 1 - SCARIFIER GENERAL ASSEMBLY DIAGRAM: BEF200N...
  • Page 15: General Assembly Diagram: Bef200N - Parts List 1

    BEF200N PARTS BOOK OIPB-S18001 GENERAL ASSEMBLY DIAGRAM: BEF200N – PARTS LIST 1 Item # Part # Description Remarks 20025 BEF200N DRUM 6204 BEARING, 47MM X 20MM 7034 KNOB GRIP 9102 SIDE PLATE SPACER 9106 DUST SKIRT 9107 FRONT AXLE 9110...
  • Page 16: Parts List 2 - Scarifier

    BEF200N PARTS BOOK OIPB-S18001 PARTS LIST 2 - SCARIFIER FASTENERS: BEF200N...
  • Page 17: Fasteners: Bef200N - Parts List 2

    BEF200N PARTS BOOK OIPB-S18001 FASTENERS: BEF200N – PARTS LIST 2 Item No. Part Number Description Qty. 10999 HHCS, M8-1.25 x 20mm 11614 Lock Washer, M8 11667 Flat Washer, M8 10452 HHCS, M8-1.25 x 40mm 41516 Flat Washer, M10 11622 Hex Nut, M10...
  • Page 18: Electical Diagram

    BEF200N PARTS BOOK OIPB-S18001 ELECTICAL DIAGRAM BEF200N-1...
  • Page 19: Bef200N-2

    BEF200N PARTS BOOK OIPB-S18001 BEF200N-2...
  • Page 20 BEF200N PARTS BOOK OIPB-S18001 BEF200N-2A...
  • Page 21 BEF200N PARTS BOOK OIPB-S18001 BEF200N-3...
  • Page 22: Bef200N-2A

    BEF200N PARTS BOOK OIPB-S18001 Electrical Components BEF200N-1 SPE PART NO DESCRIPTION SP2518-11 Panel box SP190005 Hinge kit SP630-304 Surface Mount Plug 9245 Rubber Mount 9249 Panel Box Back Plate 9250 Plug Retaining Plate 9254 Rotary Switch 9255 Contactor 110V 9256...
  • Page 23 BEF200N PARTS BOOK OIPB-S18001 BEF200N-3 Item # SPE PART NO DESCRIPTION 9144 400V 2.2kW Electric Motor SP2518-11 Panel box SP190005 Hinge kit SPBF181040 Contactor 400V 9254 On/Off Push Button SP60HD310 Trip 3 Pole 10 Amp SPRF3806 Overload 4-6.5A SP610PH 5 Pin 16A Ph/Rev Surface Plug...
  • Page 24: Bef200N-3

    BEF200N PARTS BOOK OIPB-S18001 Specification Sheet Type Part Number BEF200N-1 BEF200N-2A BEF200N-2 BEF200N-3 Power Output 3hp (2.2kW) 3hp (2.2kW) 3hp (2.2kW) 3hp (2.2kW) Voltage 110V 230V 220V 400V Amps Phase 32 Amp 20 Amp 16 Amp 16 Amp Plug Size...
  • Page 25: Noise & Vibration Assessments

    BEF200N PARTS BOOK OIPB-S18001 Noise & Vibration Assessments BEF200N Electric – TCT Cutters RECORD OF NOISE AND VIBRATION ASSESSMENT Model No. BEF200N Electric Operation: Concrete floor surface Inserted Tool: TCT cutters Running Conditions: 2870 rpm HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a...
  • Page 26: Bef200N Electric - Beam Cutters

    BEF200N PARTS BOOK OIPB-S18001 BEF200N Electric – Beam Cutters RECORD OF NOISE AND VIBRATION ASSESSMENT Model No. BEF200N Electric Operation: Concrete floor surface Inserted Tool: Beam cutters Running Conditions: 2870 rpm HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement...
  • Page 27: Bef200N Petrol - Tct Cutters

    BEF200N PARTS BOOK OIPB-S18001 BEF200N Petrol – TCT Cutters RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: SPE International Ltd. Type: Scarifier Model No. BEF200N-4 Petrol Operation: Concrete floor surface Inserted Tool: TCT cutters Running Conditions: 2870 rpm HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a...
  • Page 28: Bef200N Petrol - Beam Cutters

    BEF200N PARTS BOOK OIPB-S18001 BEF200N Petrol – Beam Cutters RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: SPE International Ltd. Type: Scarifier Model No. BEF200N-4 Petrol Operation: Concrete floor surface Inserted Tool: Beam cutters Running Conditions: 2870 rpm HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a...
  • Page 29: Warranty

    This guarantee is for the sole benefit of the original purchaser as end user. Our responsibility under this guarantee ends in the case the original purchaser transfers ownership of the BEF200N, makes any changes or adds any parts or devices not of our manufacture to the machine.
  • Page 30: Declaration Of Conformity

    BEF200N PARTS BOOK OIPB-S18001 Declaration of Conformity SPE INTERNATIONAL LTD Honeyholes Lane Dunholme Lincoln LN2 3SU DECLARE that under our sole responsibility for the supply/manufacture of the product (Description/name) BEF200N (Model/type) BEF200N to which this declaration relates is in conformity with the following standards and other normative documents following the provisions of Directive 2006/42/EC.
  • Page 31: Conditions Of Sale

    PARTS BOOK OIPB-S18001 Conditions of Sale The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
