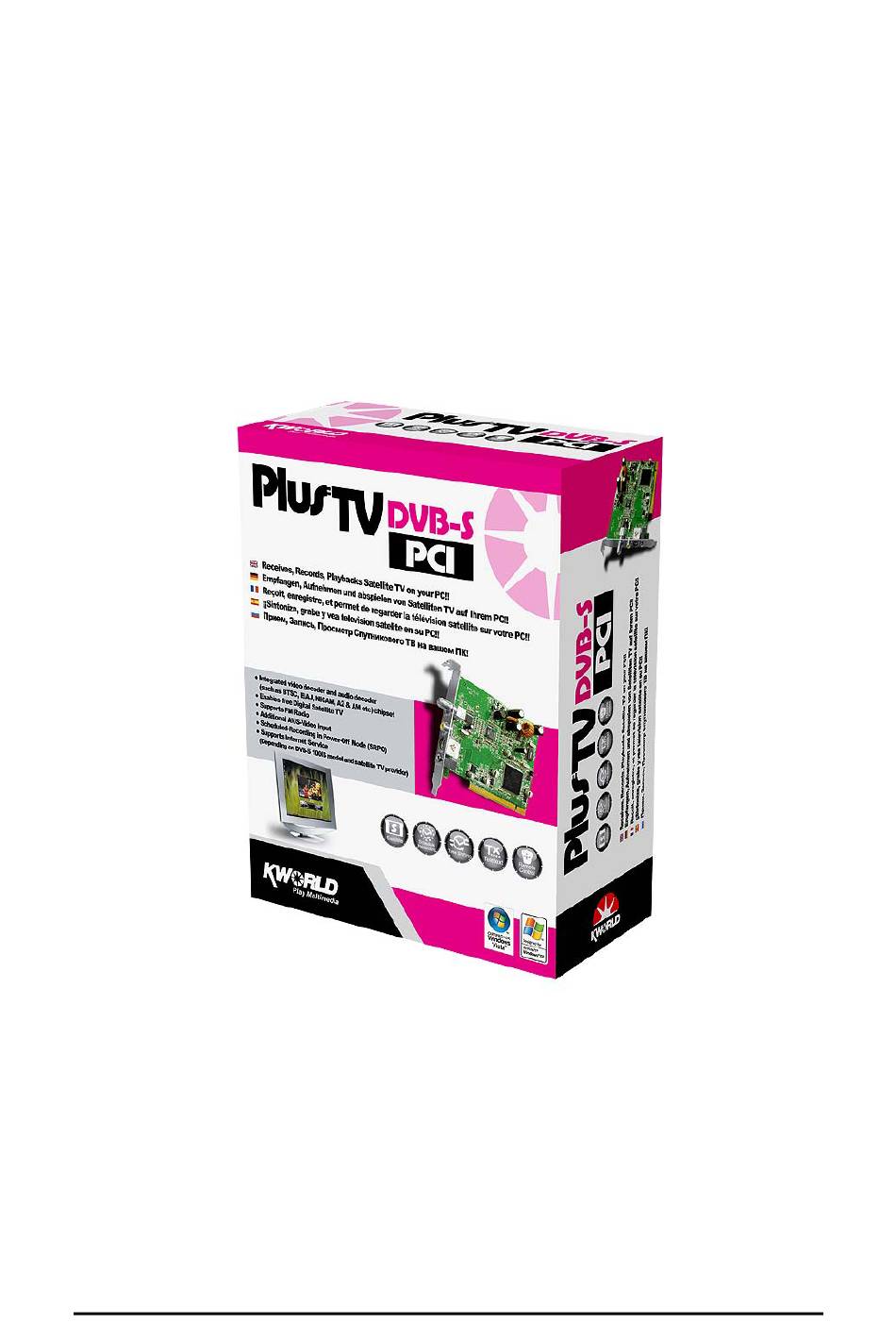

- Page 1 FAQ of DVB-S 100 Copyright© 2007. KWorld Computer Co., Ltd. All rights are reserved. October 24, 2007 Page 1 of 18...
-
Page 2: Table Of Contents
(1)I had just received my product, I don’t know how to set up everything! ..3 (2)If my software installation was not successful, what should I do? .....4 (3)How do I set up the satellite setting on my computer? ........5 (4)I want to change the LNB setting, what should I do? ........10 (5)I want to change the frequency and symbol rate setting, what should I do?... -
Page 3: I Had Just Received My Product, I Don't Know How To Set Up Everything
(1)I had just received my product, I don’t know how to set up everything! There are a few ways of setting up this product: from multiple satellite sources to your computer, from one satellite source to your computer. i. You may have more than 1 satellite dish at home, therefore, you would have to connect the receiver coaxial cable from your satellite dishes to a DiSEqC, then you have two choices: A. -
Page 4: If My Software Installation Was Not Successful, What Should I Do
ii. If you have only 1 satellite dish at home, the setup would be much simpler. From the satellite dish, either connect the coaxial cable to your Setup Box, then to the DVB-S TV tuner card, or directly to the DVB-S TV tuner card. (2)If my software installation was not successful, what should I do? Before you reinstall the software, please follow the steps below: i. -
Page 5: How Do I Set Up The Satellite Setting On My Computer
(3)How do I set up the satellite setting on my computer? iii. When you enter the DVB-S Plus or HyperMedia 2 software applications, you may right-click on the display window or the control panel for the pop-up menu (which may also be achieved by pressing F12 on your keyboard.) Please select Setup. - Page 6 v. If you have more than 1 satellite source and has connected your TV tuner card to a DiSEqC, please select the number of sources you are using. (1 to 4 ports). vi. Please double-click on each of the LNB setting to input your satellite source.
- Page 7 For example, as shown below, please click V to Enable Power, and input the Satellite and LNB Type information. vii. After you have input all setting for all of your satellite sources, please select Next. Page 7 of 18...
- Page 8 viii. Please select the satellite sources you would like to watch TV from, and select Next. ix. Click-on Start to scan channels. Page 8 of 18...
- Page 9 After the channel scan, if the signal strength cannot be detected, please press Back until you have reach the menu shown below. Please use the link provided below to search for the correct Frequency and Symbol Rate. After you have done so, please select Next and Start to scan channels again.
-
Page 10: I Want To Change The Lnb Setting, What Should I Do
(4)I want to change the LNB setting, what should I do? x. When you enter the DVB-S Plus or HyperMedia 2 software applications, you may right-click on the display window or the control panel for the pop-up menu (which may also be achieved by pressing F12 on your keyboard.) Please select Setup. -
Page 11: I Want To Change The Frequency And Symbol Rate Setting, What Should I Do
Please double-click on the highlighted LNB1 line to enter LNB Setting window. Now you may modify the setting according to your wishes. (5)I want to change the frequency and symbol rate setting, what should I xiii. When you enter the DVB-S Plus or HyperMedia 2 software applications, you may right-click on the display window or the control panel for the pop-up menu (which may also be achieved by pressing F12 on your keyboard.) Please select Setup. -
Page 12: How Do I Know Which Driver Version I Am Currently Using
xvii. When you enter the Satellite Setup dialog, please select your satellite and modify its setting accordingly. (6)How do I know which driver version I am currently using? xviii. Please go to Windows Start Menu, right-click on My Computer, and select “Manage”. -
Page 13: I Have Lost My Installation Cd, What Should I Do
“Kworld DVBS BDA Tuner/Demod” and select “Properties”. As shown below, you will find the driver version under Driver, and Driver Version. (7)I have lost my installation CD, what should I do? xx. Please visit our website at www.kworld.com.tw, and select “Download”. Page 13 of 18... - Page 14 xxi. On the top of the page, you will see scroll down menus, please select Satellite TV for Product Series, PlusTV SAT PCI for Product Name, and click-on “Go”. xxii. You will find the latest version of the necessary softwares for your products to be in this page.
-
Page 15: If I Want To Capture Video Clips From My Video Camera, What Should I Do
(8)If I want to capture video clips from my video camera, what should I As shown below, you would have to connect the video output from your camera to the composite input or S-Video input. Note: If you do choose to use S-Video to connect your devices, please remember to also connect the audio output from your video camera to the audio input of your PC system (which is usually the MIC input). -
Page 16: Should I Do
(9)If I only the the West longitude number for Satellite, during setup, what should I do? The formula is as the following: East Longitude = 360 – West Longitude. By using the formula given above, you can now input the East Longitude into the satellite setting. - Page 17 xxv. Under the first sub-menu, you will see the heading File System, it should display either NTFS or FAT32. If the File System of the Hard Drive is FAT32, please change the destination folder to a hard drive with the file system of NTFS.
- Page 18 Page 18 of 18...
