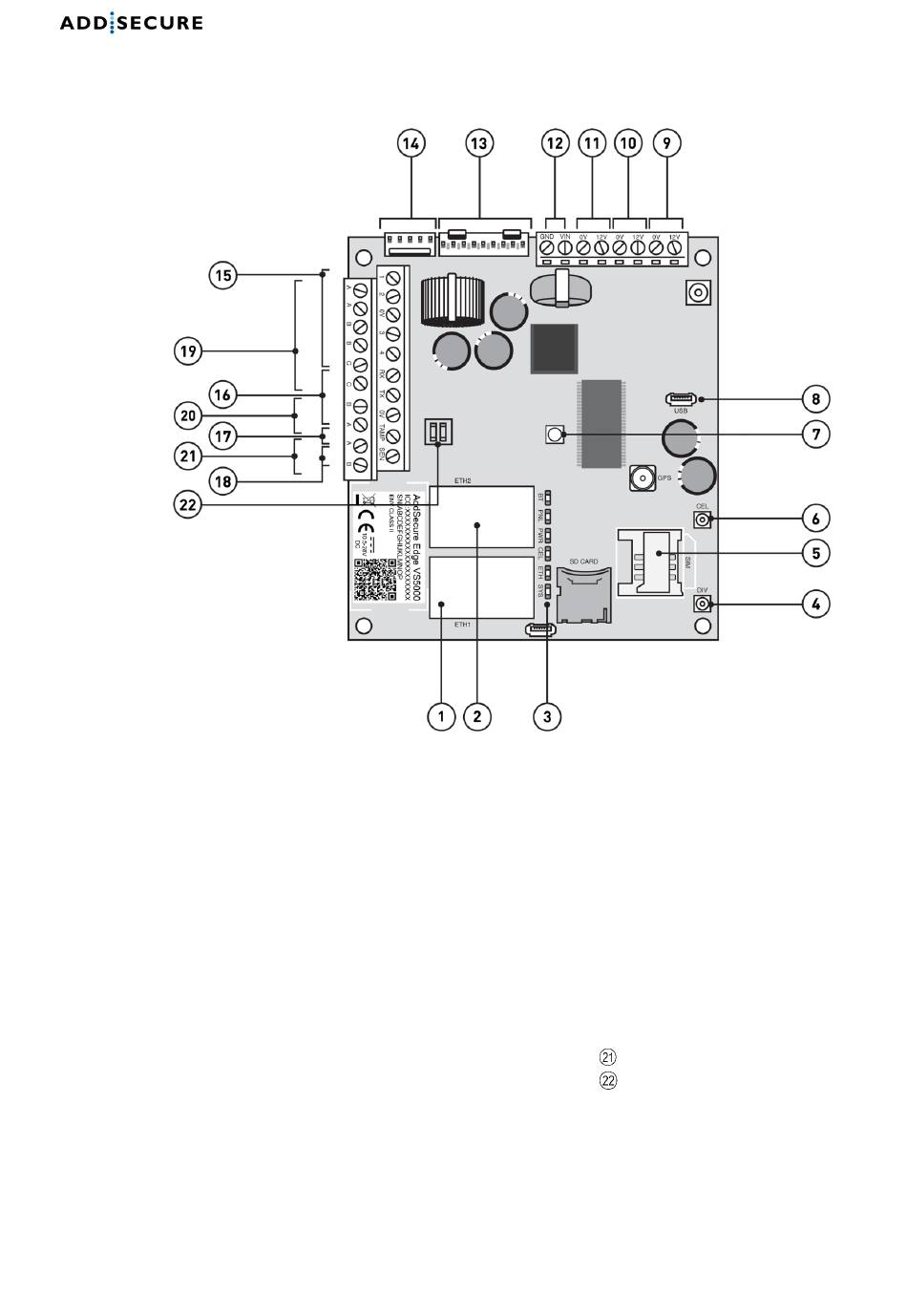

Board (PCBA) configuration
page 4
① Ethernet 1
② Ethernet 2
③ LEDs
BT =
Not in use
PNL = Panel LED
PWR = Power LED
CEL = Cellular LED
ETH = Ethernet LED
SYS =
System LED
④ Cellular diversity antenna port (RX only)
⑤ SIM card slot
⑥ Primary cellular antenna port (TX/RX)
⑦ Test Button (Signal Strength)
⑧ USB port (diagnostics)
PDK-15088-v.2.0 Connect Intercom User Manual.docx
⑨ Power out: Vout3 (Call Connect)
⑩ Power out: Vout2 (Buzzer)
⑪ Power out: Vout1 (Emergency Light)
⑫ DC power in
⑬ Expansion port
⑭ TTL serial port
⑮ Pin inputs (4)
⑯ RS232 port
⑰ Case Tamper input
⑱ PSU sense
⑲ Outputs (3)
⑳ RS485 port
Dial Capture port
Battery port
