Exploded Diagram - Powerbuilt Ujack Operating And Maintenance Instruction Manual

No. Description
1 Front Wheel
2 Washer
3 Axle Nut
4 Wheel Bushing
5 Wheel Axle
6 Cross Link
7 Cross Link Bolt
8 Load Block
9 C-Clip
10 Radius Link Pin
11 Saddle Pin
12 Radius Link Spacer
13 Radius Link
14 Saddle
25
26
23
20
19
27
18
17
28

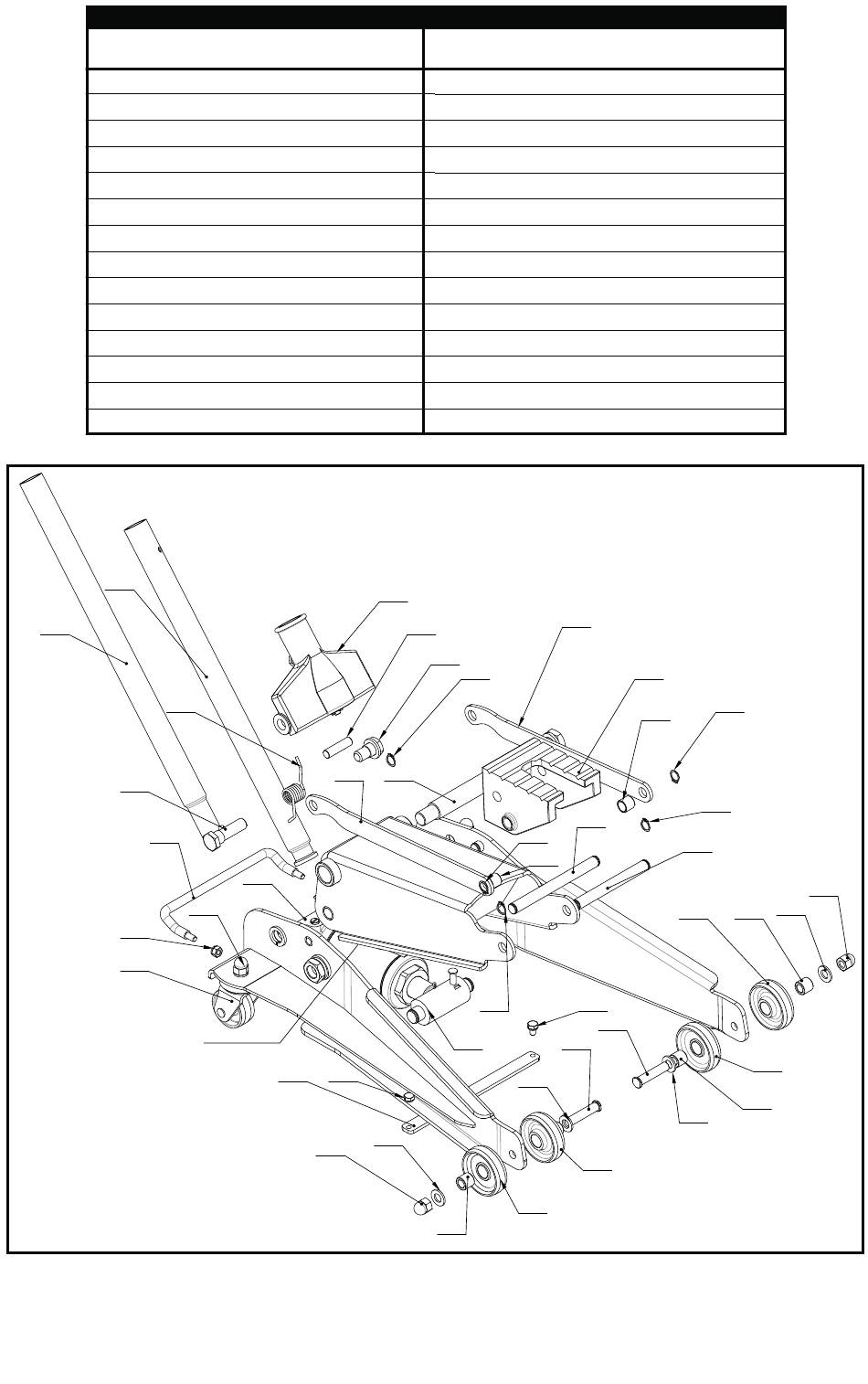

EXPLODED DIAGRAM

24
13 15
16
6 7
2
3
No. Description
15 Lift Arm Pivot Pin
16 Power Unit Assembly
17 Caster Wheel Assembly
18 Lifting Handle Nut
19 Lifting Handle
20 Yoke Pin 56 X 18MM
21 Yoke Pin 40 X 18MM
22 Pump Pin
23 Return Spring
24 Yoke
25 Lower Handle
26 Upper Handle
27 Caster Wheel Nut
28 Oil Plug
13
22
21
9
9
12
9
8 5
2
1
4
7
14
9
12
9
10
11
1 4
7
5
2
1
3
2
1
4
