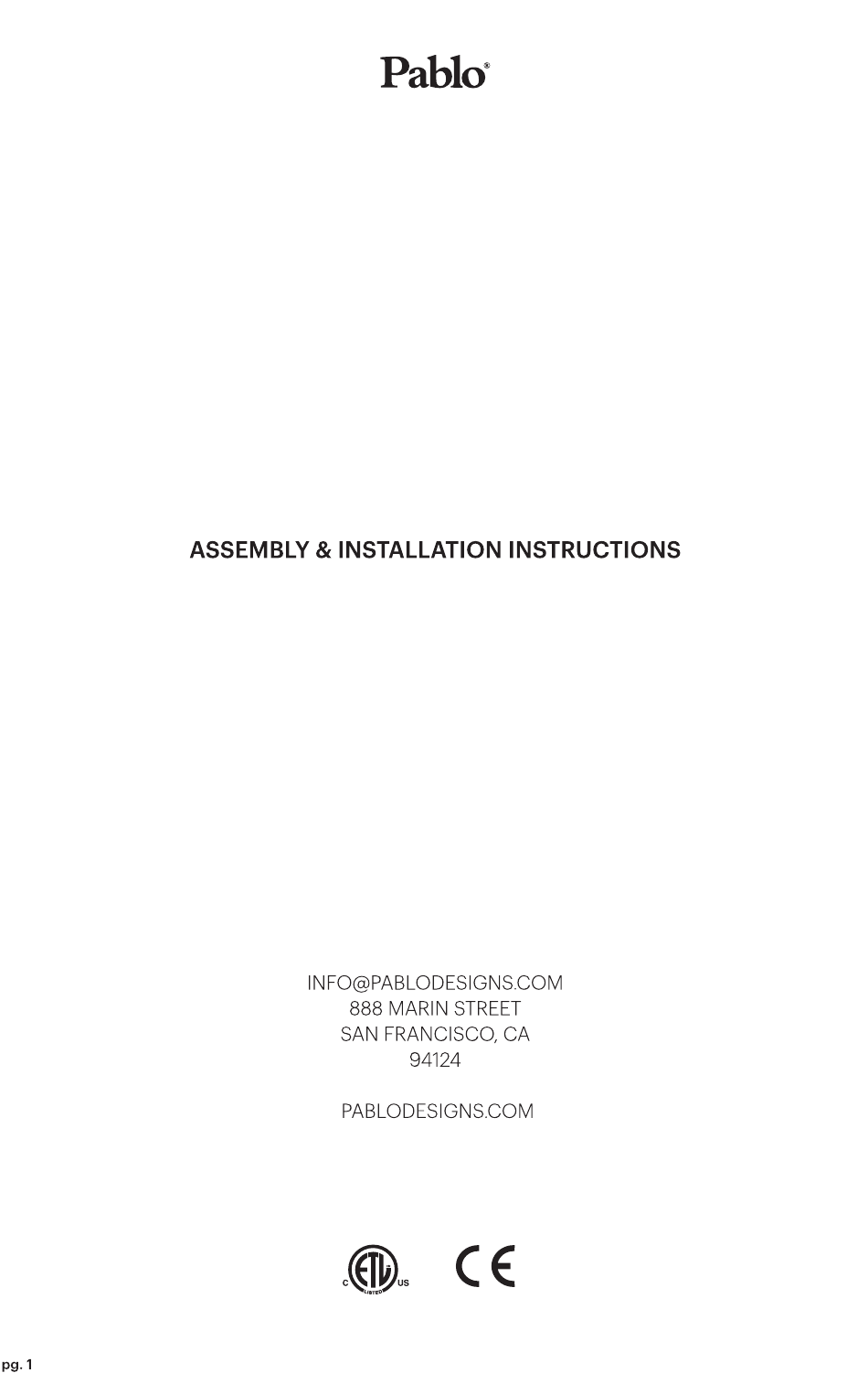

- Page 1 CORNER OFFICE...
- Page 2 CORNER OFFICE FREE STANDING LAMP ASSEMBLY SCREW BASE TO TOWER WITH PROVIDED ALLEN KEY. FIRMLY INSERT LAMP HEAD INTO TOWER. OPTICAL SWITCH: TAP FOR HIGH & MEDIUM. PRESS AND HOLD FOR FULL RANGE DIM TWO 10-WATT USB PORTS (TYPE A)
- Page 3 CORNER OFFICE CONNECT LAMP TO POWER SUPPLY CONNECT PLUG TO POWER SUPPLY AND PLUG INTO WALL LENGTH OF CORD SUPPLIED: 9 FT (274 CM)
- Page 4 CORNER OFFICE PANEL ASSMBLY HARDWARE COMES PRE HARDWARE (x4) MOUNTED TO PANELS. SPACER SCREW HARDWARE PLACEMENT MATCHES HOLE PLACEMENT ON BACK OF LAMP TOWER.
- Page 5 CORNER OFFICE NOTE: STEPS ARE THE SAME FOR ALL PANEL SIZES EITHER SIDE OF PANEL CAN BE USED. LINE HARDWARE UP WITH BOTTOM HOLE. ON REVERSE SIDE USE PROVIDED ALLEN KEY TO SCREW IN. DO NOT OVER TIGHTEN. REPEAT STEPS 1-2. IN ORDER:...
- Page 6 CORNER OFFICE CORNER OFFICE POCKET AND ADJUSTMENTS LARGE PANEL CAN BE ATTACHED FACING RIGHT OR LEFT POCKET ACCESSORY COMES STANDARD WITH 30” PANEL 45° SLIDE POCKET ONTO PANEL...
- Page 7 CORNER OFFICE CORNER OFFICE CONFIGURATION OPTIONS...
