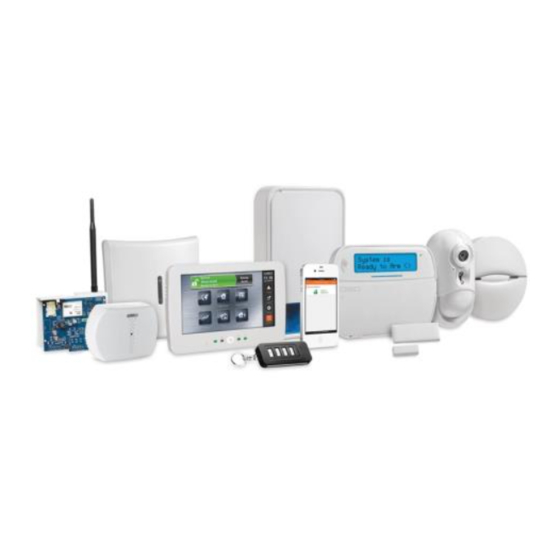

Tyco Security Products DSC PowerSeries Neo Installation Manual

To download the full installation manual and register your product, please visit:
www.DSC.com/m/29009812 or scan the QR code to the right.
Use this guide in conjunction with the PowerSeries Neo Reference Manual available online from the DSC website.
Quick Setup
1
Plan Plan the installation including all alarm detection devices,
zone expanders, keypads and other required modules.
2
Mount Decide on a location for the alarm panel and secure it to the
wall using suitable mounting hardware.
3
Wire Complete all wiring including modules, zones, bells/sirens,
telephone line connections and ground connections. Record
module serial numbers on page 16.
4
Power Connect the battery and power up the system. The battery
must be connected.
5
Enroll Hardwired: Wire the keypad to the Corbus, power up the
First alarm panel then press any button on the keypad. Wireless:
Keypad Wire the HSM2Host to the Corbus, then power up the alarm
panel and a wireless keypad. Press any button on the keypad to
enroll it. The HSM2Host is then enrolled on the alarm panel.
Alternately, enroll an RF keypad.
6
Enroll [*][8][Installer Code][902] subsection [000]. Press [*] to
begin auto-enrollment. Module slots are automatically
modules
assigned. Use scroll keys to view slots. Change slot by typing a
2-digit number.
7
Enroll [*][8][Installer Code][804] subsection [000]. Note: An
wireless HSM2HOST or RF keypad must be enrolled first.
devices
8
Program Basic programming: [*][8][installer code] [001]/[002]> Zone
Type/Zone Attribute [005]>[001] Partition 1 Timers: – Entry
Delay 1 – Entry Delay 2 – Exit Delay [301]>[001] Phone #1
[310]>[000] System Account Code.
9
Test Test the panel completely to ensure that all features and
functions operate as programmed. – [901] Walk Test – [904]
[000] Wireless Placement Test.
Compatible Devices
Throughout this document, x in the model number represents the operating
frequency of the device as follows: 9 (912-919 MHz), 8 (868MHz), 4
(433MHz).
Note: Only models operating in the band 912-919 MHz are UL/ULC listed
where indicated. Only UL approved devices are to be used with UL/ULC
listed systems.
Table 1-1 Compatible Devices
Modules
Wireless keypads: HS2LCDWFx
HS2LCDWFPx
Hardwired keypads with 2-way wireless HS2LCDRFx
HS2LCDRFPx
integration module:
Hardwired keypads: HS2LCD
HS2LCDP
HS2ICN
Touchscreen Keypad
HS2TCHP
2-way wireless integration module: HSM2HOSTx
8-zone expander: HSM2108
8-output expander: HSM2208
Power supply: HSM2300
4 high current output expander: HSM2204
WARNING: This manual contains information on limitations regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual should be carefully read.
PowerSeries Neo Alarm Control Installation Guide
HS2LCDWFPVx
HS2ICNRFx
HS2ICNRFPx
HS2ICNP
HS2LED
Alternate communicator: 3G2080E
3G2080RE
TL280E
TL280RE
LE2080(R)
TL280LE(R)
Hardwired Devices
2-wire smoke detectors: FSA-210x
FSA-210xT
y= A, B, or C
FSA-210xS
A: ULC listed models
FSA-210xST
B: UL listed models
FSA-210xLST
C: European and Australian models
4-wire smoke detectors: FSA-410x
FSA-410xT
FSA-410xS
y= A, B, or C
FSA-410xST
A: ULC listed models
FSA-410xLST
B: UL listed models
C: European and Australian models
CO detectors: CO-12/24
12-24SIR
FW-CO12
Wireless Devices
PG smoke detectors
PG smoke and heat detector
PG CO detector
PG PIR motion detectors
PG PIR + camera motion detector
PG curtain motion detector
PG dual tech motion detector
PG mirror motion detector
PG outdoor motion detector
PG glass break detector
PG shock detector
PG flood detector
PG temperature detector (indoor use)
Outdoor temperature probe (requires PGx905)
PG flat PIR
PG recessed Contact
PG ceiling mount detector with Smart Presence – Short Range
PG ceiling mount detector with Smart Presence – Long Range
PG outdoor contact
PG outdoor curtain PIR
PG keys
PG panic key
PG 2-button key
PG sirens:
PG repeater:
PG door/window contacts:
PG door/window contact w/ AUX
Central Station Receivers
SG-System I, II, III, IV, 5
Enclosures
PC5003C, PC4050CR, PC4050CAR, CMC-1, PC4051C. Other enclosures are available to suit a variety
of system configurations.
TL2803GE
TL2803GRE
TL8803G
TL880LT
TL880LE
PCL-422
FSA-210xR
FSA-210xRT
FSA-210xRS
FSA-210xRST
FSA-210xLRST
FSA-410xR
FSA-410xRT
FSA-410xRS
FSA-410xRST
FSA-410xLRST
FW-CO1224
CO1224
PGx926
PGx936, PGx916
PGx933, PGx913
PGx904(P)
PGx934(P)
PGx924
PGx984(P)
PGx974(P)
PGx994
PGx912, PGx922
PGx935
PGx985
PGx905
PGTEMP-PROBE
PGx914
PGx307
PGx862
PGx872
PGx312
PGx902
PGx939
PGx929
PGx938
PGx949
PGx901
PGx911
PGx920
PGx303, PGx975
PGx945
