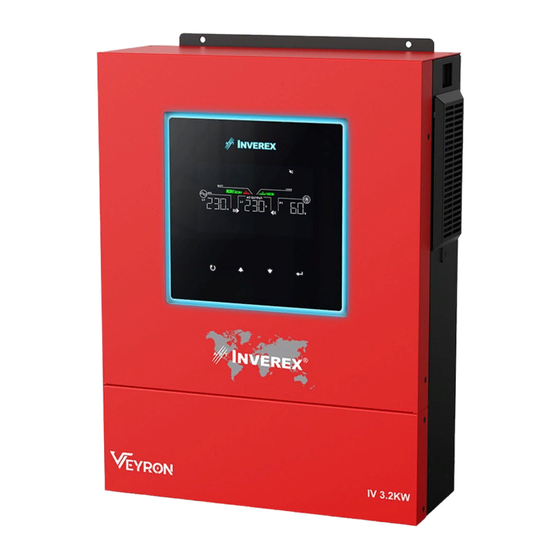

APT VEYRON IV 3.2KW User Manual

Solar inverter / charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
VEYRON IV 3.2KW
SOLAR INVERTER / CHARGER
Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEYRON IV 3.2KW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APT VEYRON IV 3.2KW

Summary of Contents for APT VEYRON IV 3.2KW

  • Page 1 User Manual VEYRON IV 3.2KW SOLAR INVERTER / CHARGER Version: 1.0...

  • Page 2: Table Of Contents

    Table of Contents ABOUT THIS MANUAL ............................1 Purpose ................................1 Scope ................................1 SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ..............................2 Features ................................2 Basic System Architecture ..........................2 Product Overview ............................. 3 Unpacking and Inspection ..........................4 Preparation ..............................4 Mounting the Unit .............................

  • Page 3: About This Manual

    ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.

  • Page 4: Introduction

    INTRODUCTION This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.

  • Page 5: Product Overview

    Product Overview NOTE: For parallel installation and operation, please check Appendix I. 1. LCD display 2. RGB LED bar (refer to LCD Setting section for the details) 3. Touchable function keys 4. PV connectors 5. AC input connectors 6. AC output connectors (Load connection) 7.

  • Page 6: Unpacking And Inspection

    INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter unit Manual software CD RS-232 cable DC Fuse Preparation Before connecting all wirings, please take off bottom cover by removing two screws. When removing the bottom cover, be carefully to remove one cables as shown below.

  • Page 7: Battery Connection

    Install the unit by fixing three screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be requested to have a disconnect device in some applications, however, it’s still requested to have over-current protection installed.

  • Page 8: Ac Input/Output Connection

    CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur. CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are connected tightly. CAUTION!! Before making the final DC connection or closing DC breaker/disconnector, be sure positive (+) must be connected to positive (+) and negative (-) must be connected to negative (-).

  • Page 9: Pv Connection

    5. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws. Be sure to connect PE protective conductor ( ) first. →Ground (yellow-green) L→LINE (brown or black) N→Neutral (blue) 6. Make sure the wires are securely connected. CAUTION: Important Be sure to connect AC wires with correct polarity.
  • Page 10 Step 3: Remove insulation sleeve for about 7 mm on your positive and negative wires. We recommend using bootlace ferrules on the wires for optimal performance. Step 4: Check polarities of wire connections from PV modules to PV input screw terminals.

  • Page 11: Final Assembly

    Recommended solar panel configuration: SOLAR INPUT Total Input Power Solar Panel Spec. (150V(Start-up Voltage)≤Voc* Number of 5500(Max. PV Array (reference) modules in series≤500V(Max. PV Array Power)>= Q’ty of Q'ty of panels Open Circuit Voltage)) modules*Wp - 555Wp Min in series: 4pcs, per input - Vmp: 32.06Vdc Max.

  • Page 12: Communication Connection

    Communication Connection Serial Connection Please use the supplied serial cable to connect between the inverter and your PC. Install the monitoring software from the bundled CD and follow the on-screen instructions to complete your installation. For detailed software operation, refer to the software user manual on the bundled CD. BMS communication RS-232 communication To PC...

  • Page 13: Dry Contact Signal

    Dry Contact Signal There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external device when battery voltage reaches warning level. Unit Status Condition Dry contact port: NC & C NO & C Power Off Unit is off and no output is powered.

  • Page 14: Operation

    OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the side of the inverter) to turn on the unit. Operation and Display Panel The operation and the LCD module, shown in the chart below, includes six indicators, six function keys, on/off switch and a LCD display to indicate the operating status and input/output power information.

  • Page 15: Lcd Display Icons

    Touchable Function Keys ESC, USB/Timer setting priorities Scroll up selection Scroll down selection Confirm selection, Enter setting mode LCD Display Icons Battery Information Indicates battery level in battery mode and charging status in line mode by 0-24%, 25-49%, 50-74% and 75-100%. When battery is charging, it will present battery charging status.
  • Page 16 1.892V/cell ~ 1.975V/cell 1.975V/cell ~ 2.058V/cell > 2.058V/cell Load Information Indicates overload. Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%. 0%~24% 25%~49% 50%~74% 75%~100% Charger Source Priority Setting Display Indicates setting program 16 “Charger source priority” is selected as “Solar first”.
  • Page 17 Indicates unit connects to the mains. Indicates unit connects to the PV panel. Indicates battery type. Indicates parallel operation is working. Indicates unit alarm is disabled. Indicates Wi-Fi transmission is working. Indicates USB disk is connected.

  • Page 18: Lcd Setting

    LCD Setting General Setting ” After pressing and holding “ button for 3 seconds, the unit will enter the Setup Mode. Press “ ” or “ ” button to select setting programs. Press “ ” button to confirm you selection or “ ”...
  • Page 19 Appliances (default) If selected, acceptable AC input voltage range will be within 90-280VAC. AC input voltage range If selected, acceptable AC input voltage range will be within 170-280VAC. AGM (default) Flooded User-Defined If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 26, 27 and Battery type...
  • Page 20 LIb-protocol compatible battery Select “LIb” if using Lithium battery compatible to Lib protocol. If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. party Lithium battery If selected, programs of 02, 26, 27 and 29 will be automatically set up.
  • Page 21 240V Maximum utility charging 30A (default) Setting range is from 2A, then current 10A to 100A. Increment of each click is 10A. Note: If setting value in program 02 is smaller than that in program in 11, the inverter will apply charging current from program 02 for utility charger.
  • Page 22 Only Solar Solar energy will be the only charger source no matter Charger source priority: utility is available or not. To configure charger source priority Alarm on (default) Alarm off Alarm control Return to default display screen If selected, no matter how (default) users switch display screen, it will automatically return to...
  • Page 23 Bypass disable (default) Bypass enable Overload bypass: When enabled, the unit will transfer to line mode if overload occurs in battery mode. Record enable (default) Record disable Record Fault code 28.2V (default) If user-defined is selected in program 5, this program can be set up.
  • Page 24 program can be set up. 29.2V (default) Setting range is from 25.0V to 31.0V. Increment of each click is 0.1V. Battery equalization voltage 60min (default) Setting range is from 5min to 900min. Increment of each click is 5min. Battery equalized time 120min (default) Setting range is from 5min to 900 min.
  • Page 25 Solar energy feed to grid Solar energy feed to grid disable (default) enable. Solar energy feed to grid configuration Reset Not reset (Default) Erase all data log 3 minutes 5 minutes 10 minutes (default) 20 minutes Data log recorded interval *The maximum data log number is 1440.
  • Page 26 For day setting, the range is from 1 to 31. Time setting– Day For month setting, the range is from 1 to 12. Time setting– Month For year setting, the range is from 17 to 99. Time setting – Year Enabled (default) Disable On/Off control for RGB LED...
  • Page 27 High Power cycling Power wheel RGB LED effects Power chasing Solid on (Default) Solar input power in watt Battery capacity percentage (Default) Data Presentation of data color Load percentage. Pink Orange Background color of RGB Yellow Green...
  • Page 28 Blue Sky blue (Default) Purple Other Pink Orange Yellow Green Data Color for RGB LED Blue Sky blue Purple (Default) Others...
  • Page 29 Function Setting After pressing and holding “ ” button for 3 seconds , there are Step 1: to enter Function Setting Mode three functions on the display panel to implement special functions such as USB OTG, Timer setting for output source priority and timer setting for charger source priority. There are three function keys on the display panel to implement special functions such as USB OTG, Timer setting for output source priority and timer setting for charger source priority.
  • Page 30 Error message for USB On-the-Go functions: Error Code Messages No USB disk is detected. USB disk is protected from copy. Document inside the USB disk with wrong format. If any error occurs, error code will only show 3 seconds. After 3 seconds, it will automatically return to display screen.
  • Page 31 3. Timer Setting for the Charger Source Priority This timer setting is to set up the charger source priority per day. Procedure LCD Screen Step 1: Press “ ”, “ ” or “ ” button to enter the selectable programs (detail descriptions in Step 3).

  • Page 32: Lcd Display

    LCD Display The LCD display information will be switched in turn by pressing the “ ” or “ ” button. The selectable information is switched as the following table in order. Selectable information LCD display Input Voltage=230V, Input frequency=50Hz Input Voltage=230V, Input current=4.8A Utility voltage/ Utility frequency, Utility current switch every 5 second...
  • Page 33 Battery voltage=50.4V, Bulk charging voltage=56.4V, Charging current=20A Battery voltage=53.9V, Floating charging voltage=54.0V, Charging current=1A Battery voltage, charging stage/ Configured battery parameters/ Charging or discharging current Default Display Battery voltage=50.4V, Low DC cut-off voltage=44.0V, Screen Discharging current=48A Output voltage=230V, Output frequency=50Hz Output voltage, load in VA, load in Watt switch every 5 second/ Output frequency...
  • Page 34 Load in VA=2.4kVA, Output frequency=50Hz Output voltage, load in VA, load in Watt switch every 5 second/ Output Load in Watt=2.4kW, Output frequency=50Hz frequency Default Display Screen Real date Dec 14, 2020. Real date. Real time 11:38. Real time.
  • Page 35 PV energy generated today=888Wh. PV energy generated today PV energy generated this month=8.88kWh. PV energy generated this month PV energy generated this year=88.8kWh. PV energy generated this year...
  • Page 36 Total PV energy generated =888kWh. PV energy generated totally. Load energy Today =888Wh. Load output energy today. Load energy this month = 8.88kWh. Load output energy this month. Load energy this year =88.8kWh. Load output energy this year.
  • Page 37 Total Load Output energy=888kWh. Total load output energy. Main CPU version 00050.72. Main CPU version checking. Secondary CPU version 00022.01. Secondary CPU version checking. Wi-Fi version 00088.88. Wi-Fi version checking.

  • Page 38: Operating Mode Description

    Operating Mode Description Operation mode Description LCD display Charging by utility and PV energy. Charging by utility. Standby mode Charging by PV energy. Note: No output is supplied *Standby mode: The by the unit but it still inverter is not turned on can charge batteries.
  • Page 39 PV energy charges battery and feeds remaining energy to the grid. Charging by utility and PV energy. Charging by utility. Fault mode Note: *Fault mode: Errors are PV energy and utility caused by inside circuit can charge batteries. error or external reasons such as over temperature, output short circuited and Charging by PV energy.
  • Page 40 Charging by utility and PV energy. Charging by utility. The unit will provide If “SUB” (solar first) is selected as output source output power from the priority and solar energy is not sufficient to provide the load, solar energy and the utility will provide the loads Line Mode mains.
  • Page 41 Power from utility Power is only generated from PV energy and feeds PV energy to grid when battery is not connected. The unit will provide output power from the Line Mode mains. It will also charge the battery at line mode. PV energy charges battery, provides power to the load and feeds remaining energy to the grid.
  • Page 42 Power from battery and PV energy. PV energy will supply power to the loads and charge battery at the same time. No utility is available. The unit will provide output power from Battery Mode battery and/or PV Power from battery only. power.

  • Page 43: Faults Reference Code

    Faults Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature Battery voltage is too high Battery voltage is too low Output short circuited. Output voltage is too high. Overload time out Bus voltage is too high Bus soft start failed PV over current PV over voltage...

  • Page 44: Warning Indicator

    Warning Indicator Warning Warning Event Audible Alarm Icon flashing Code Beep three times every Fan is locked when inverter is on. second Over temperature None Battery is over-charged Beep once every second Low battery Beep once every second Beep once every 0.5 Overload second Output power derating...

  • Page 45: Clearance And Maintenance For Anti-Dust Kit

    CLEARANCE AND MAINTENANCE FOR ANTI-DUST KIT Overview Every inverter is already installed with anti-dusk kit from factory. Inverter will automatically detect this kit and activate internal thermal sensor to adjust internal temperature. This kit also keeps dusk from your inverter and increases product reliability in harsh environment.

  • Page 46: Battery Equalization

    BATTERY EQUALIZATION Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery.

  • Page 47: Specifications

    SPECIFICATIONS Table 1 Line Mode Specifications MODEL 3.2KW Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac± 7V (UPS) Low Loss Voltage 90Vac± 7V (Appliances) 180Vac± 7V (UPS); Low Loss Return Voltage 100Vac± 7V (Appliances) High Loss Voltage 280Vac±...
  • Page 48 Table 2 Inverter Mode Specifications MODEL 3.2KW Rated Output Power 3200W Output Voltage Waveform Pure Sine Wave Output Voltage Regulation 230Vac± 5% Output Frequency 60Hz or 50Hz Peak Efficiency Overload Protection 5s@≥130% load; 10s@105%~130% load Surge Capacity 2* rated power for 5 seconds Low DC Warning Voltage @ load <...
  • Page 49 Table 3 Charge Mode Specifications Utility Charging Mode MODEL 3.2KW Charging Current (UPS) 100A(@V =230Vac) @ Nominal Input Voltage Flooded 29.2Vdc Battery Bulk Charging Voltage AGM / Gel 28.2Vdc Battery Floating Charging Voltage 27Vdc Overcharge Protection 33Vdc Charging Algorithm 3-Step Battery Voltage, per cell Charging Current, % 2.43Vdc (2.35Vdc)
  • Page 50 Table 4 General Specifications MODEL 3.2KW Safety Certification Operating Temperature Range -10°C to 50°C Storage temperature -15°C~ 60°C Humidity 5% to 95% Relative Humidity (Non-condensing) Dimension 115 x 300 x 400 (D*W*H), mm Net Weight, kg...

  • Page 51: Trouble Shooting

    TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.

  • Page 52: Appendix I: Bms Communication Installation

    Appendix I: BMS Communication Installation 1. Introduction If connecting to lithium battery, it is recommended to purchase a custom-made RJ45 communication cable. Please check with your dealer or integrator for details. This custom-made RJ45 communication cable delivers information and signal between lithium battery and the inverter.
  • Page 53 NOTE: “1” is upper position and “0” is bottom position. Dip 1 Dip 2 Dip 3 Dip 4 Group address Single group only. It’s required to set up master battery with this setting and slave batteries are unrestricted. Multiple group condition. It’s required to set up master battery on the first group with this setting and slave batteries are unrestricted.
  • Page 54 Note for parallel system: 1. Only support common battery installation. 2. Use custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery. Simply set this inverter battery type to “LIB” in LCD program 5. Others should be “USE”. Step 2.
  • Page 55 PYLONTECH Step 1. Use custom-made RJ45 cable to connect inverter and Lithium battery. Note for parallel system: 1. Only support common battery installation. 2. Use custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
  • Page 56 If communication between the inverter and battery is successful, the battery icon on LCD display will flash. Generally speaking, it will take longer than 1 minute to establish communication. WECO Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1.
  • Page 57 SOLTARO Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Please take notice for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
  • Page 58 Active Function This function is to activate lithium battery automatically while commissioning. After battery wiring and commissioning is successfully, if battery is not detected, the inverter will automatically activate battery if the inverter is powered on. LCD Display Information Press “ ”...

  • Page 59: Appendix Ii: The Wi-Fi Operation Guide In Remote Panel

    Appendix II: The Wi-Fi Operation Guide in Remote Panel 1. Introduction Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with WatchPower APP, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud.
  • Page 60 Then, a “Registration success” window will pop up. Tap “Go now” to continue setting local Wi-Fi network connection. Step 2: Local Wi-Fi Module Configuration Now, you are in “Wi-Fi Config” page. There are detailed setup procedure listed in “How to connect?” section and you may follow it to connect Wi-Fi.
  • Page 61 Step 3: Wi-Fi Network settings icon to select your local Wi-Fi router name (to access the internet) and enter password. Step 4: Tap “Confirm” to complete the Wi-Fi configuration between the Wi-Fi module and the Internet. If the connection fails, please repeat Step 2 and 3. Diagnose Function If the module is not monitoring properly, please tap “...
  • Page 62 2-3. Login and APP Main Function After finishing the registration and local Wi-Fi configuration, enter registered name and password to login. Note: Tick “Remember Me” for your login convenience afterwards. Overview After login is successfully, you can access “Overview” page to have overview of your monitoring devices, including overall operation situation and Energy information for Current power and Today power as below diagram.
  • Page 63 Devices Tap the icon (located on the bottom) to enter Device List page. You can review all devices here by adding or deleting Wi-Fi Module in this page. Add device Delete device icon on the top right corner and manually enter part number to add device. This part number label is pasted on the bottom of remote LCD panel.
  • Page 64 2-4. Device List In Device List page, you can pull down to refresh the device information and then tap any device you want to check up for its real-time status and related information as well as to change parameter settings. Please refer to the parameter setting list.
  • Page 65 【Battery Mode】Inverter will power the load from the batter with or without PV charging. Only PV source can charge battery. Device Alarm and Name Modification In this page, tap the icon on the top right corner to enter the device alarm page. Then, you can review alarm history and detailed information.
  • Page 66 【Rated Information】displays information of Nominal AC voltage, Nominal AC current, Rated battery voltage, Nominal output voltage, Nominal output frequency, Nominal output current, Nominal output apparent power and Nominal output active power. Please slide up to see more rated information. 【History】displays the record of unit information and setting timely. 【Wi-Fi Module Information】displays of Wi-Fi Module PN, status and firmware version.
  • Page 67 voltage discharge. Charger source To configure charger source priority. priority: Max. charging current It’s to set up battery charging parameters. The selectable values in Max. AC different inverter model may vary. charging current: Please see product manual for the details. Float charging voltage It’s to set up battery charging parameters.
