Removing/Installing the pelvic support layer

NOTE: For this procedure, refer to FIGURE 4.
NOTE: The cushion comes with a fluid/air pelvic support layer.
Removing the pelvic support layer
1. Remove cushion from inner and outer covers. Refer to Removing/Installing the cushion covers
on page 4.
2. Unfasten the front strap, the rear strap, and the two side straps.
3. Lift the existing pelvic support layer and remove from the foam.
Installing the pelvic support layer
1. Center the pelvic support layer on the foam so that the side straps are centered in the contours on
each side of the foam.
2. Fasten the rear, front, and side straps together at the bottom of the foam.
NOTE: DO NOT over‐tighten the straps. The pelvic support layer MUST be free to move with the cushion.
3. Reinstall cushion into inner and outer covers. Refer to Removing/Installing the cushion covers on
page 4.
Rear Strap
(not shown)
Foam Contour
InTouch™ Flovair Cushion
Side Strap

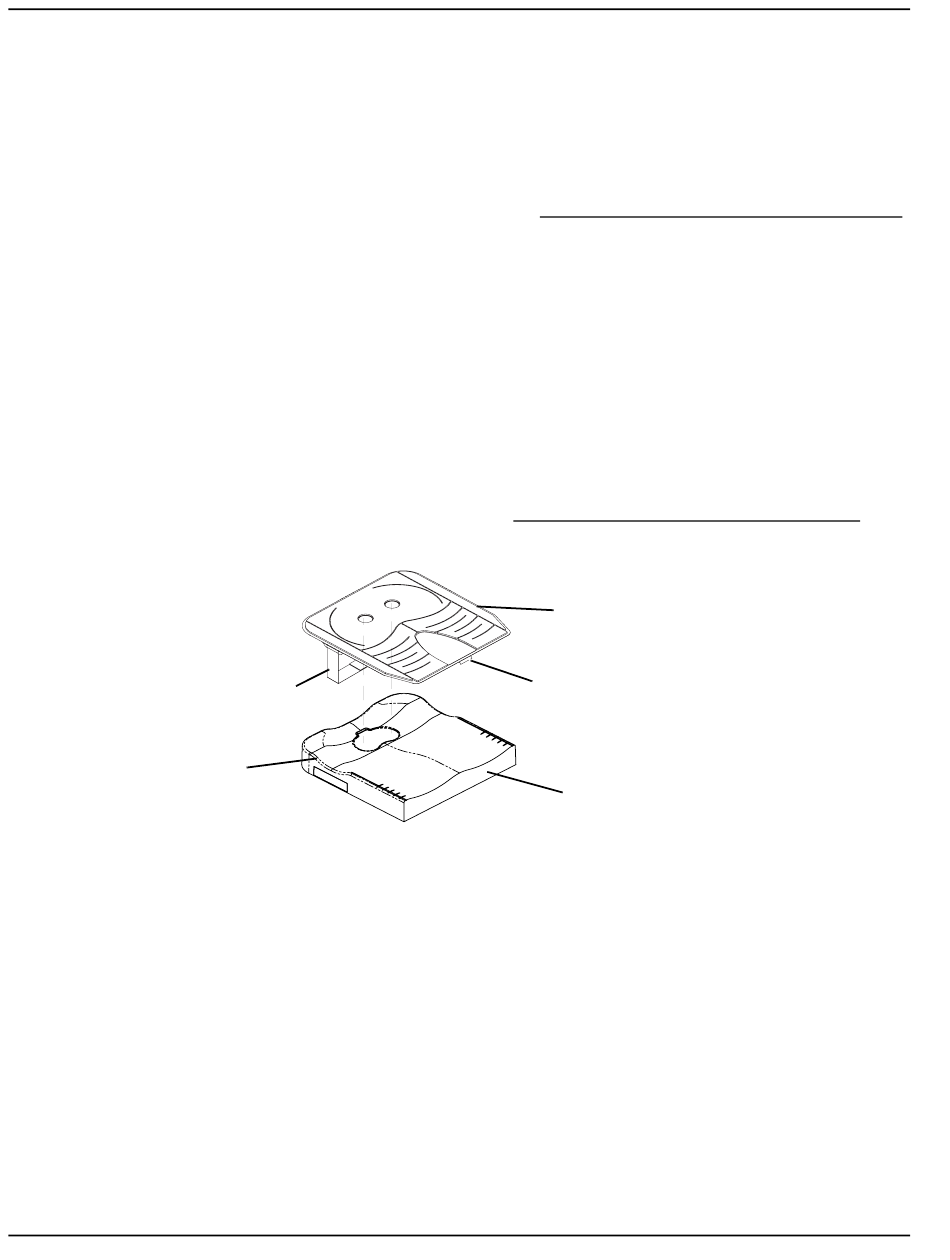

FIGURE 4 Removing/Installing the pelvic support layer
Pelvic Support Layer
Front Strap
Cushion
6
Part No 1141447
