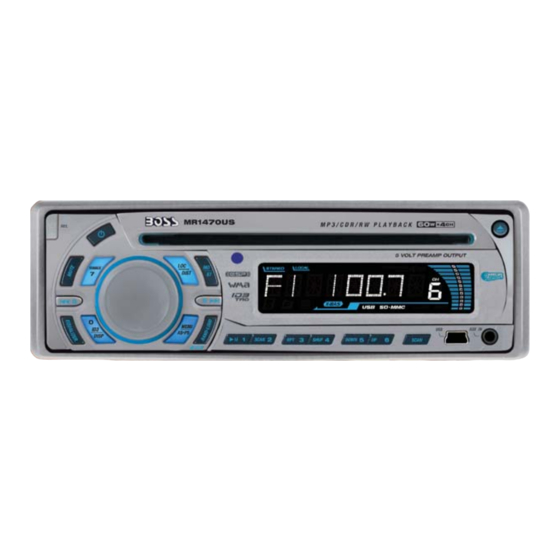

Mp3 compatible in-dash marine cd receiver with front panel aux input and usb port
Hide thumbs
Table of Contents

Advertisement

Quick Links

4
10 R - 02 0896

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR1470UW and is the answer not in the manual?

Questions and answers

Related Manuals for Boss marine MR1470UW

Summary of Contents for Boss marine MR1470UW

  • Page 1 10 R - 02 0896...

  • Page 2: Table Of Contents

    CONTENTS LIST PAGE CONTENTS BUTTONS LOCATION AND FUNCTIONS HANDLING COMPACT DISCS ACCESSORY INCLUDED INSTALLATION DETACHABLE CONTROL PANEL WIRING DIAGRAM BASIC OPERATIONS AUDIO OPERATIONS RADIO OPERATIONS CD OPERATIONS USB DRIVE OPERATIONS SD/MMC OPERATIONS MP3/WMA OPERATIONS REMOTE CONTROL SPECIFICATIONS TROUBLE SHOOTING...

  • Page 3: Buttons Location And Functions

    1. BUTTONS LOCATION AND FUNCTIONS 1. Panel Release Button 2. Mute Button 3. CD Eject Button 4. Audio Button 5. Display Button / ID3 Information Button 6. Local / Distant Button 7. Preset Memory Buttons 8. Mono / Stereo Button 9.

  • Page 4: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 5: Accessory Included

    3. ACCESSORY INCLUDED When first unpacking your new head unit, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the player. Owner’s Manual Warranty Card Remote control Lithium Battery Half Sheeve Insert Key...

  • Page 6: Installation

    4. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 7: Din Rear-Mount (Method B)

    Removing the unit Trim Plate Installation: Push the trim plate against the chassis until it is fitted. You must do this before you install the front panel, otherwise it can't be attached. DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket.

  • Page 8: Detachable Control Panel

    5. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). PANEL RELEASE BUTTON Attaching the DCP CAUTION DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.

  • Page 9: Wiring Diagram

    6. WIRING DIAGRAM (20 PIN HARNESS PLUG) CONECTOR DE 20 PINOS PARA AUDIO E ALIMENTACAO RCA-TO-RCA CABLES (not supplied) RCA-TO-RCA-KABEL (nicht geliefert) CABLES RCA-TO-RCA (non fournis.) CABOS RCA A RCA (não fornecidos) CABLES RCA A RCA (no incluidos) CAVO RCA A RCA ( non fornito) RCA-TO-RCA CABLES (not supplied)

  • Page 10: Basic Operations

    7. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display mode.

  • Page 11: Audio Operations

    8. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode.

  • Page 12: Radio Operations

    9. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2.

  • Page 13: Cd Operations

    10. CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.

  • Page 14: Usb Drive Operations

    PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 11. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not P .1 be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver.

  • Page 15: Sd/Mmc Operations

    12. SD/MMC OPERATIONS 1. Press panel release button to release the front panel.(P .1) 2. The SD/MMC card slot is located on the unit as indicated in (P .2). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound is heard.(P .3) 4.

  • Page 16: Mp3/Wma Operations

    13. MP3/WMA OPERATIONS Notes : - An MP3 directory is shown in this manual as “D - Maximum length of file name : 28 characters. - Maximum length of directory : 16 characters. - Supports Multi-Session recording. - Supports CD, CDR and CDRW. - Disc written by Packet Write (UDF) is not supported.
  • Page 17 Press MP3 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button Character A,B,C D,E,F G,H,I J,K,L...

  • Page 18: Remote Control

    14. REMOTE CONTROL OPERATIONS: Radio Mode 1. Power Power On/Off 2. Volume Up/Down Adjust Vol,Bas, Tre,Fad,Bal 3. ID3/DISP Display Clock 4.Stereo/Mono Stereo/FM Mono 5. Tuning Up/Down Tuning/Seek Up/Down 6. LOC Local/Distant 7. Scan Station Scan 8. Mute Mute Select Vol, Bas, 9.

  • Page 19: Specifications

    15. SPECIFICATIONS CD PLAYER System Compact disc audio system Usable disc Compact disc Sampling frequency 44.1KHz No of quantization bits 1bit Frequency 5-20,000Hz Number of channels 2 stereo S/N Ratio 70dB RADIO SECTION F r e q u e n c y R a n g e 87.5-107.9MHz U.S.

  • Page 20: Trouble Shooting

    16. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause No power The car ignition is not on. The fuse is blown. Disc cannot be loaded Presence of CD disc inside or ejected...
