Boss marine MR1400W User Manual
  1. Manuals
  2. Brands
  3. Boss marine Manuals
  4. Car Receiver
  5. MR1400w
  6. User manual

Boss marine MR1400W User Manual

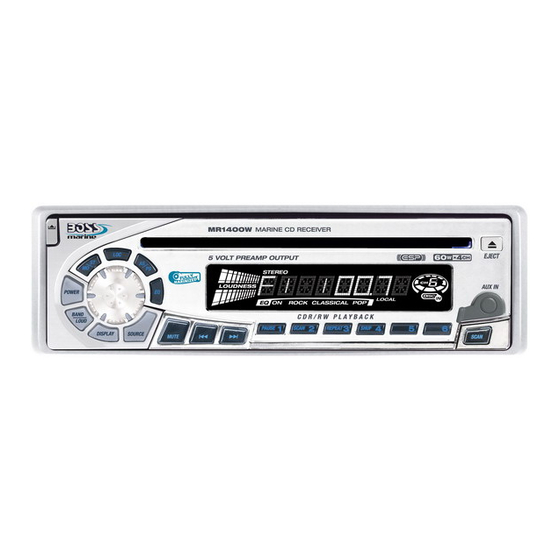

In-dash marine cd receiver
Hide thumbs Also See for MR1400W:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR1400W and is the answer not in the manual?

Questions and answers

Related Manuals for Boss marine MR1400W

Summary of Contents for Boss marine MR1400W

  • Page 2: Buttons Location And Functions

    1. BUTTONS LOCATION AND FUNCTIONS 1. Panel Release Button 1. Tecla para remover o painel frontal 2. Mute Button 2. Tecla Mute 3. CD Eject Button 3. Tecla para ejetar o disco 4. Audio Button 4. Tecla de ajuste de audio 5.

  • Page 3: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
  • Page 5 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.

  • Page 6: Detachable Control Panel (D.c.p .)

    4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P .
  • Page 7 5. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE SICHERUNG FUSIBLE ANTENNA CABLE INPUT FUSíVEL ANTENNENVERLÄNGERUNGSKABEL FUSIBLE FUSIBILE CÂBLE D'EXTENSION D' ANTENNE ENTRADA PARA CABO DE ANTENA CABLE DE ANTENA CAVO ANTENNA ESTENDIBILE 20-PIN AUDIO/POWER HARNESS (See Figure 1) WHITE 20-PIN AUDIO/STROM- KABELGESCHIRR WEISS YELLOW PLAQUE 20 FICHES AUDIO/ALIMENTATION...

  • Page 8: Basic Operations

    6. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous display mode.

  • Page 9: Audio Operations

    7. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode.

  • Page 10: Radio Operations

    8. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2.
  • Page 11 9. CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.

  • Page 12: Specifications

    12. SPECIFICATIONS CD PLAYER CD Player System Compact disc audio system Sistema: Sistema áudio CD Usable disc Compact disc Tipo de disco: Sampling frequency 44.1KHz Frequência de Amostragem: 44.1KHz No of quantization bits 1bit Conversor D/A: 1bit Frequency 5-20,000Hz Resposta de frequencia 5-20,000Hz Number of channels 2 stereo...

  • Page 13: Troubleshooting

    11.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
  • Page 14 10 R - 02 1397...
