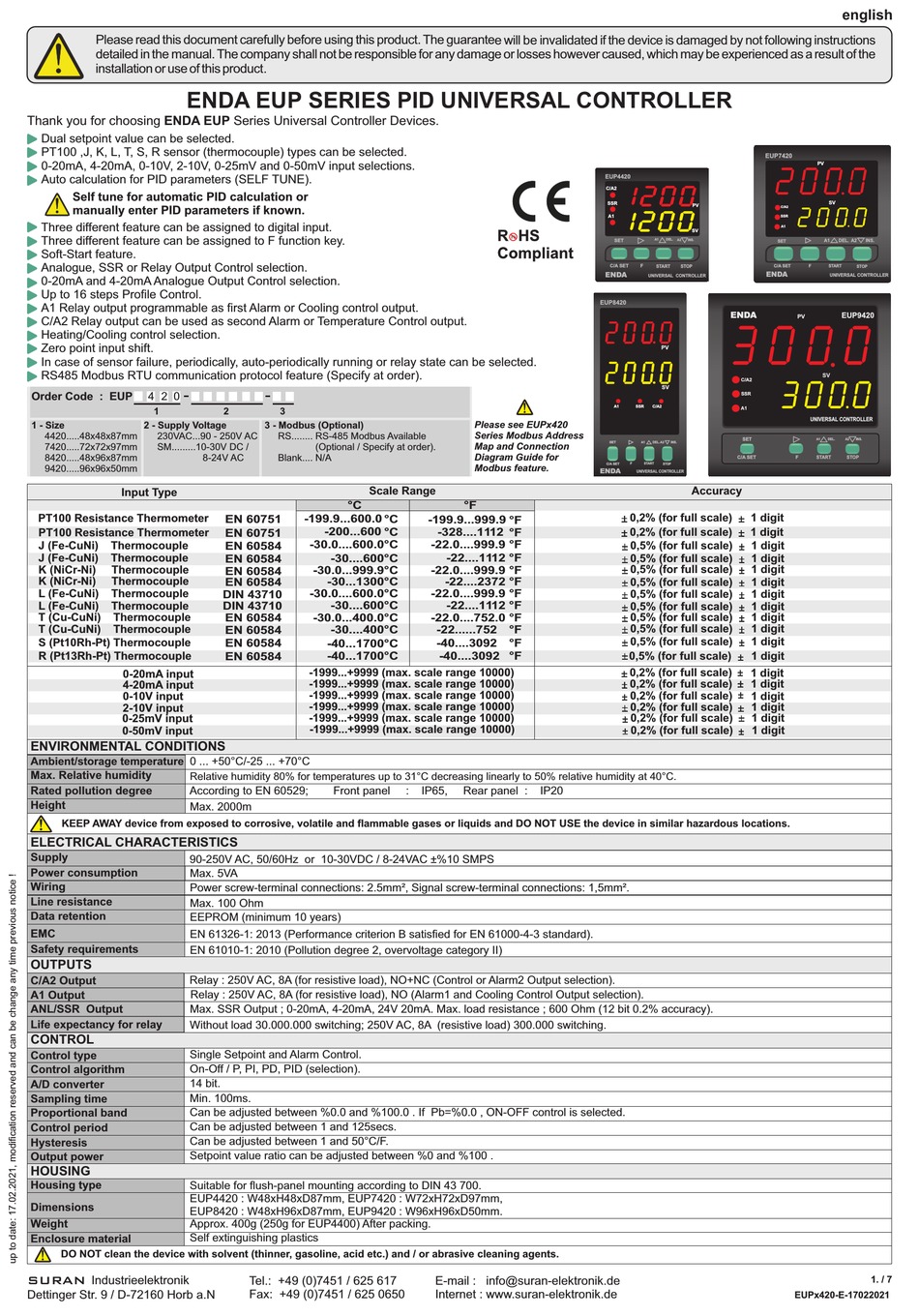

SURAN ENDA EUP Series Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is damaged by not following instructions
detailed in the manual. The company shall not be responsible for any damage or losses however caused, which may be experienced as a result of the
installation or use of this product.
ENDA EUP SERIES PID UNIVERSAL CONTROLLER
Thank you for choosing ENDA EUP Series Universal Controller Devices.
Dual setpoint value can be selected.
PT100 ,J, K, L, T, S, R sensor (thermocouple) types can be selected.
0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and 0-50mV input selections.
Auto calculation for PID parameters (SELF TUNE).
Self tune for automatic PID calculation or
manually enter PID parameters if known.
Three different feature can be assigned to digital input.
Three different feature can be assigned to F function key.
Soft-Start feature.
Analogue, SSR or Relay Output Control selection.
0-20mA and 4-20mA Analogue Output Control selection.
Up to 16 steps Profile Control.
A1 Relay output programmable as first Alarm or Cooling control output.
C/A2 Relay output can be used as second Alarm or Temperature Control output.
Heating/Cooling control selection.
Zero point input shift.
In case of sensor failure, periodically, auto-periodically running or relay state can be selected.
RS485 Modbus RTU communication protocol feature (Specify at order).
Order Code : EUP 4 2 0
1
1 - Size 2 - Supply Voltage
4420.....48x48x87mm 230VAC...90 - 250V AC
SM.........10-30V DC /
7420.....72x72x97mm
8420.....48x96x87mm
9420.....96x96x50mm
Input Type
PT100 Resistance Thermometer
PT100 Resistance Thermometer
J (Fe-CuNi) Thermocouple
J (Fe-CuNi) Thermocouple
K (NiCr-Ni) Thermocouple
K (NiCr-Ni) Thermocouple
L (Fe-CuNi) Thermocouple
L (Fe-CuNi) Thermocouple
T (Cu-CuNi) Thermocouple
T (Cu-CuNi) Thermocouple
S (Pt10Rh-Pt) Thermocouple
R (Pt13Rh-Pt) Thermocouple
0-20mA input
4-20mA input
0-10V input
2-10V input
0-25mV input
0-50mV input
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature 0 ... +50°C/-25 ... +70°C
Max. Relative humidity
Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
Rated pollution degree According to EN 60529;
Height
Max. 2000m
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
Supply
90-250V AC, 50/60Hz or 10-30VDC / 8-24VAC ±%10 SMPS
Power consumption Max. 5VA
Wiring
Power screw-terminal connections: 2.5mm², Signal screw-terminal connections: 1,5mm².
Line resistance
Max. 100 Ohm
Data retention EEPROM (minimum 10 years)
EMC EN 61326-1: 2013 (Performance criterion B satisfied for EN 61000-4-3 standard).
Safety requirements
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
OUTPUTS
C/A2 Output Relay : 250V AC, 8A (for resistive load), NO+NC (Control or Alarm2 Output selection).
A1 Output Relay : 250V AC, 8A (for resistive load), NO (Alarm1 and Cooling Control Output selection).
ANL/SSR Output Max. SSR Output ; 0-20mA, 4-20mA, 24V 20mA. Max. load resistance ; 600 Ohm (12 bit 0.2% accuracy).
Life expectancy for relay Without load 30.000.000 switching; 250V AC, 8A (resistive load) 300.000 switching.
CONTROL
Single Setpoint and Alarm Control.
Control type
Control algorithm On-Off / P, PI, PD, PID (selection).
14 bit.
A/D converter
Min. 100ms.
Sampling time
Proportional band Can be adjusted between %0.0 and %100.0 . If Pb=%0.0 , ON-OFF control is selected.
Can be adjusted between 1 and 125secs.
Control period
Can be adjusted between 1 and 50°C/F.
Hysteresis
Setpoint value ratio can be adjusted between %0 and %100 .
Output power
HOUSING
Housing type
Suitable for flush-panel mounting according to DIN 43 700.
EUP4420 : W48xH48xD87mm, EUP7420 : W72xH72xD97mm,
Dimensions
EUP8420 : W48xH96xD87mm, EUP9420 : W96xH96xD50mm.
Weight Approx. 400g (250g for EUP4400) After packing.
Enclosure material Self extinguishing plastics
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
SURAN
Industrieelektronik
Dettinger Str. 9 / D-72160 Horb a.N
2 3
3 - Modbus (Optional)
RS........ RS-485 Modbus Available
(Optional / Specify at order).
8-24V AC Blank.... N/A
Scale Range
°C
-199.9...600.0
EN 60751
-200...600
EN 60751
-30.0....600.0°C
EN 60584
-30....600°C
EN 60584
-30.0...999.9°C
EN 60584
-30...1300°C
EN 60584
DIN 43710 -30.0....600.0°C
DIN 43710 -30....600°C
EN 60584 -30.0...400.0°C
-30....400°C
EN 60584
EN 60584 -40...1700°C
-40...1700°C
EN 60584
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
-1999...+9999 (max. scale range 10000)
Front panel
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
Please see EUPx420
Series Modbus Address
Map and Connection
Diagram Guide for
Modbus feature.
°F
°C -199.9...999.9 °F
°C -328....1112 °F
-22.0....999.9 °F
-22....1112 °F
-22.0....999.9 °F
-22....2372 °F
-22.0....999.9 °F
-22....1112 °F
-22.0....752.0 °F
-22......752 °F
-40....3092 °F
-40....3092 °F
: IP65, Rear panel : IP20
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
EUP7420
EUP4420
C/A2
1200
SSR
PV
A1
1200
SV
SET A1 DEL. A2 INS.
C/A SET F STOP
START
ENDA
ENDA
UNIVERSAL CONTROLLER
EUP8420
ENDA
PV
C/A2
SV
SSR
A1 SSR C/A2
A1
SET
SET A1 DEL. A2 INS.
C/A SET
START
C/A SET F STOP
ENDA
UNIVERSAL CONTROLLER
Accuracy
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,5% (for full scale) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale ) 1 digit
0,2% ( for full scale )
1 digit
0,2% ( for full scale ) 1 digit
english
PV
SV
C/A2
SSR
A1
A1 DEL. A2 INS.
SET
C/A SET F START
STOP
UNIVERSAL CONTROLLER
EUP9420
PV
SV
UNIVERSAL CONTROLLER
A1 DEL. A2 INS.
F START STOP
1. / 7
EUPx420-E-17022021
