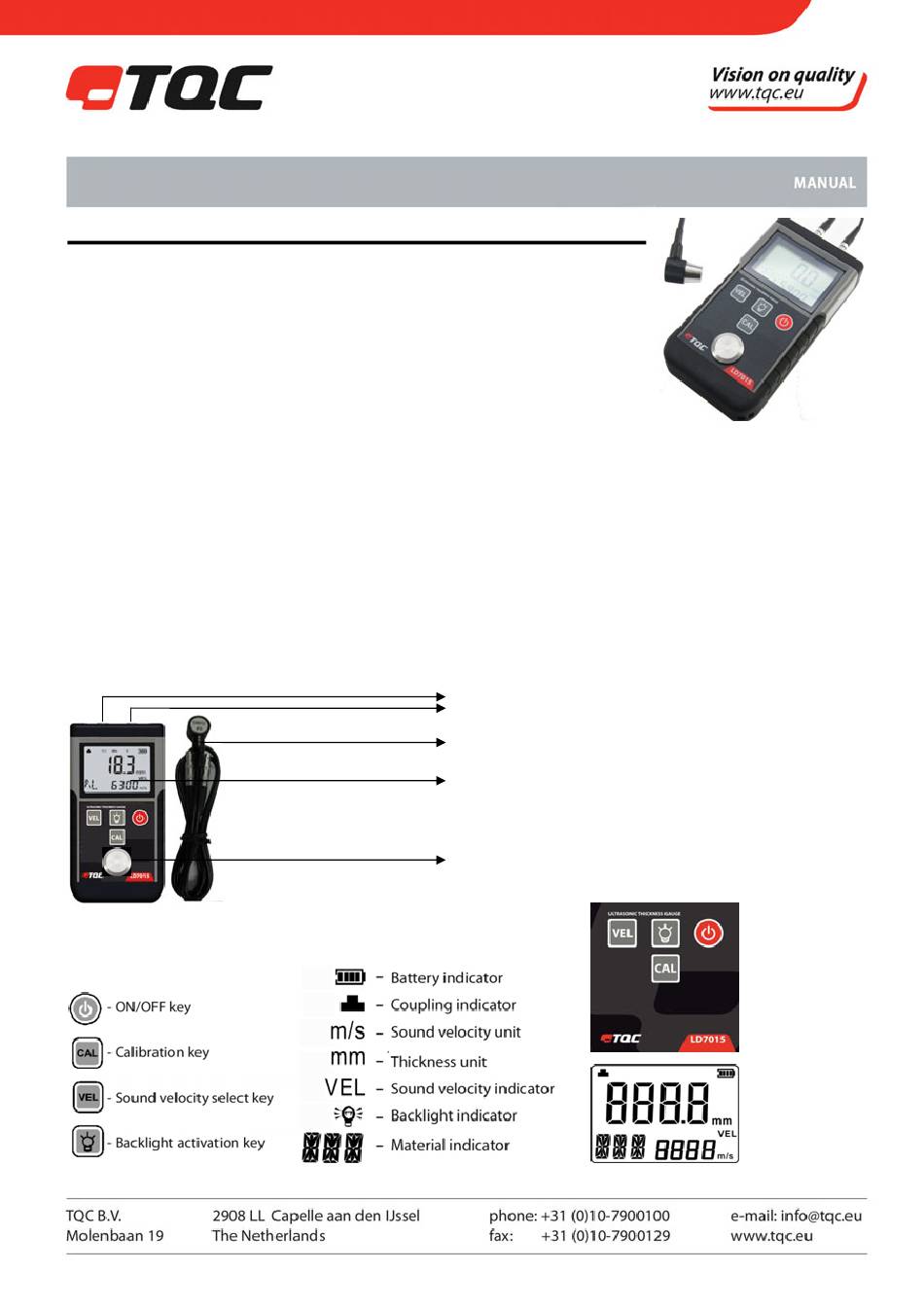

TQC ULTRASONIC THICKNESS GAUGE BASIC
Manual LD7016: page 6-13
LD7015
1 PRODUCT DESCRIPTION
Ultrasonic thickness gauge specifically designed to measure the thickness of
metallic and non-metallic materials e.g. aluminium, titanium, plastics, ceramics,
glass and plastics. It can also be used to monitor all types of pipes and pressure
vessels for loss of thickness due to corrosion or erosion. The gauge is easy to use
and will give accurate readings to an accuracy of 1%. This unit is not suitable for
cast iron due to its big crystalloid composition.
1.1 Specifications
Measuring method:
Measuring frequency:
Measuring range:
Measuring range (tubes):
Nauwkeurigheid:
Display:
Resolution:
Operation temperature:
Batteries:
Size:
1.2 Details
Ultrasonic pulse echo
5MHz
1.20 - 220 mm (steel); (deviation possible with use of other materials)
20x3mm (steel)
+/- (1%H + 0.1) mm
LCD
0.1mm
0 ºC ~ 40 ºC
3x AAA alkaline batteries (total 5V)
70x135x38mm
- Receiving plug
- Transmitting plug
- Ultrasonic probe
- LCD screen
- Calibration block
1 |
Advertisement
Table of Contents
Related Manuals for TQC LTD7015
Summary of Contents for TQC LTD7015
- Page 1 TQC ULTRASONIC THICKNESS GAUGE BASIC Manual LD7016: page 6-13 LD7015 1 PRODUCT DESCRIPTION Ultrasonic thickness gauge specifically designed to measure the thickness of metallic and non-metallic materials e.g. aluminium, titanium, plastics, ceramics, glass and plastics. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion.
-
Page 2: What's In The Box
2 WHAT’S IN THE BOX? Ultrasonic thickness gauge basic Ultrasonic gel 60ml Transducer 10mm - 5.0MHz Calibration block 3 OPERATION INSTRUCTIONS Operation area condition: This gauge can measure all samples which are equal to or bigger than the transducers surface area. Curved surface condition: When materials have a curved surfaces like a boiler wall or tubing, the curvature radius must be equal to or more than 10mm and the wall thickness must be equal to or more than 3mm. -
Page 3: Perform A Measurement
Code Material Sound Velocity (VEL) Iron/Steel 5900 Aluminium 6320 Copper 4700 Brass 4430 Zinc 4170 3320 Lead (Pb) 2400 Glass / Stainless Steel 5800 Polyvinylchloride 2390 Acrylic 2730 3. Calibration If necessary this step should be repeated; Press the “ZERO” key for 2 seconds, after a short time “CAL” will appear on the display, this indicates the unit is in calibration mode. -
Page 4: Replacing Batteries
If the instrument is not operated for over 2 minutes it will automatically switch off. 6 CALIBRATIONS We recommend annual calibration. For calibration, send the instrument, together with a RMA form* to TQC, Molenbaan 19, 2908 LL Capelle aan den IJssel, NL. - Page 5 The information given in this manual is not intended to be exhaustive and any person using the product for any purpose other than that specifically recommended in this manual without first obtaining written confirmation from us as to the suitability of the product for the intended purpose does so at his own risk. Whilst we endeavour to ensure that all advice we give about the product (whether in this manual or otherwise) is correct we have no control over either the quality or condition of the product or the many factors affecting the use and application of the product.
-
Page 6: Product Description
TQC ULTRASONIC THICKNESS GAUGE PRO LD7016 1 PRODUCT DESCRIPTION Ultrasonic thickness gauge specifically designed to measure the thickness of metallic and non-metallic materials e.g. aluminium, titanium, plastics, ceramics, glass and plastics. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion. - Page 7 2 WHAT’S IN THE BOX? Ultrasonic wall thickness gauge Coupling gel 60ml Probe 10mm - 2.5MHz Probe 10mm - 5.0MHz Calibration plate 3 OPERATION INSTRUCTIONS Operation area condition: This gauge can measure all samples which are equal to or bigger than the probes surface area.
- Page 8 2. Sound velocity selection and adjustment. Press “VEL” key to enter the sound velocity interface, press again, you can now select the velocity data by pressing the word “VEL” will be blinking on the display. If you need to adjust the sound velocity, press the “VEL”...
- Page 9 5.2 Sound velocity measurement To get a read out of sound velocity of the material with a known thickness: Obtain the thickness of the material by using a micrometer or calliper, then put the probe on the material until a value appears on the display. Remove the probe and press to adjust the value to match the same thickness as measured with the micrometer/calliper.
- Page 10 the backlight will be activated. Every operation the backlight will turn on for 7sec. until the gauge is switched off again. If the gauge is not operated for over 2 minutes, it will automatically switch off and the backlight function will be cancelled. 5.7 Measurement tips 1.
- Page 11 With different materials and situations, only one sample block may not be enough to get the most exact calibration. The more similar sample blocks, the more exact readings will be obtained. Ideally reference blocks are a group of different thicknesses of the same material. When calibration the gauge with different blocks, the variation of sound velocity will be minimised.
- Page 12 5. Multilayer-composite material It is impossible to read out the thickness of uncoupled multilayer’s as the ultrasonic wave cannot go through into the uncoupled space. Furthermore, the sonic wave cannot go through in to the composite material at an even speed. So ultrasonic reflect principles cannot be applied for measuring multilayer’s and composite material.
- Page 13 6 CALIBRATIONS We recommend annual calibration. For calibration, send the instrument, together with a RMA form* to TQC, Molenbaan 19, 2908 LL Capelle aan den IJssel, NL. *You can download the RMA form here: http://www.tqc.eu/en/service/repairs-calibrations/ 7 REPLACING BATTERIES When the batteries are low the battery icon will appear on the display. Turn the instrument of by pressing the ON/OFF button.
