Quick Guide
TPMS Lite Antenna Installation

_____________________________________________________________________________________
Introduction
This document will describe the fitting of the TPMS antennas to a vehicle.  Please ensure you read this
guide carefully to obtain the best performance out of the system.

Antenna Details

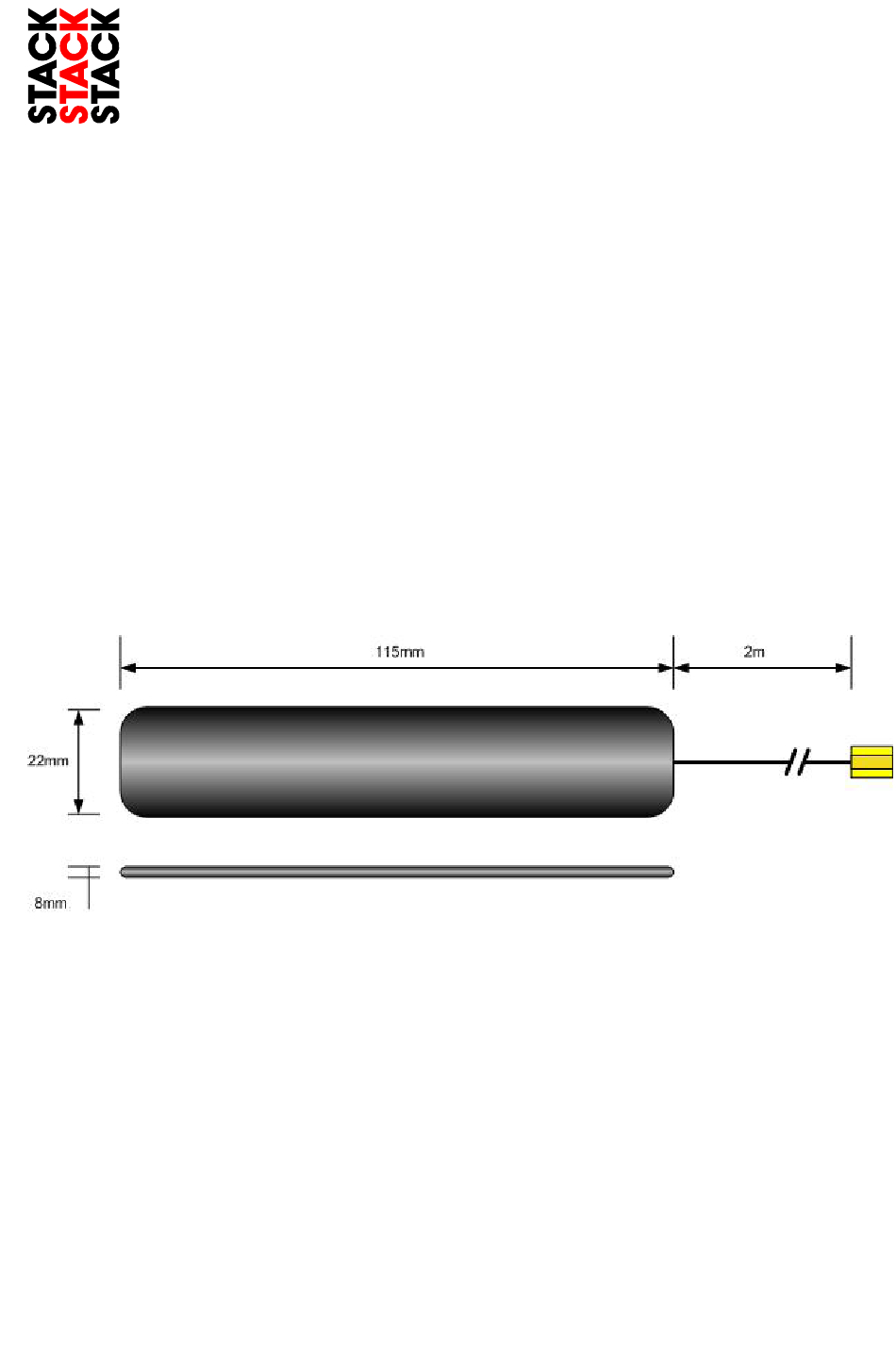

The antenna is an advanced single band antenna. For optimum system performance care should be take
to fit the antennas according to the guidelines in this document. The system performance can be
impaired with poor antenna placement.

The goal of choosing an antenna position is to achieve the strongest signal strength over the widest
wheel rotation. There will be some points of wheel rotation where a signal will not be strong enough to
take a measurement. These are generally called NULLS. It is common to have 3 nulls per rotation of the
wheel.

Each antenna is supplied with a strip of hook and loop tape. It is recommended that the antenna is
mounted with this.

Antenna Installation
As previously mentioned the goal of the antenna installation is to achieve the strongest signal strength
over the widest possible rotation angle of the wheel. To help it is best to use the supplied TPMS Config
software monitor mode. The important parameter to monitor is the SAW Strength value. This will give
you real‐time feedback of the signal strength from the sensor. Please refer to the TPMS software
configuration guide for further information.
