Saxby 1A Operating Instructions

SAXBY
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.

Warning:

This unit is Safety Extra Low Voltage and must not be earthed.
Please read these instructions carefully before commencing any work.
III
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
This system operates at Safety Extra Low Voltage (12V), via a transformer. Never connect the light fittings directly
to the mains without using a transformer.
Always unplug the transformer from the mains when installing or maintaining this system.
Only use the correct type and wattage bulb.
When changing a bulb, always switch off at the mains and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
This product can be dimmed using a compatible dimmer and transformer.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.

Layout:

• Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the
transformer, connector block (if used) and each light fitting.
• Ensure that there is adequate ventilation for the transformer.
• Avoid locating any cables in positions that would cause a hazard. Position cables and connector block away
fromareas where they may be at risk from being cut, trapped or damaged.
• Cables that are to be in walls must be protected using suitable conduit or plastic trunking.

Installation:

1. Position the transformer next to the mains source
that the system will connect to. Do not connect at
this stage.
2. After deciding the position of the light fitting, ensure
that long enough cables are fitted to connect in the
desired position.

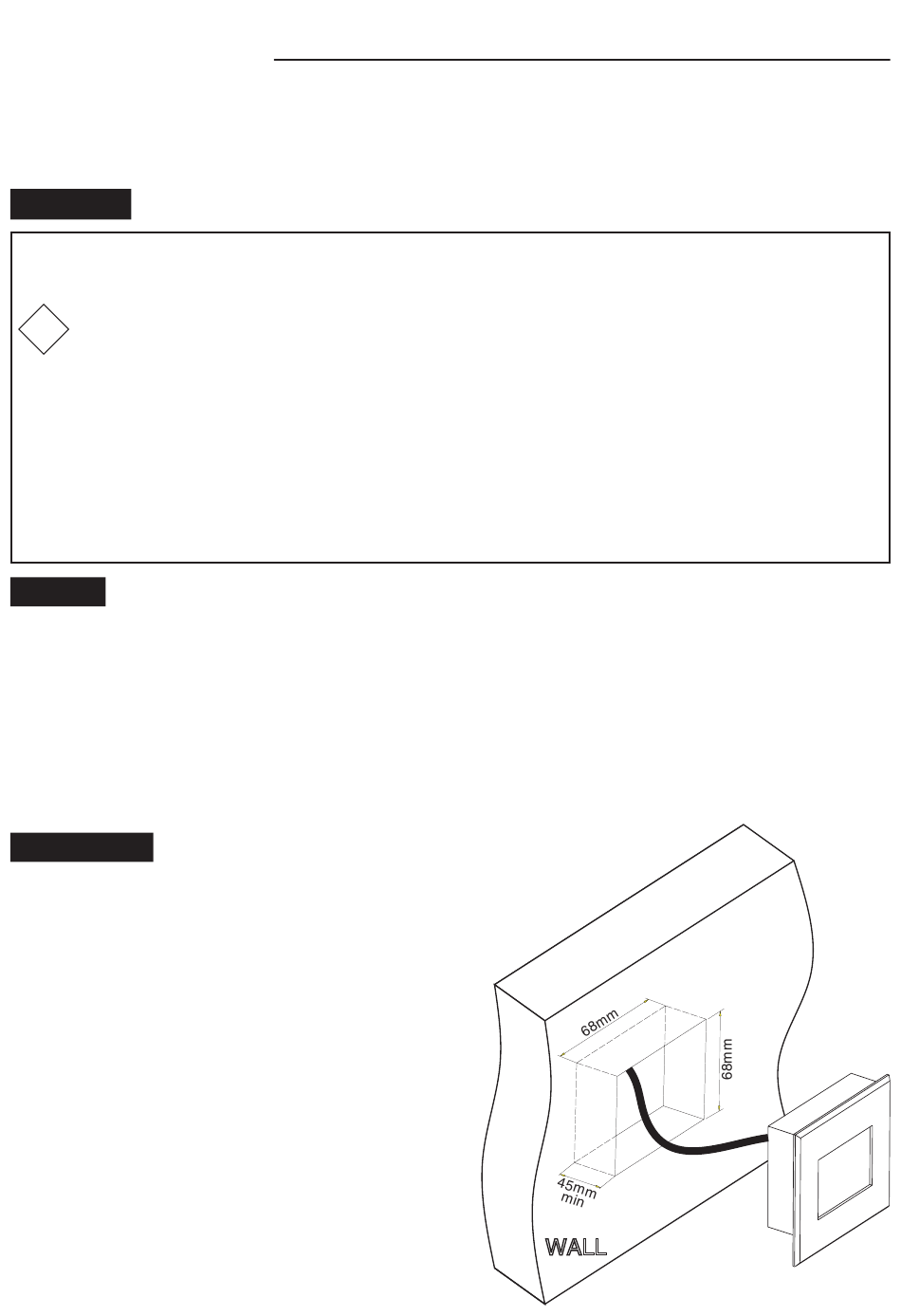

3. Cut the mounting hole for the light unit taking care
not to damage any pipes or mains cables beneath
the mounting surface. The hole size needs to be 68
x 68mm and a minimum of 45mm deep.
Design
1A, 1B, 1C,1D
WALL
