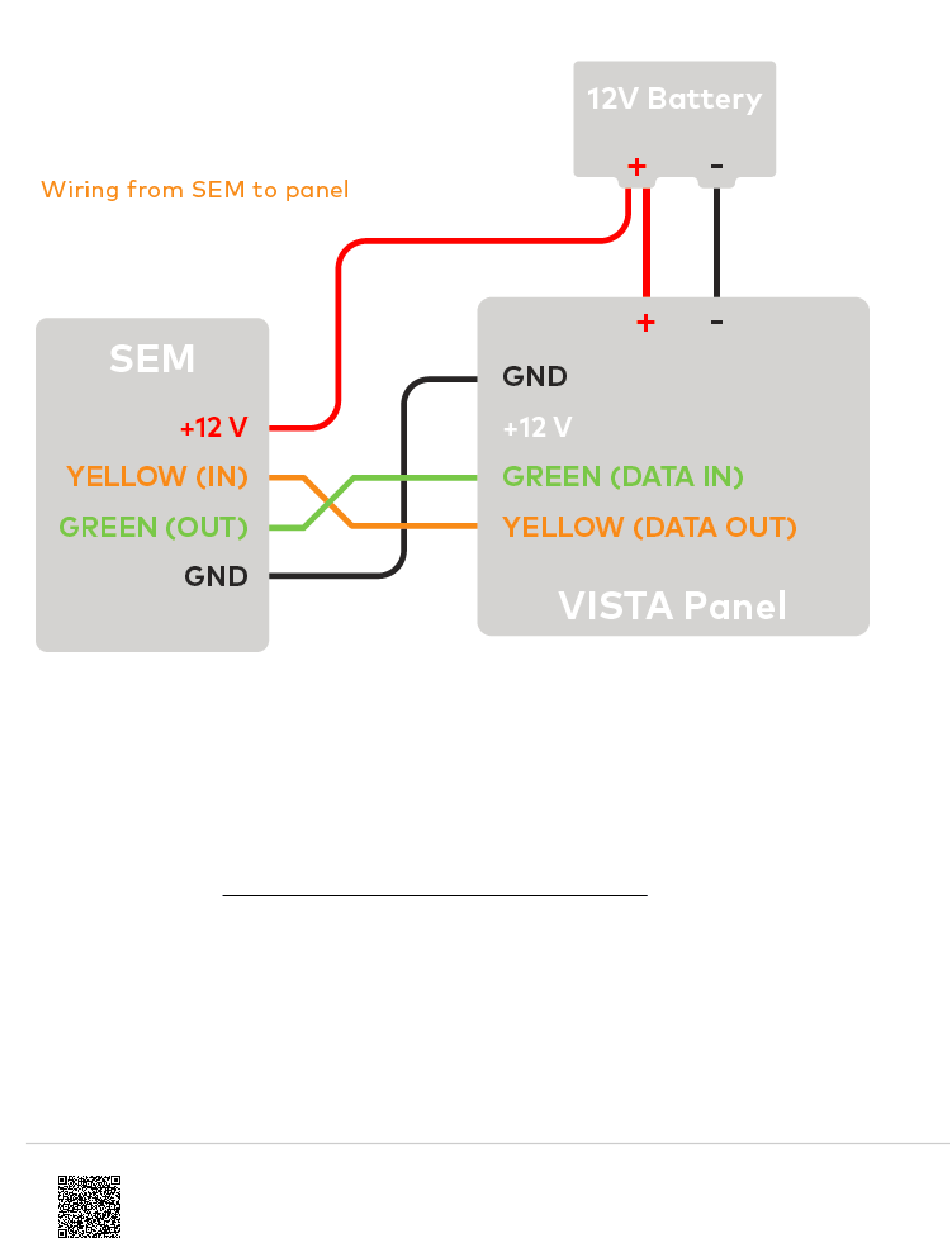

To wire the panel:
1. Connect panel terminal 4 (GND) to SEM GND, panel terminal 6 (GREEN: DATA IN FROM KEYPAD) to GREEN
(OUT), and panel terminal 7 (YELLOW: KEYPAD DATA OUT) to YELLOW (IN).
2. Using the included red cable with the two-prong battery connector, connect the battery to both the SEM and the
panel. For a power limited circuit, ensure the fuse is inside the Vista panel.
3. Connect an Ethernet cable to the pre-installed Ethernet jack to utilize Dual-Path communication. Local network
changes may be required before the broadband path activates. For more information about Dual-Path
communication, see
4. Remove the snap-off plastics from the enclosure side at the desired locations, then route the cables around the
internal strain relief walls and out the side of the enclosure.
5. Before completing the mounting, verify the wiring connections are secure and all internal components are in their
proper location.
6. Then close the enclosure by sliding the cover into the mounting points at the top of the enclosure base and then
swinging down the cover to snap the thumb tabs into place.
https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Panels/SEM_Honeywell_ADEMCO_Vista/SEM-Ho...
Configure Dual-Path communication for a panel remotely.
