Fracarro FRPRO EVO HD Operating Instructions

PROGRAMMABLE CLUSTER HEADEND
It is possible to download the FRPRO EVO HD manual on the relative product's page on www.fracarro.com web site

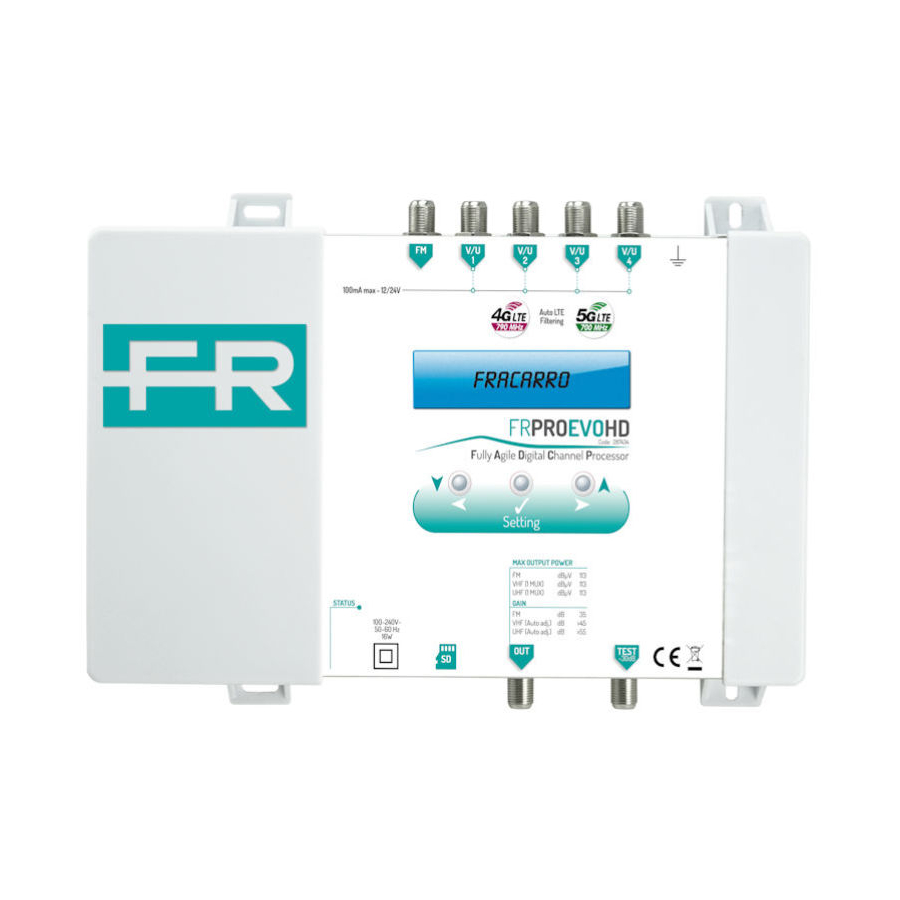

The Fracarro FRPRO EVO HD is an high selective programmable compact headend for filter, convert and amplify the
VHF/UHF Digital Terrestrial channels as well as mix the FM signal. The headend is a complete Digital Channel Processor
that can be used on small, medium or high installation plants as well as in hospitality environments.
Can process and convert more than 50 independent RF channels with very high selectivity on adjacent multiplexes.
AGC automatic gain control circuit on all individual VHF and UHF input multiplexes.
Isofrequency or converted channel filtering for every multiplex coming from VHF or UHF input.
Security code available to avoid incidental settings.
5 independent inputs: 1 FM input and 4 VHF/UHF flexible inputs; with selectable 12-24V remote power on VHF and
UHF inputs.
SD slot to save or copy a configuration to another headend.
FRPRO EVO HD
OPERATING INSTRUCTIONS

PRODUCT DESCRIPTION
