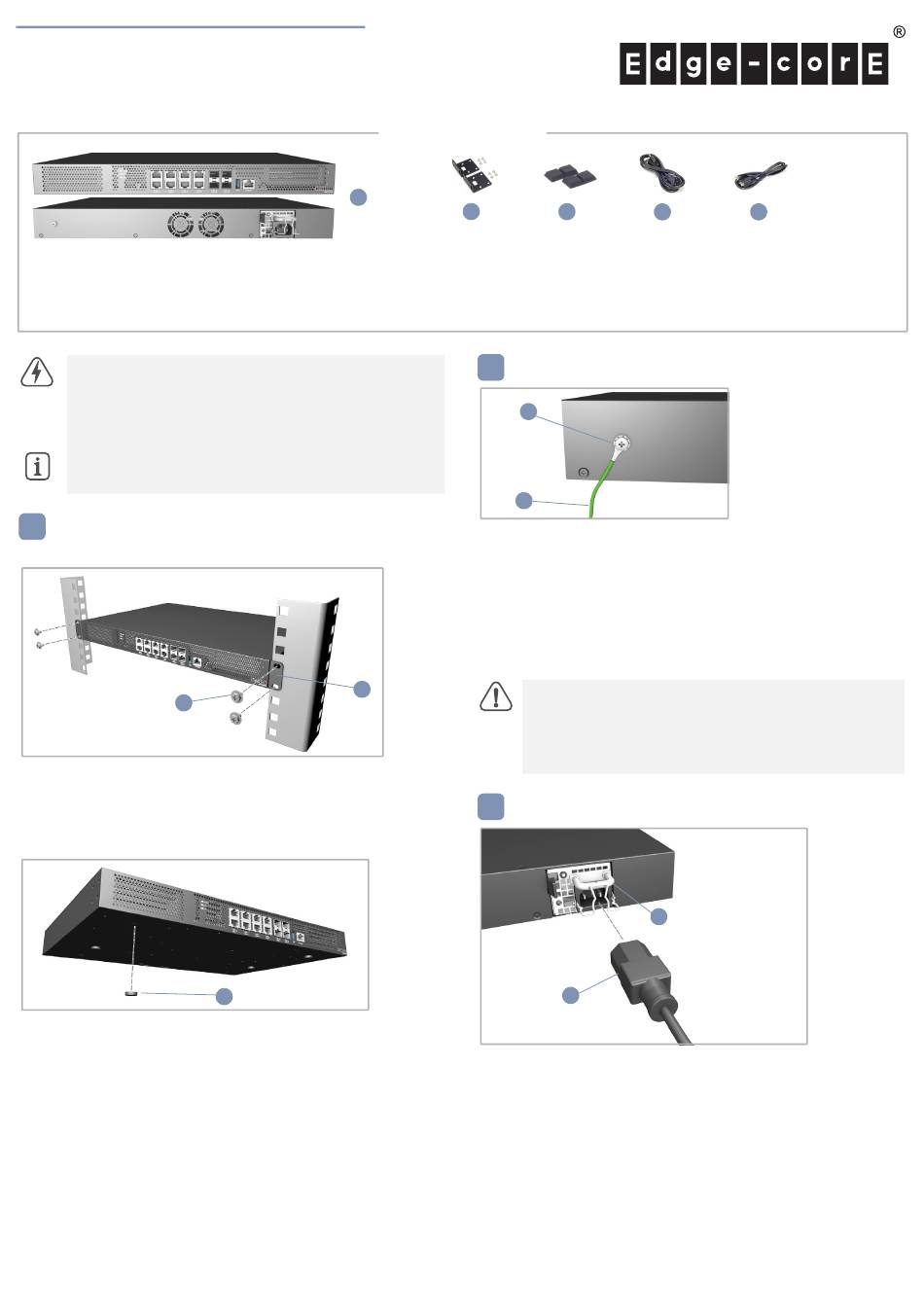

Edge-Core SAF51015I Quick Start Manual

Quick Start Guide
Network Appliance Platform
SAF51015I
1. Network Appliance Platform SAF51015I
2. Rackmount Kit—2 brackets and 8 screws
3. Four adhesive foot pads
Warning: This equipment is not suitable for use in
locations where children are likely to be present.
Avertissement: Cet équipement ne peut pas être utilisé
dans des endroits où des enfants sont susceptibles d'être
présents.
Note: The device is an open platform with Ubuntu Linux
pre-installed, but no application software.
1

Mount the Device

Rackmount the Device
2
1. Attach the brackets to the device.
2. Use the screws and cage nuts supplied with the rack to secure
the device in the rack.
Desktop Mount the Device
1. The device can be installed on a desktop or shelf using the
included adhesive rubber foot pads.
www.edge-core.com

Package Contents

1
1
1
2 3
4. Power Cord—either Japan, US, Continental Europe or UK
5. Console Cable—RJ-45 to DB-9
2

Ground the Device

1
2
1. Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2. Attach the grounding wire (#18 AWG) to the grounding point
on the device rear panel. Then connect the other end of the wire
to rack ground.
Caution: The earth connection must not be removed unless
all supply connections have been disconnected.
Attention: Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d'alimentation ont été
débranchées.
3

Connect Power

2
1. Install one AC PSU in the device.
2. Connect an external AC power source to the PSU.
– 1 –
4 5
1
E032019-CS-R01
150200002014A
