THIS GUIDE IS INTENDED FOR QUICK REFERENCE ONLY. DO NOT USE IT TO REPLACE REQUIRED
TRAINING, STANDARD OPERATING GUIDELINES REQUIRED BY THE AUTHORITY HAVING JURISDIC-
TION, THE OPERATION INSTALLATION MAINTENANCE MANUAL, OR APPROPRIATE QUALIFICATIONS.
THIS GUIDE INCLUDES TWO ADDENDUMS: ONE FOR REMOTE CONTROL OF SAM USING THE TABLET.
THE SECOND FOR OPERATING SAM WITH AN OPTIONAL CAFS OR S
QSG P/N FSG–MNL–00209 REVISION A
COPYRIGHT © 2019 BY HALE PRODUCTS, INC. ALL RIGHTS RESERVED

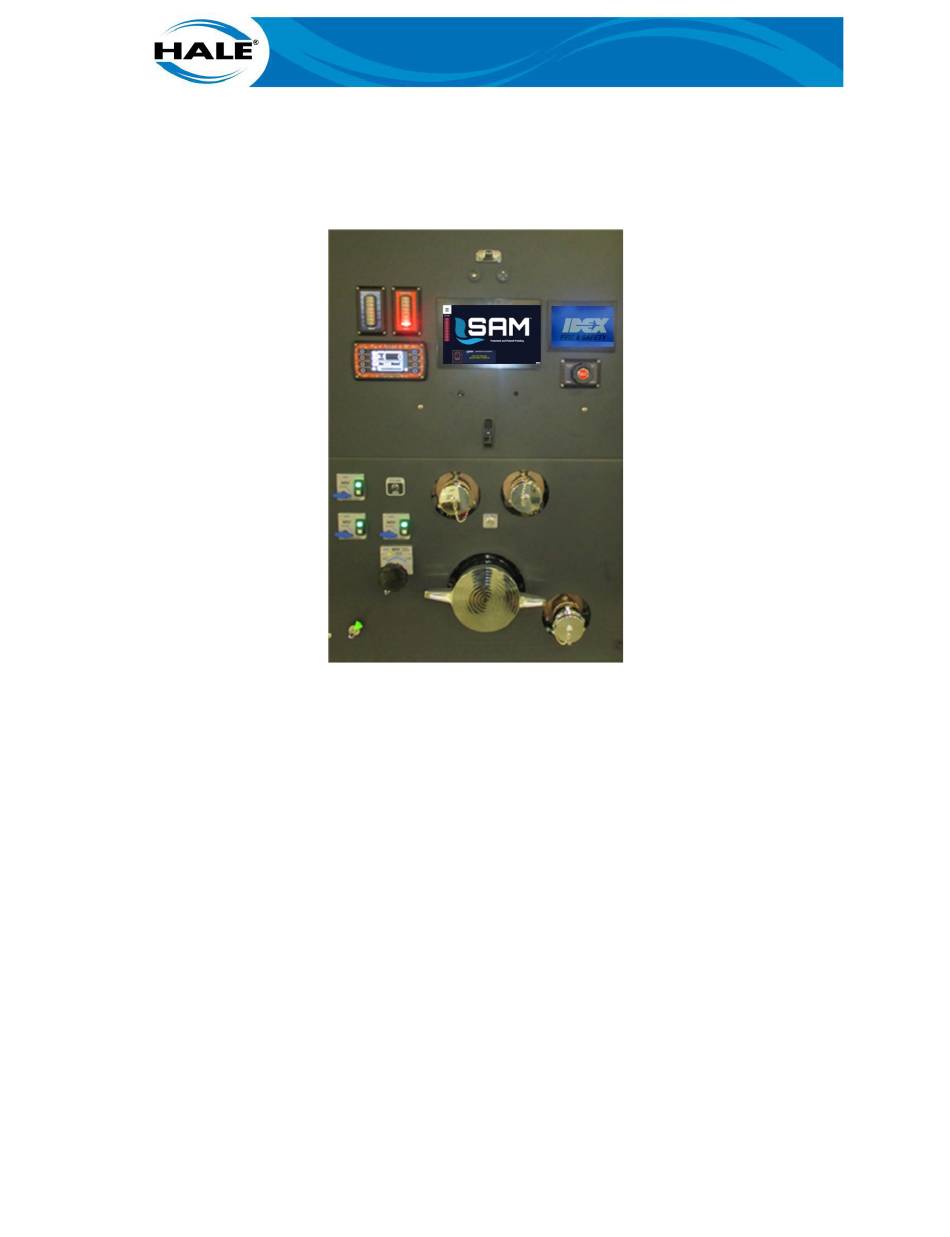

QUICK START GUIDE
SAM (G
ENERATION
BY
HALE PRODUCTS, INC.
A Unit of IDEX Corporation
607 NW 27th Ave, Ocala, FL 34475
(800) 533.3569
(800) 520.3473 (FAX)
www.haleproducts.com
NOTICES
)
2
FOAM SYSTEM.
MART
REFERENCE OIM MANUAL P/N FSG–MNL–00210
Advertisement
Related Manuals for HALE SAM GENERATION 2
Summary of Contents for HALE SAM GENERATION 2
- Page 1 THIS GUIDE INCLUDES TWO ADDENDUMS: ONE FOR REMOTE CONTROL OF SAM USING THE TABLET. THE SECOND FOR OPERATING SAM WITH AN OPTIONAL CAFS OR S FOAM SYSTEM. MART QSG P/N FSG–MNL–00209 REVISION A REFERENCE OIM MANUAL P/N FSG–MNL–00210 COPYRIGHT © 2019 BY HALE PRODUCTS, INC. ALL RIGHTS RESERVED...
- Page 3 DANGERS, WARNINGS, CAUTIONS, and NOTICES consist of two parts: a heading (that identifies possible re- sult if disregarded) and a statement of the hazard (that provides the minimum precautions). The following warnings and cautions are used throughout the Hale SAM manuals. INDICATES A HAZARDOUS SITUATION, WHICH IF NOT AVOIDED WILL RESULT IN SERIOUS INJURY OR DEATH.
- Page 4 ONLY TOUCH THE SCREEN IN ONE PLACE AT A TIME. THE TOUCHSCREENS DO NOT SUPPORT MULTI–TOUCH. Figure 1. SAM Control Center (Left) And Pump Controller (Right) Additional SAM Interfaces IN AN EMERGENCY, pressing the IDLE button (Figure 2) on the twister will send the engine to idle, place SAM in Manual mode, and the governor to IDLE mode.
- Page 5 Figure 3. Entering Manual Mode (From Splash or Auto Mode Home Screen) No matter which screen is displayed, touch the MANUAL MODE button (orange) and then touch YES (to con- firm – see Figure 4) to access SAM Manual mode. Figure 4.
- Page 6 3. MANUAL (BASIC) OPERATION In Manual mode, the operator controls the intake and discharge valves and the governor directly, no auto- mated functions are provided. This mode is often used for pump testing. See Figure 5. Figure 5. Manual Governor Controls And Indicators Tank-to-pump and tank fill are controlled from the TANK screen.
- Page 7 Figure 7. SAM Control Center – MANUAL VALVE CONTROL Screen If the discharge valves are equipped with Akron Navigator Pro 9327 or 9335 controls (Figure 8), the Naviga- tors only control the associated valve when SAM is in Manual mode. To active SAM Auto Mode touch the ACTIVATE SAM AUTOFLOW button then touch YES (see Figure 4).
- Page 8 4. SAM AUTO MODE The SAM system opens the tank-to-pump valve when the pump is engaged and automatically recirculates water as required to prevent pump overheating by opening or closing the tank fill valve. NOTE: The onboard water tank is active (TANK OPEN) before any intakes. (See Figure 9) If a quickset is activated, SAM will begin flowing water.
- Page 9 Using Discharge Quicksets, Presets, And The SET PRESSURE Widget Quicksets are discharges set up by the AHJ. After ensuring hose(s) are attached and deployed, touch the as- sociated quickset bubble (lower right section of the screen, see Figure 9), drag the balloon, and drop it on the quickset target (PUSH TO PUMP) (Figure 11).
- Page 10 To change the set pressure of an open line, touch the associated Discharge Square (see right most screen on Figure 11) and use the VALVE xx screen to change the pressure setting as follows: Swipe a preset or the CLOSE LINE balloon to the SET PRESSURE target, or use the widget (see Figure 13) to increase the setting (touch +) or decrease the setting (touch –) to the desired pressure then touch YES to activate the new set- ting.
- Page 11 SAM CAN HELP PROTECT BOTH THE WATER SUPPLY AND THE PUMP; PREVENTING PUMP CAVITA- TION AND/OR VACUUM IN WATER MAINS OR COLLAPSE FROM KINKED LDH (LARGE DIAMETER HOSE). AN APPROPRIATE ALERT IS DISPLAYED (AND ANNOUNCED) AND SAM REDUCES ENGINE SPEED TO MAINTAIN INTAKE PRESSURE. NO DISCHARGES ARE CLOSED, AND SAM CONTINUES TO SUPPLY THE MAXIMUM AVAILABLE WATER.
-
Page 12: Additional Features
6. ADDITIONAL FEATURES The Pump Controller screen has additional features. The pump info and engine data screens provide de- tailed information about the pump and engine status as well as maintenance warnings. See Figure 17. Se- lect the desired screen using the buttons on the left-hand side of the screen. Figure 17.
