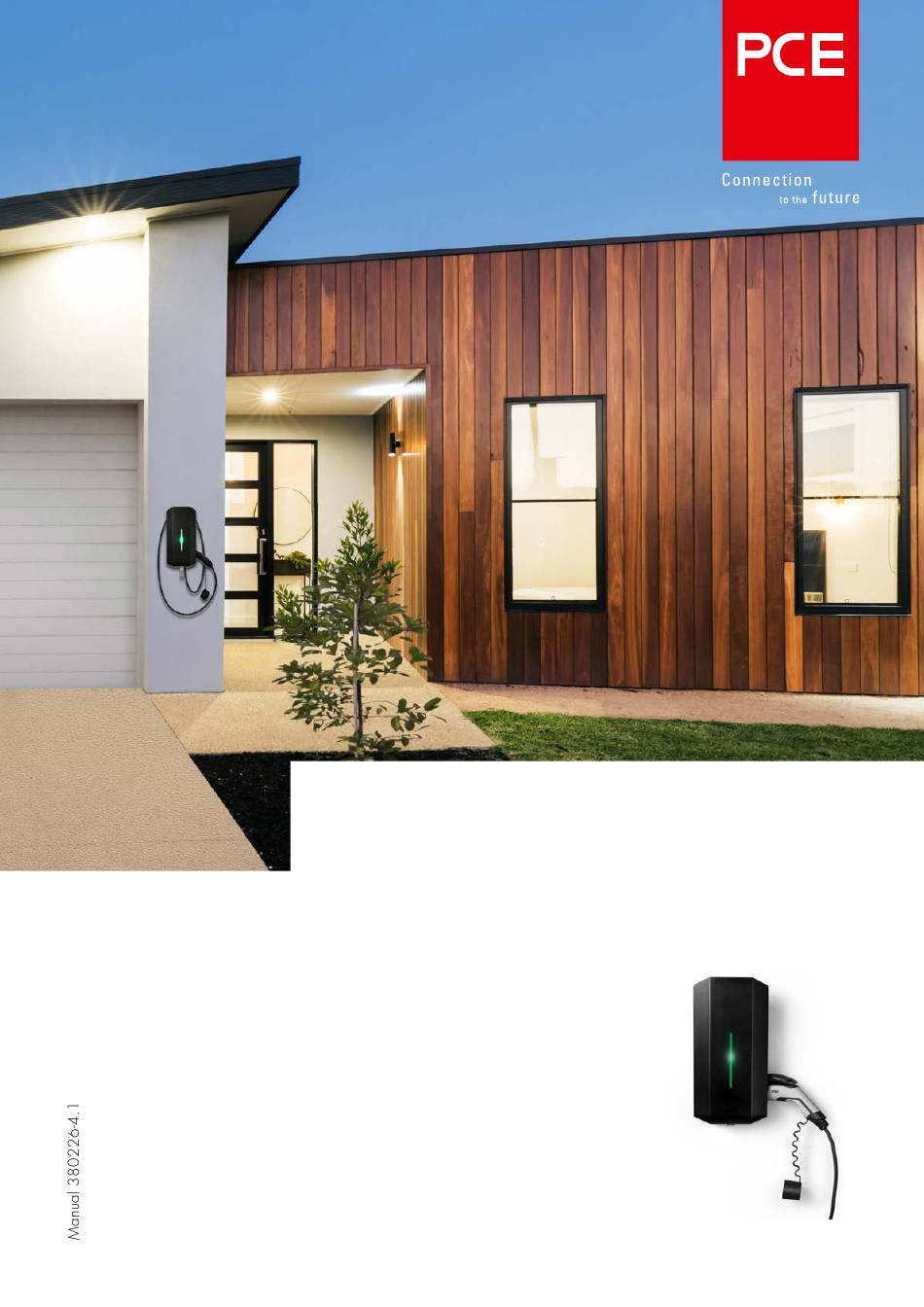

- Page 1 PCE Wallbox GLB Quickstart guide installation of standalone GLB Wallbox...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNINGS INSTALLATION OF STANDALONE GLB WALLBOX NORMAL USE / CHARGING BASIC LED INDICATIONS SOFTWARE GLB SERVICE/MAINTENANCE TROUBLESHOOTING/SUPPORT/FAQ TECHNICAL SPECIFICATIONS HANDOVER REPORT WARRANTY CONDITIONS... -
Page 3: Warnings
IP Code IP44. or submerge the charge handle in liquid. Store the charge handle in the dock to prevent unnecessary exposure to Avoid to install the GLB Wallbox in direct sunlight to avoid contamination or moisture. any heat-problems. - Page 4 (7 x T20) Drill template (see the back of the box) TERMINAL BLOCK 3-phase Serial no./SSID password Signal cable entrance 1-phase...
- Page 5 OPTIONS DLM METER INSTALLATION (ACCESSORY) DLM-Meter Adr.2 Install the DLM meter in the mains cabinet you want to monitor. Use shielded twisted pair cable between the DLM meter and the wallbox. Suitable cables: CAT5 FTP, CAT5e FTP, CAT6 FTP, ELAKY-S, ELAQBY-S or similar.
- Page 6 REMOTE ENABLE SETTING OF A WALLBOX ON (default): Use when not connected to external enable relay. OFF: Use when connected to external external enable relay enable relay. MASTER / SLAVE SETTINGS ON (default): Master OFF: Slave Stand allone installation = ON Cluster installation = See Full manual at www.pcelectric.at/de/info/emobility.
- Page 7 MAX VEHICLE CHARGING CURRENT (A) DIP-SWITCH 2 ON OFF ON OFF WALLBOX TYPE ON: Fixed cable OFF: Outlet Main fuse SW1(DIP 1-3) SW2(DIP 1-3)
- Page 8 label explaining charger (7 x T20) status indication MAX 1,6 Nm Serial No / SSID language label is placed on the side english information label TROUBLESHOOTING / INFORMATION INDICATION TYPE OF FAULT MEASURE Solid red light RCCB has tripped or EV earth check Reset.
- Page 9 DIP-SWITCH INFORMATION ON OFF Datalink Endtermination ON, OFF ON = Master Mode, OFF = Slave mode Remote enable input function. ON (default) = Open circuit, OFF = Closed circuit Fuse value in mains cabinet, see below table for settings ON OFF ON OFF ON OFF ON OFF...
-
Page 10: Installation Of Standalone Glb Wallbox
See figure 8-11. GLBDC..-..37.. Set the dip switch SW2 according to your group fuse for the GLB Wallbox ( 6-32A). Dip switch 2 is located at GLBDC..-..74.. bottom left corner of the main board. See figure 12-13. GLBDC..-..11.. -
Page 11: Normal Use / Charging
BASIC LED INDICATIONS Solid green light: ready for charging Green flash light: GLB Wallbox waiting for start signal from electric vehicle Shifting blue light intensity: charging Other LED indications: see User manual at www.pcelectric.at/de/info/emobility.html... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Product type All GLB models Standards / Directives IEC 61851-1 and IEC 61439-7 EMC Classification: 2014/30/EU Installation method: Wall Installation environment: Indoor / Outdoor Location type: Non-restricted Access Rated Voltage: 230V / 400V 50Hz Installation systems: TT, TN and IT systems Charging type: Mode 3 Charging method:... -
Page 13: Handover Report
HANDOVER REPORT Charging device for electric vehicles (EV) Version 07/2021 Modell GLB: GTB: Serial No: Software version: RFID-Reader: yes Communication Module: yes Location Street: Zip code/Place: Exact placement: (e.g.: carport, garage, outdoors, ...) Electrical installation Group Fuse (A): Supply line: Cable dimension: Cable length: Settings DIP-Switch... -
Page 14: Warranty Conditions
WARRANTY CONDITIONS EU COUNTRIES (EXCEPT SWEDEN) The product benefits from manufacturer´s warranty. The applicable warranty period must be stated in purchase documents from your supplier. The product must be installed by a certified installer / contractor. Proper installation, storage and operation conditions must be obtained. Warranties apply only to products installed in their original installation location. - Page 15 IK08 Manufacturer: Distribution: GARO AB PC Electric GmbH Box 203, SE–335 25 Gnosjö Diesseits 145, AT–4973 St. Martin i. I. Tel.: +46 (0) 370 33 28 00 Tel.: +43 (0) 7751 61220 Fax: +46 (0) 370 33 28 50 Fax: +43 (0) 7751 6969 info@garo.se office@pcelectric.at garo.se...
