Summary of Contents for extronics iWAP XN3
- Page 1 INSTALLATION AND OPERATING MANUAL...

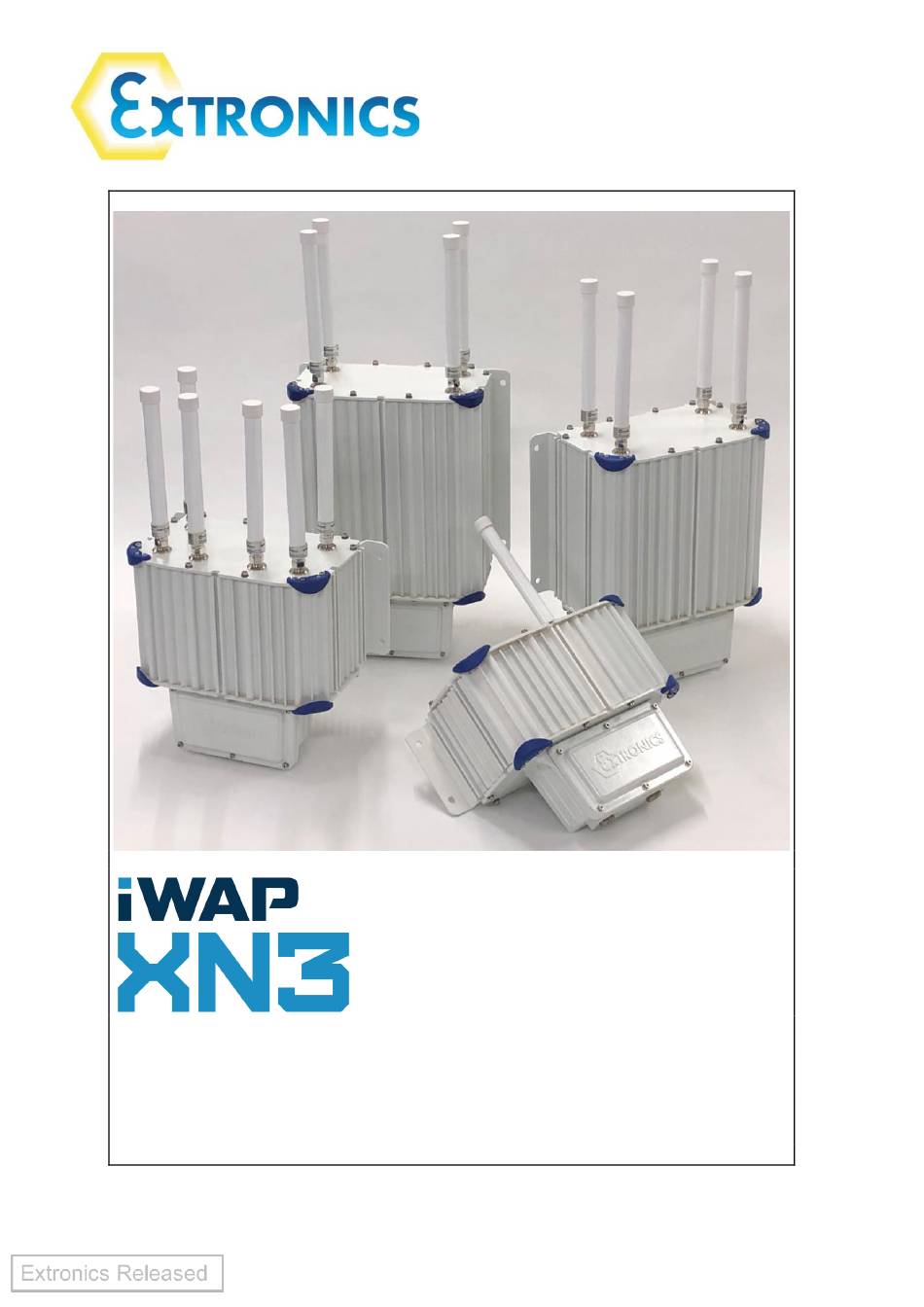

- Page 2 The Photograph on the front page shows the XN3 Aluminium Enclosure version. warranty information, refer Terms Conditions http://www.extronics.com © 2021 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
XN3 Installation and Operating Manual Contents Introduction ....................4 Safety Information and Notes ................5 Storage of this Manual ................5 Special Conditions for Safe Use / Conditions particulières d’utilisation ....5 2.2.1 ATEX/IECEx ....................5 2.2.2 MET ......................5 List of Notes ..................... -
Page 4: Introduction
Dust). Available in 4 different heights, designated Model 15, 24, 30 and 36, the iWAP XN3 will suit a wide range of equipment sizes, from a small (IIoT) device to an industrial access point with wireless gateway in the same enclosure. -
Page 5: Safety Information And Notes
XN3 Installation and Operating Manual 2 Safety Information and Notes 2.1 Storage of this Manual Keep this user manual safe and in the vicinity of the device. All persons required to work on or with the device should be advised on where the manual is stored. Conserver ce manuel d’utilisation en lieu sûr et à... -
Page 6: List Of Notes
14. Refer to Section 3.4 for details. The cover plate earth bond must not be removed. Avertissements! L’iWAP XN3 doit être mis à la terre. Il doit être raccordé au système de mise à la terre de l’installation, en utilisant au moins un des points externes de liaison à la terre, avec un conducteur d’un minimum de 4 mm2. - Page 7 See Section 3.2.2 for details. Contact Extronics for replacement bolts. Avertissements! La plaque de protection de l’iWAP XN3 ne doit être fixée qu’avec les boulons fournis et serrés à la valeur de couple correcte. Warning! The XN3 enclosure must only be fitted with suitably approved cable entry devices.
- Page 8 XN3 Installation and Operating Manual Avertissements! Ne pas dépasser la puissance RF seuil pour le groupe d’équipement, dans lequel le XN3 et ses antennes doivent être installés doit être contrôlé conformément à la norme CEI 60079-0. Warning! The XN3 must not be modified in any way. Warning! Hazardous voltages are present within the XN3 enclosure.
- Page 9 XN3 Installation and Operating Manual Warning! Internal cells or batteries if applicable must only be replaced with cells or batteries of the same type. Avertissements! Les cellules ou batteries internes, le cas échéant, ne doivent être remplacées que par des cellules ou batteries du même type.
-
Page 10: Installation
XN3 Installation and Operating Manual 3 Installation 3.1 Mounting Mount the XN3 enclosure to a suitable structure, using the mounting points shown. - Page 11 XN3 Installation and Operating Manual Figure 1: Aluminium Enclosure Mounting Dimensions...
-
Page 12: Opening And Closing The Enclosure
XN3 Installation and Operating Manual 3.2 Opening and Closing the Enclosure 3.2.1 Opening the front cover plate • Remove all bolts using a metric hex key. Store the bolts carefully to avoid damage or loss. • Ensure care is taken when removing the cover. Do not use a screwdriver or any other sharp implement to prise the cover apart as it may damage the sealing gasket. -
Page 13: Cable Entries
Remove cover plate and keep bolts for reassembly o When refitting cover plate, only use supplied bolts and tighten to torque 3.5Nm. Check seal position and condition. o Check with Extronics for more information if required. Figures 3: XN3 entries and connectors... -
Page 14: Earthing
XN3 Installation and Operating Manual 3.4 Earthing 3.4.1 Location of XN3 enclosure external earth bond points There are M6 threaded earth boss bonding point situated within the junction box, Figure 4. Removal of the front cover plate is required to access the area. Before putting in service: •... -
Page 15: Electrical Installation
XN3 Installation and Operating Manual 3.5 Electrical Installation View inside junction box: Interface Plate See Figure 6 and Table1. Figure 6: XN3 Internal Connections Showing All Options... -
Page 16: Power Supply / Input Connector
F Console port Alternative connection to E2 Maintenance / setup use only. Must not be used when iWAP XN3 is in service. Note* On some Access Points a USB Console port converter is supplied to enable a connection using AP specific maintenance cables. -
Page 17: Data Connections
XN3 Installation and Operating Manual 3.9 Data Connections 3.9.1 Copper Ethernet Information Check that the line speed of the switch port to which the XN3 is connected matches the XN3 port configuration, otherwise communication may not be established. If Copper Ethernet is specified, this will be terminated in a standard CAT5E RJ45 Socket on the front plate of the XN3, Position D in Figure 6. -
Page 18: Console Port
XN3 Installation and Operating Manual 3.9.4 Console Port There are two types of console port connectors that can be specified as below. Only one type is possible on the same unit. 3.9.4.1 RJ45 The console port is a standard Cisco RS232 configuration port on an RJ45 socket. The port for Cisco Access Points is 9600 baud, 8 data bits, no parity, 1 stop bit. - Page 19 XN3 Installation and Operating Manual Standard configuration Top mount antenna Intrinsically safe outputs. Minimum IP54 connection Bottom mount antenna Remote mounting Non-hazardous area Hazardous area Notes: Marking of iWAP Antenna installed to XN3 must be observed IEC 60079-14: 2014 when locating antenna in Clause 16.2.3 hazardous location Intrinsically...
-
Page 20: Antenna Requirements
Antennas connected to the XN3 Intrinsically Safe RF outputs must be assessed as ‘simple apparatus’ in accordance with IEC 60079-11. Antennas supplied by Extronics for use with the XN3 already meet these requirements. It is possible to assess other antennas for this purpose, contact Extronics for details. -
Page 21: Intended Purpose Usage
XN3 Installation and Operating Manual 4 Intended Purpose Usage The XN3 is built using modern components and is extremely reliable in operation. It must only be used for its intended purpose. Please note that the intended purpose also includes compliance with the instructions issued by the manufacturer for installation, setting up and service. -
Page 22: Pole Mounting
XN3 Installation and Operating Manual 5 Pole Mounting Using the clamp brackets (1) and (2) place them Align the pole mounting bracket (1) with the end together as shown. of the rail (2) and slide it down the rail as shown. Align the square nut (3) on one side and secure Align the fixing nut (3) and repeat the process. -
Page 23: Technical Data
XN3 Installation and Operating Manual 6 Technical Data... -
Page 24: Marking Information
Alternative ambient temperature ranges may be specified depending on the service temperature of installed equipment. • Alternative coding when Extronics iSOLATE501 is installed for DC isolation: II 3 (1) G Ex ec [ia Ga] nR IIC T6 Gc D Ex [ia Da] tc IIIC T85°C Dc •... -
Page 25: Met
Alternative ambient temperature ranges may be specified depending on the service temperature of installed equipment. • Alternative coding when Extronics iSOLATE501 is installed for DC isolation: o Class I, Zone 2 AEx ec [iaGa] nR IIC T6 Gc o Class II, Zone 22 AEx [iaDa] tc IIIB T85 C Dc •... -
Page 26: Type Codes
XN3 Installation and Operating Manual 8 Type Codes Refer to iWAP XN3 datasheet. The iWAP XN3 conforms to the following standards: 8.1.1 ATEX/IECEx • BS EN 60079-0: 2018 • BS EN 60079-7: 2015+A1:2018 • BS EN 60079-11: 2012 • BS EN 60079-15: 2019 •... -
Page 27: Eu Declaration Of Conformity
XN3 Installation and Operating Manual 9 EU Declaration of Conformity... - Page 28 XN3 Installation and Operating Manual...
