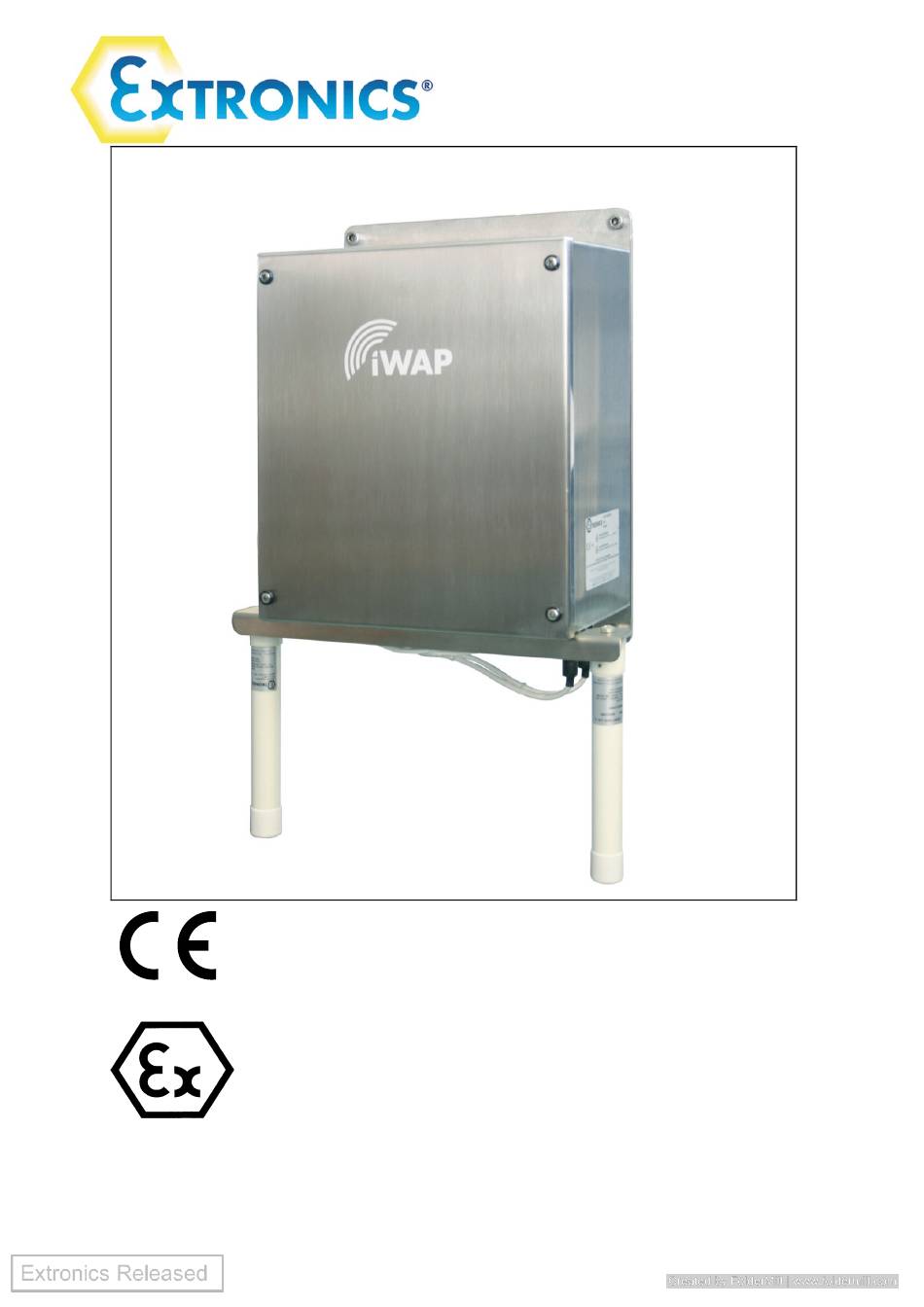

  • Page 1 Installation & Operating Manual iWAP200...
  • Page 2 Extronics reserve the right to change this manual and its contents without notice, the latest version applies. Warranty For full details of the Extronics warranty policy please go to the Company section of the Extronics website and download Terms and Conditions.
  • Page 3: Table Of Contents

    Operating Manual Contents Introduction ......................4 Safety Information and Notes ................5 Storage of this Manual ................... 5 ATEX Special Conditions of Safe Use ............5 List of Notes ....................5 Installation and Setting-to-Work ................8 Installation ..................... 8 3.1.1 Removing the cover ................
  • Page 4: Introduction

    WLAN network devices to be installed in hazardous areas. The Extronics iWAP200 is designed for use with one to four standard antennas or Extronics iANT200 series of intrinsically safe antennas for optimum coverage on Chemical Plants, Oil Refineries or Oil & Gas Platforms.
  • Page 5: Safety Information And Notes

    (EN60079-0, EN 60079- 14) as well as the Accident Prevention Regulations. Warning The iWAP200 must NOT be operated in ATEX Zone 0/20 or Zone 1/21 hazardous areas. Refer to the declaration of conformity for ATEX certificate information.
  • Page 6 When powering the iWAP200 via POE do not apply an external power supply to the protection board. Caution Never power the iWAP200 via POE if fans and/ or heaters are installed. Important Antenna connections must be sealed once installed to prevent the ingress of moisture.
  • Page 7 Do not exceed the Effective Isotropic Radiated Power (EIRP) limit for the country/region of operation Information For legacy reasons, the RF outputs of the iWAP200 remain approved in accordance with EN60079-15:2005 as Ex nL (energy limited), and the iWAP200 remains solely marked as such.
  • Page 8: Installation And Setting-To-Work

    Operating Manual 3 Installation and Setting-to-Work 3.1 Installation The iWAP200 is simple to install and can be secured directly to suitable surface using the mounting holes on the Enclosure. 3.1.1 Removing the cover Unscrew the four screws and remove the enclosure lid.
  • Page 9: Fitting The Cables

    3.1.3 Mains & PoE Variant Cable Installation Diagram 3.1.3.1 shows the connectors on the mains and PoE variant of the iWAP200. Table 3.1.3.2 describes the pin out connection required for operation. There are two blocks of screw terminals and one RJ45 connector. The Ethernet input screw terminals are wired in parallel with the RJ45 connector.
  • Page 10 RJ45 connector NOT both. Fibre Input Allows a fibre connection to be made to the iWAP200 The copper Ethernet input is board. The connector will be a ST connector for disabled if the fibre module...
  • Page 11: Fibre Ethernet Input

    When connecting the access point via a fibre connection do not use any of the two Ethernet inputs of connectors. To obtain greater wired link distances the iWAP200 can be shipped with an optional fibre module. The fibre module will be connected directly to the access point, the user should attach the fibre cable directly to the fibre module.
  • Page 12 NOT both. Fibre Input Allows a fibre connection to be made to the The copper Ethernet input is iWAP200 board. The connector will be a ST disabled if the fibre module is connector for multimode fibre input, or a SC fitted connector for single mode fibre Table 3.1.5.2 –...
  • Page 13: Fibre Ethernet Input

    When connecting the access point via a fibre connection do not use any of the two Ethernet inputs of connectors. To obtain greater wired link distances the iWAP200 can be shipped with an optional fibre module. The fibre module will be connected directly to the access point, the user should attach the fibre cable directly to the fibre module.
  • Page 14: Mounting The Antennas

    Warning Do not exceed the Effective Isotropic Radiated Power (EIRP) for the gas group in which the iWAP200 will be operating. The RF output of the transceiver will vary depending on the hardware and antenna used. The maximum hardware limit of the access point must be used to calculate the EIRP –...
  • Page 15: Setting To Work

    Important The iWAP200 is supplied fitted with anti-seize grease on the lid screws. Ensure that this is not removed during installation. See section 4.3.1 for maintenance details. Important Ensure that the lid gasket is clean and undamaged before fitting the lid.
  • Page 16: Intended Purpose Usage

    The user bears the sole risk in such cases. 4.1 Transportation and Storage All iWAP200 devices must be so transported and stored that they are not subjected to any excessive mechanical stresses. 4.2 Authorized Persons Only persons trained for the purpose are authorized to handle the iWAP200;...
  • Page 17: Surface Coating

    However, if ‘tea staining’ does occur, it is purely cosmetic and does not affect the performance of the enclosure. If the coating is damaged, it can easily be re-applied in the field. Contact Extronics for details. 4.4 Safety Precautions...
  • Page 18: Technical Data

    Radio Dependant upon chosen hardware Antennas To be used with up to 6 intrinsically safe antennas (not included) e.g. Extronics iANT200 series. Other antennas may be used provided they meet the Ex requirements, please contact Extronics for assistance ATEX Certification...
  • Page 19: Enclosure Dimensions

    Operating Manual 6 Enclosure Dimensions...
  • Page 20: Label Drawing

    TO MAINTAIN IP RATING TO MAINTAIN IP RATING Extronics Ltd 1 D alton Way, Midpoint 18, Middl ewic h, Cheshire C W10 0HU UK Extronics Ltd 1 D alton Way, Midpoint 18, Middl ewic h, Cheshire C W10 0HU UK...
  • Page 21: Type Codes

    Please note that in order to meet the requirements of the certification Extronics has to take the internal PCB's from the Access Point enclosure and make minor modifications to them. This will invalidate the warranty from the original manufacturer. If you wish the wireless network hardware to have a 12 month warranty like the iWAP200 enclosure system is supplied with then Extronics must supply the wireless hardware.
  • Page 22: Ec Declaration Of Conformity

    Operating Manual 9 EU Declaration of Conformity...
